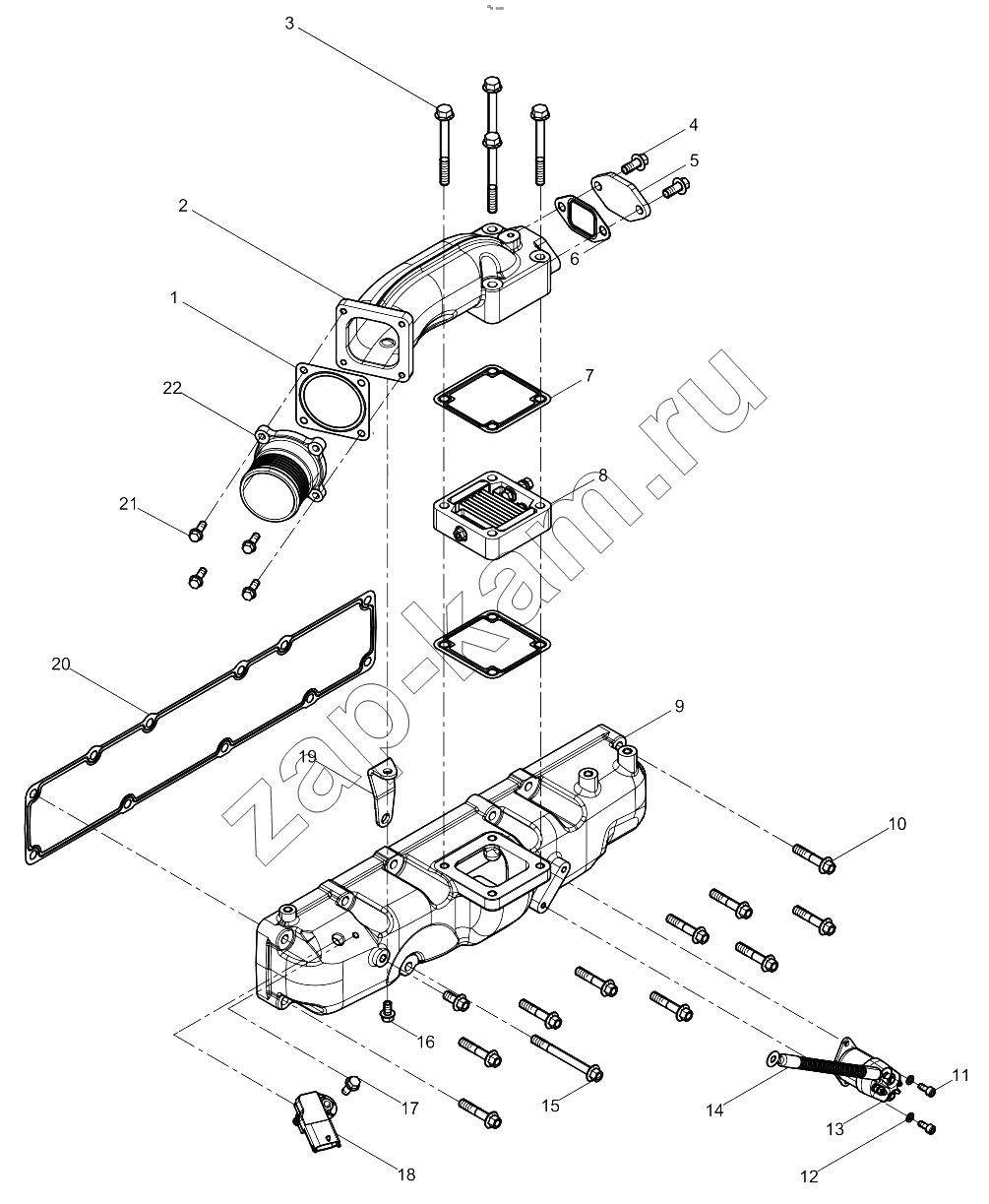

Intake Manifold Group
/ Weichai WP4.1 DHN4.1Q0006
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 410800110260 | Intake Throttle Gasket | 1; | |
| 2 | 1000509659 | Intake Connecting Pipe | 1; | |
| 3 | 90011400052 | Hexagon flange bolt, heavy series | 4; | |
| 4 | 9000000078 | Hexagon Flange Bolt | 3; | |
| 5 | 1000726906 | Intake Cover | 1; | |
| 6 | 1000519934 | Gasket for EGR Gas Exhaust Connecting Flange | 1; | |
| 7 | 1000509327 | Intake Manifold Gasket | 2; | |
| 8 | 1000615871 | Heater | 1; | |
| 9 | 1000932002 | Intake Manifold | 1; | |
| 10 | 9000000151 | Hexagon Flange Bolt | 10; | |
| 11 | 90013050027 | Inner hexagon screw | 2; | |
| 12 | 90003930241 | Small Series, Plain Washer, | 2; | |
| 13 | 612630080076 | Реле | 1; | |
| 14 | 612630080522 | Glow plug harness | 1; | |
| 15 | 9000000153 | Hexagon Flange Bolt | 1; | |
| 16 | 90011400011 | Hexagon Flange Bolt | 1; | |
| 17 | 90011400012 | Hexagon Flange Bolt | 1; | |
| 18 | 2220035 | Boost pressure and temperature sensor | 1; | |
| 19 | 1001015824 | Bracket | 1; | |
| 20 | 1000867950 | Intake Manifold Gasket | 1; | |
| 21 | 90011400013 | Hexagon Flange Bolt | 4; | |
| 22 | 1001191242 | Air intake takeover assembly | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
