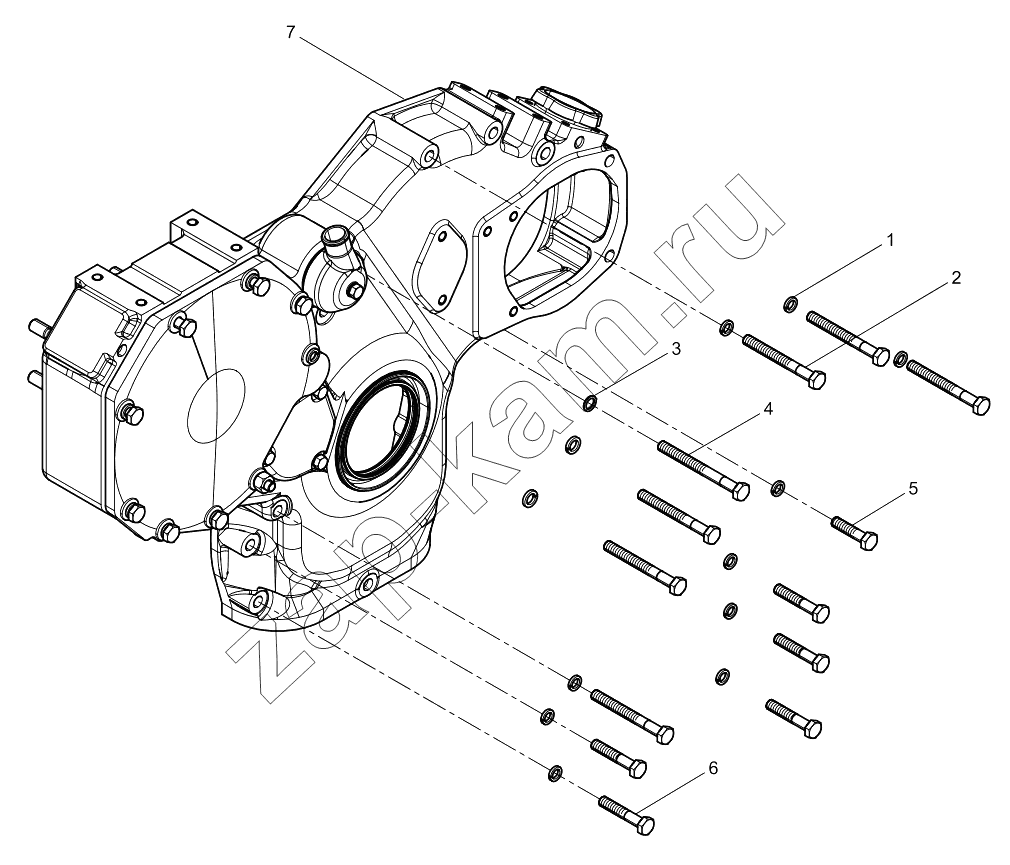

Front End Cover Group
/ Weichai WP4

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Crankcase assembly Crankcase assembly Front End Cover Group Front End Cover Subassembly Intermediate gear Rear Oil Seal Cover Assembly Rear Oil Seal Cover Set Nozzle Set Crankcase ventilation unit set Crankshaft Assembly Main Bearing Set Thrust Bearing Set Main Bearing Set Thrust Plate Set Crankshaft Pulley Assembly Hub assembly Piston and Connecting Rod Group Piston Assembly Piston Ring Set Connecting Rod Assembly Connecting Rod Bearing Set Cylinder Head Assembly Cylinder Head Subassembly Cylinder head set Intake and exhaust valve set Rocker arm stand assembly Rocker arm set Cylinder head cover set Camshaft Assembly Fuel Injection Pump Assembly Pipe joint Valve train assembly Oil Pump Group Oil filter assembly Oil Filter Seat Set Oil Cooler Assembly Intake Manifold Assembly Water Pump Group Water Pump Pulley Assembly Exhaust Manifold Group Flywheel Housing Group Alternator Bracket Assembly Hydraulic Pump Group Flywheel Assembly Flywheel Assembly Oil Pan Assembly High Pressure Fuel Pipe Group (-01) High Pressure Fuel Pipe Group (-02) High Pressure Pipe Assembly Tensioner And Belt Group Alternator Group Oil Strainer Group Oil pipe assembly of turbocharger Injector Return Pipe Group Fuel Injector Fuel Filter Assembly Fuel Filter Seawater/Fresh Water Heat Exchanger Assembly Oil Cooler Water pipe assembly Mass balancing system of order Assembly Secondary Balance Machanism Housing of Mass Balancing System of II Order Set Driving gear assembly Gear Shaft Set Intermediate plate Instrument Panel Assembly Turbocharger Accessory Group Starter Motor Group Cylinder head gasket Cooling water pipe group Shut-down Device Assembly Parts Box Group Packing Box Chassis Parts Group (-02) Packing Box Chassis Parts Group (-01)

1

2

3

4

5

6

7

Поз.	Артикул		Название детали	Кол-во
1	90003931102		Пружинная шайба	12;
2	90003800467		Болт	6;
3	13023357		Составная уплотняющая шайба	1;
4	90003800472		Hexagon Head Bolt	1;
5	90003800431		Болт с шестигранной головкой	1;
6	90003800441		Болт	5;
7	13066618		Front End Cover Subassembly	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
