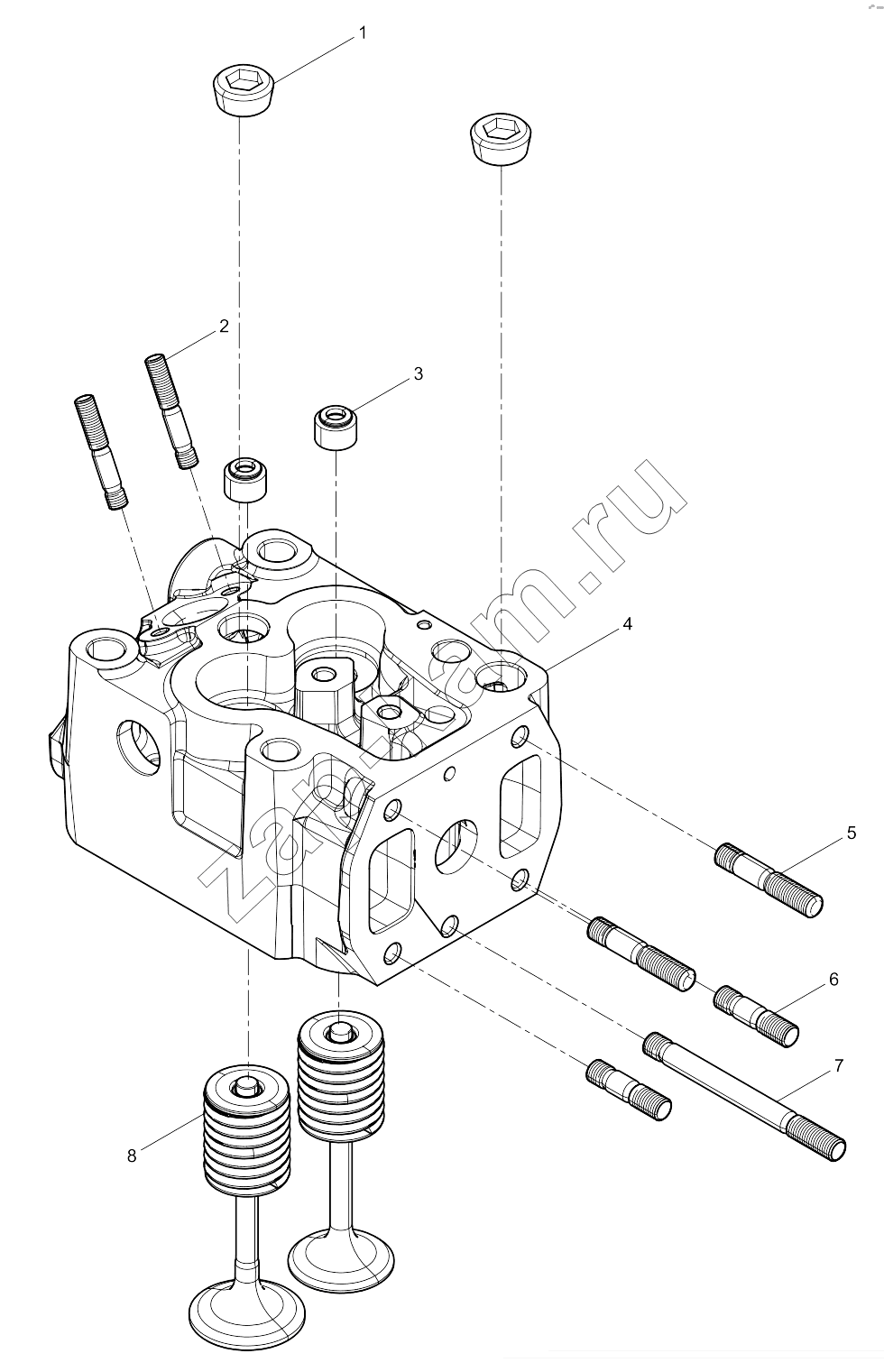

Cylinder head subassebly
/ Weichai WP6 DHB06G0131

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Cylinder block assembly Pre-Assembly Front wall cover assembly (gear end) Front wall cover subassembly (gear end) Piston cooling nozzle Crankcase ventilation device assembly Stud bolt Oil sump assembly Oil pan sub-assembly Crankshaft Group Main Bearing Set Main bearing set Main Bearing Set Thrust plate set Flywheel combination V belt pulley assembly with damper Hub set Piston and connecting rod assembly Piston and connecting rod assembly Piston and connecting rod group Connecting rod assembly Connecting Rod Bearing Set Cylinder head subassembly Cylinder head subassebly Intake and exhaust valve assembly Cylinder head set Rocker arm bracket assembly Rocker arm set Cylinder gasket Cylinder head cover group Camshaft group Valve train assembly Oil pump assembly Oil filter sub-assembly Oil cooler cap group Oil Inlet Pipe Assembly Turbocharger lubricating oil pipe assembly Fuel pump group Hose nipple Fuel injector assembly Injector fuel-return pipe set Fuel Filter Group Fuel Filter Fuel prefilter High-Pressure fuel pipe set High pressure pipe subassembly Pipe assembly Intake Manifold Subassembly Air filter Air filter mainbody Air Compressor Assembly Tensioner and belt asesmbly Water pump Intermediate block assembly Water Pump Pulley Assembly Inlet takeover assembly Cooling water pipe assembly Exhaust pipe assembly Silencer Group Exhaust gas turbocharger assembly Generator bracket Complete alternator 8/13m26.3 Starter assembly Flywheel housing group Parts kit group Dashboard assembly

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во
1	01104736		Шестигранная конусная резьбовая пробка	2;
2	90011520051		Double End Stud	2;
3	13023391		Уплотняющая гильза штока клапана	2;
4	13028589		Cylinder head set	1;
5	612600111428		Stud	2;
6	90011520049		Stud bolt	2;
7	90011520048		Double End Stud	1;
8	12214102		Intake and exhaust valve set	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
