5. Front wall cover assembly (gear end)

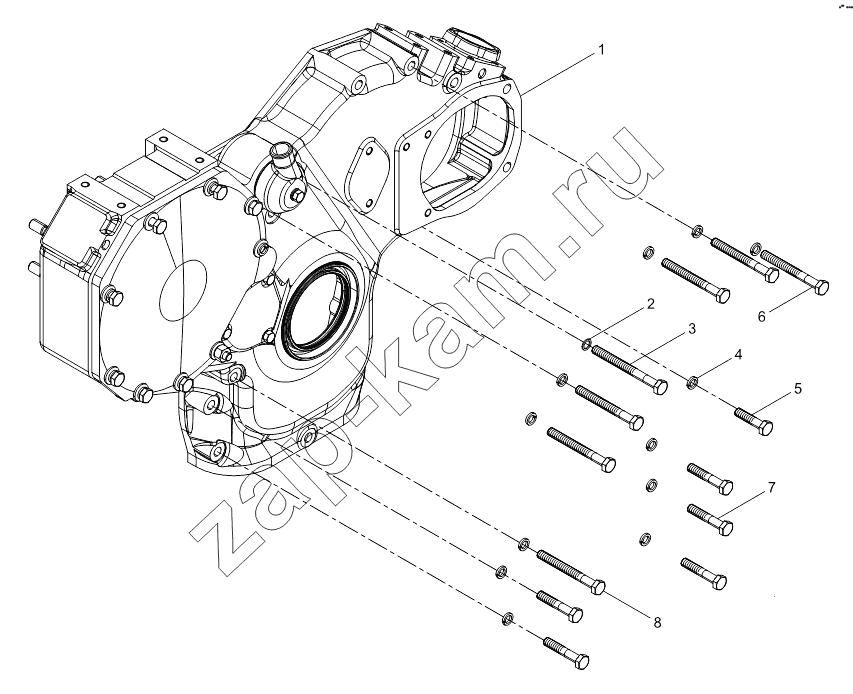

Front wall cover assembly (gear end)
/ Weichai WP6G125E22

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Cylinder block assembly Cylinder block subassembly Front wall cover assembly (gear end) Front wall cover subassembly (gear end) Intermediate gear Nozzle assembly Crankcase ventilation assembly Hydraulic pump cover assembly Oil pan assembly Oil pan sub-assembly Crankshaft Group Main Bearing Set Thrust main bearing bush assembly Main Bearing Set Thrust Plate Assembly Flywheel assembly Flywheel assembly V belt pulley assembly with damper Wheel hub assembly Piston and Connecting Rod Group Piston and Connecting Rod Group Piston assembly Connecting rod assembly Connecting Rod Bearing Set Cylinder head assembly Cylinder head subassembly Cylinder head assembly Rocker arm stand assembly Rocker subassembly Cylinder head cover assembly Camshaft assembly Valve train assembly Oil pump Oil filter assembly Oil filter seat subassembly Oil cooler assembly Oil inlet pipe assembly Supercharger lubricator assembly Injection pump assembly Injector assembly Injector Return Pipe Group Fuel filter assembly Fuel filter Fuel filter-water separator High Pressure Fuel Injection Pipe Group Air inlet pipe assembly Intake Manifold Subassembly Air filter assembly Air filter assembly Air filter body assembly Air compressor assembly Air compressor assembly Water pump assembly Intermediate pad assembly Water Pump Pulley Assembly Water inlet joint pipe assembly Cooling water pipe assembly Exhaust pipe assembly Muffler assembly Exhaust gas turbocharger assembly Alternator bracket assembly Generator Group Starter Motor Group Transfer case assembly Tank assembly Hydraulic Pump Group

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во	Цена
1	13039367		Front wall cover subassembly	1;	-
2	13023357		Составная уплотняющая шайба	1;	-
3	01111195		Шестиугольный головочный болт	1;	-
4	01177981		Пружинная шайба	13;	-
5	01139584		Шестиугольный головочный болт	1;	-
6	01111177		Шестиугольный головочный болт	1;	-
7	01111151		Шестиугольный головочный болт	5;	-
8	01111184		Шестиугольный головочный болт	5;	-
