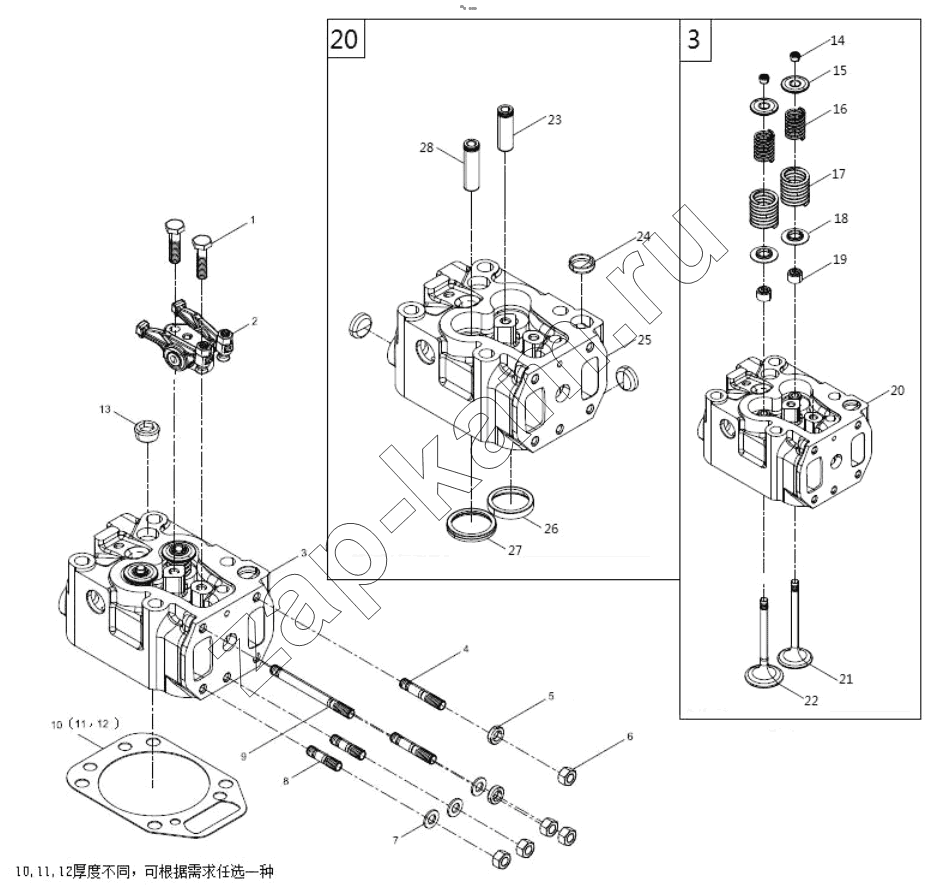

Cylinder head assembly
/ Weichai WP6G175E201
1
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 4110000054178 | Screw | 12; | |
| 2 | 4110000909141 | Rocker arm | 6; | |
| 3 | 4110000909092 | Cylinder head | 6; | |
| 4 | 4110002247038 | Stud | 12; | |
| 5 | 4110000054040 | Washer | 12; | |
| 6 | 4110000054138 | Nut | 30; | |
| 7 | 4110000846040 | Washer | 18; | |
| 8 | 4110000054281 | Stud | 12; | |
| 9 | 4110000846006 | Stud | 6; | |
| 10 | 4110000057001 | Gasket | 6; | |
| 11 | 4110000057002 | Gasket | 1; | |
| 12 | 4110000057003 | Gasket | 1; | |
| 13 | 4110000054211 | Plug | 12; | |
| 14 | 4110000054244 | Clamp | 1; | |
| 15 | 4110000054240 | Spring seat | 1; | |
| 16 | 4110000054237 | Valve spring | 1; | |
| 17 | 4110000054238 | Valve spring | 1; | |
| 18 | 4110000054239 | Spring seat | 1; | |
| 19 | 4110000054243 | Sealing sleeve | 1; | |
| 20 | 4110000846116 | Cover parts | 1; | |
| 21 | 4110000054215 | Exhaust valve | 1; | |
| 22 | 4110000054096 | Inlet valve | 1; | |
| 23 | 4110000054242 | Valve guide | 1; | |
| 24 | 4110001525014 | Plug | 1; | |
| 25 | 4110001948027 | Cylinder head | 1; | |
| 26 | 4110000054216 | Valve seat | 1; | |
| 27 | 4110000054097 | Valve seat | 1; | |
| 28 | 4110000054241 | Valve guide | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
