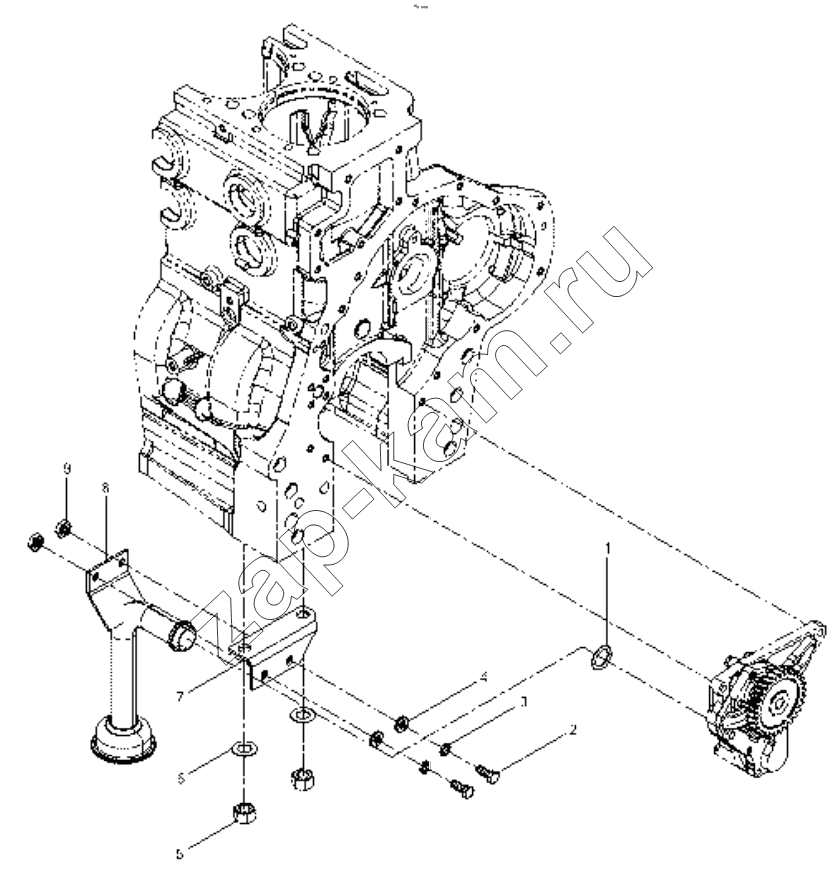

Oil inlet pipe assembly
/ Weichai WP6G175E201

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine block group Cylinder block subassembly Timing gear box group Timing gear cover group Intermediate gear Nozzle assembly Crankcase ventilation device assembly Hydraulic pump cover assembly Oil pan group Crankshaft assembly Main bearing set Thrust main bearing bush assembly Main bearing set Thrust plate assembly Flywheel assembly Flywheel assembly V belt pulley assembly with damper Hub Piston and connecting rod group Piston and connecting rod group Piston assembly Connecting rod assembly Connecting rod bearing set Cylinder head assembly Cylinder head subassembly Cylinder head group Rocker arm stand assembly Rocker arm subassembly Cylinder head cover group Camshaft assembly Valve mechanism assembly Oil pump Tensioner and belt group Oil cooler assembly Oil cooler assembly Oil inlet pipe assembly Oil pipe assembly of turbocharger Fuel injection pump group Injector assembly Injector return pipe group Fuel filter group Fuel filter High pressure fuel injection pipe group Air inlet pipe assembly Intake manifold subassembly Air filter group Air filter Air compressor assembly Air compressor assembly Water pump assembly Adapter assembly Water pump pulley assembly Water interlet joint pipe assembly Exhaust manifold assembly Silencer group Turbocharger assembly Generator bracket group Generator group Starter motor group Pto assembly Pto subassembly Electromagnet assembly Hydraulic pump group Parts box group Packing box chassis parts group Fuel filter-water separator Service kit Cylinder head kit Rocker arm kit Cylinder liner kit Piston kit Camshaft bearing kit Connecting rod kit Main bearing kit Oil sump Nozzle Sealing ring kit

1

2

3

4

5

6

7

8

9

Поз.	Артикул		Название детали	Кол-во	Цена
1	4110000054006		O-ring	1;	-
2	4110000054168		Screw	2;	-
3	4110000054023		Washer	2;	-
4	4110000054033		Washer	2;	-
5	4110000846003		Nut	2;	-
6	4110000846043		Spring washer	2;	-
7	4110000846067		Angle plate	1;	-
8	4110001949024		Oil filter	1;	-
9	4110000560291		Nut	2;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
