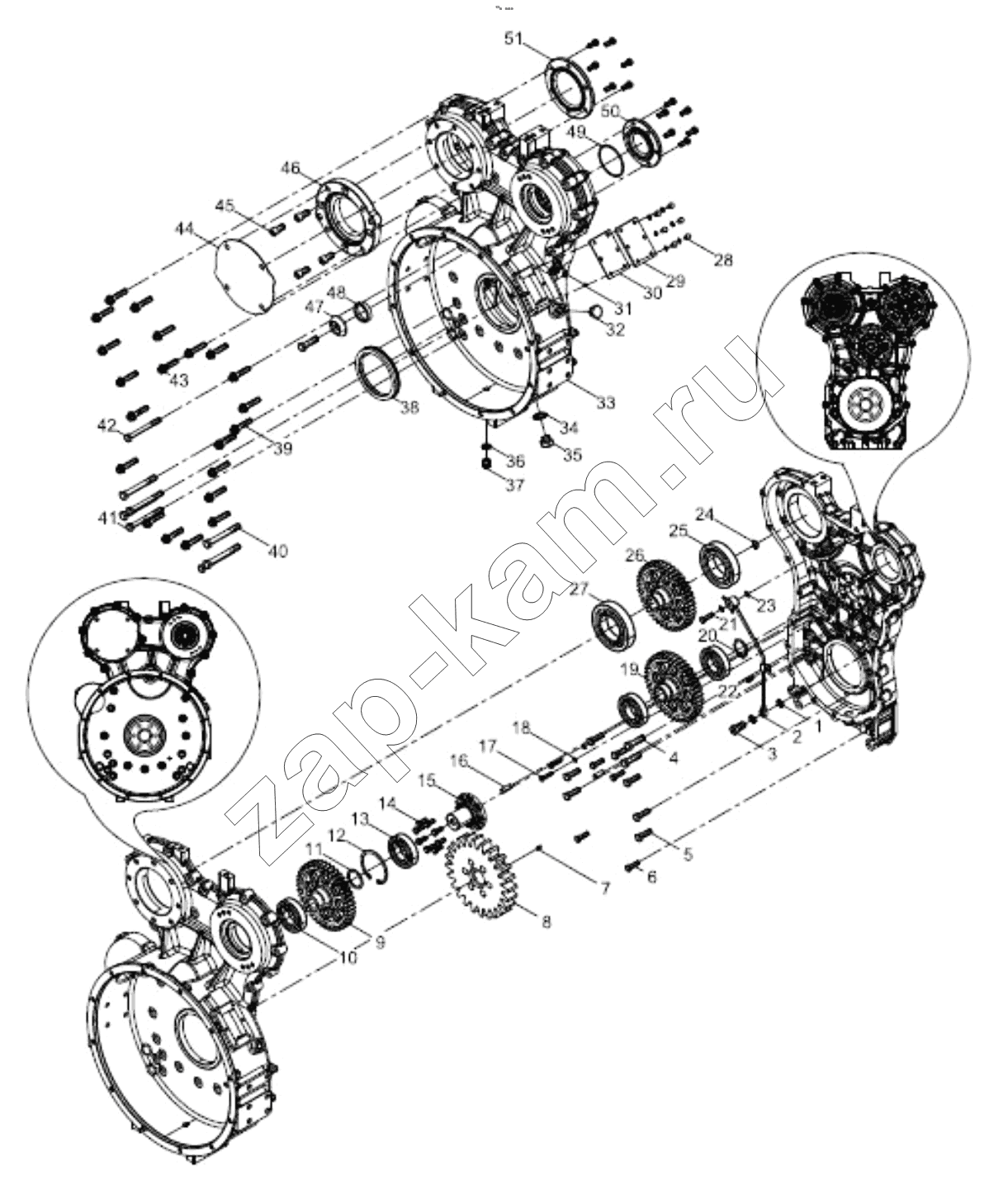

Pto assembly
/ Weichai WP6G175E201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 4110001525019 | Gasket | 2; | - | |
| 2 | 4110001948100 | Pipe | 1; | - | |
| 3 | 4110000054109 | Eye bolt | 1; | - | |
| 4 | 4110000846012 | Screw | 3; | - | |
| 5 | 4110000054158 | Screw | 7; | - | |
| 6 | 4110001949031 | Screw | 4; | - | |
| 7 | 4110000054031 | Spring pin | 1; | - | |
| 8 | 4110000909165 | Gear | 1; | - | |
| 9 | 4110000909156 | Gear | 1; | - | |
| 10 | 4110001949041 | Roller bearing | 1; | - | |
| 11 | 4110002122048 | Washer | 1; | - | |
| 12 | 4110002122019 | Retaining ring | 1; | - | |
| 13 | 4110001949043 | Bearing | 3; | - | |
| 14 | 4110001985010 | Screw | 20; | - | |
| 15 | 4110000909162 | Shaft | 1; | - | |
| 16 | 4110001949040 | Pin | 2; | - | |
| 17 | 4110001949026 | Screw | 2; | - | |
| 18 | 4110001654005 | Spring washer | 8; | - | |
| 19 | 4110001949044 | Gear | 1; | - | |
| 20 | 4110001949038 | Retaining ring | 1; | - | |
| 21 | 4110000924163 | Screw | 1; | - | |
| 22 | 4110002122020 | Screw | 1; | - | |
| 23 | 4110001867306 | Sealing ring | 2; | - | |
| 24 | 4110001949036 | Retaining ring | 1; | - | |
| 25 | 4110000909116 | Ball bearing | 1; | - | |
| 26 | 4110000909008 | Gear | 1; | - | |
| 27 | 4110000909149 | Roller bearing | 1; | - | |
| 28 | 4110002122024 | Screw | 6; | - | |
| 29 | 4110000054061 | Cover plate | 1; | - | |
| 30 | 4110000846100 | Washer | 1; | - | |
| 31 | 4110001948103 | Rivet | 1; | - | |
| 32 | 4110001949015 | Plug | 1; | - | |
| 33 | 4110001949023 | Power take-off | 1; | - | |
| 34 | 4110000054339 | Sealing ring | 1; | - | |
| 35 | 4110000054149 | Plug | 1; | - | |
| 36 | 4110000556130 | Sealing ring | 1; | - | |
| 37 | 4110000846029 | Plug | 1; | - | |
| 38 | 4110000846035 | Sealing ring | 1; | - | |
| 39 | 4110001948144 | Screw | 20; | - | |
| 40 | 4110002122025 | Screw | 4; | - | |
| 41 | 4110002122026 | Screw | 2; | - | |
| 42 | 4110002122027 | Screw | 2; | - | |
| 43 | 4110001948145 | Screw | 1; | - | |
| 44 | 4110001948098 | Protecting cover | 1; | - | |
| 45 | 4110001525008 | Screw | 4; | - | |
| 46 | 4110001948097 | Cover | 1; | - | |
| 47 | 4110002122041 | Retaining ring | 1; | - | |
| 48 | 4110002122031 | Retaining ring | 1; | - | |
| 49 | 4110001948146 | O-ring | 1; | - | |
| 50 | 4110001948099 | Cover | 1; | - | |
| 51 | 4110001948096 | Cover | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
