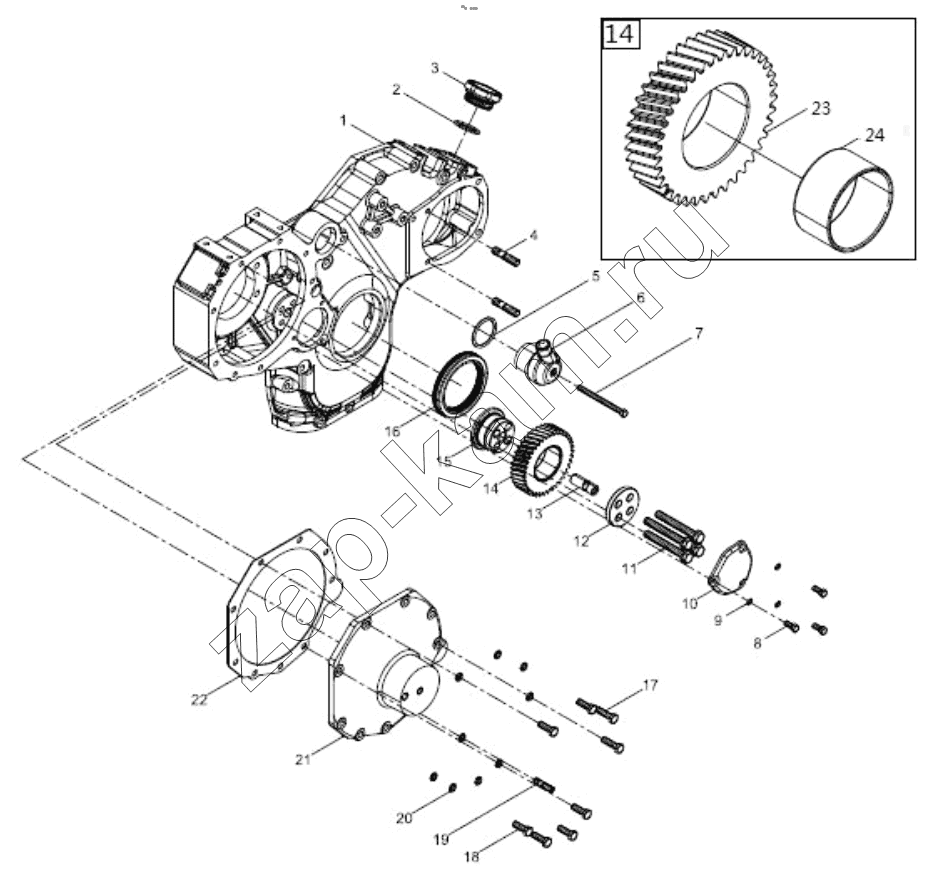

Timing gear cover group
/ Weichai WP6G175E201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 4110001948011 | Cover | 1; | - | |
| 2 | 4110000054007 | O-ring | 1; | - | |
| 3 | 4110000054145 | Plug | 1; | - | |
| 4 | 4110000054282 | Stud | 2; | - | |
| 5 | 4110000054008 | O-ring | 1; | - | |
| 6 | 4110000846061 | Breather cap | 1; | - | |
| 7 | 4110000054165 | Screw | 1; | - | |
| 8 | 4110000846015 | Screw | 3; | - | |
| 9 | 4110000054194 | Sealing ring | 3; | - | |
| 10 | 4110000846057 | Cover | 1; | - | |
| 11 | 4110000846097 | Screw | 4; | - | |
| 12 | 4110000846045 | Plate | 1; | - | |
| 13 | 4110000846158 | Shaft | 1; | - | |
| 14 | 4110000846154 | Gear | 1; | - | |
| 15 | 4110000846155 | Flange | 1; | - | |
| 16 | 4110000054100 | Sealing ring | 1; | - | |
| 17 | 4110000054170 | Screw | 2; | - | |
| 18 | 4110000054168 | Screw | 6; | - | |
| 19 | 4110000054279 | Stud | 1; | - | |
| 20 | 4110000054023 | Washer | 9; | - | |
| 21 | 4110001948013 | Cover | 1; | - | |
| 22 | 4110000846047 | Gasket | 1; | - | |
| 23 | 4110000909155 | Idler wheel | 1; | - | |
| 24 | 4110000909158 | Idler wheel bushing | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
