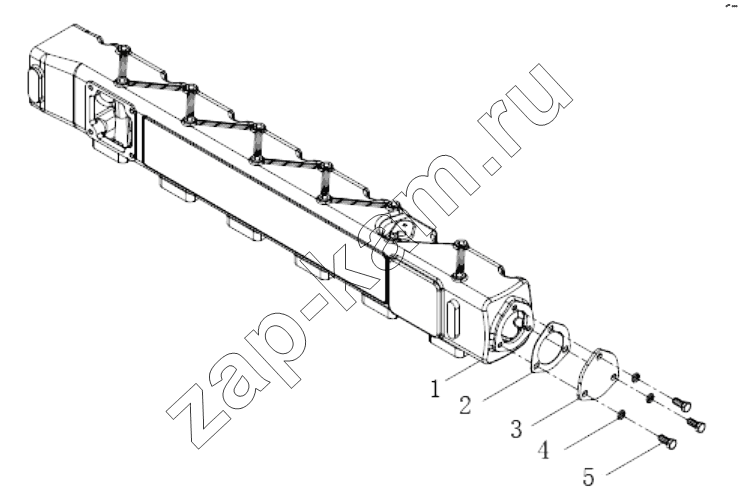

Intake pipe assembly
/ Weichai WP7

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Body binding group Thrust film pay Cylinder block pre-assembly Crankshaft combination Crankshaft assembly Piston connecting rod combination Piston ring assembly Connecting rod assembly Cylinder head combination Cylinder head sub-assembly Cylinder head cover assembly Gas distribution mechanism combination group Rocker shaft assembly Exhaust rocker arm assembly Intake rocker arm assembly Camshaft assembly Intermediate gear assembly Oil pump combination Oil cooler combination Oil cooler assembly Common Rail System Combination Group High pressure oil pump combination Injector combination High-pressure tubing assembly High-pressure tubing assembly Starter assembly Engine hanger Front cover combination group Oil-gas separator combination group Dipstick combination Oil dipstick and dipstick tube assemblies Oil scale assembly Adding oil pipe combination group Flywheel housing combination Flywheel combination Flywheel assembly Crankshaft pulley combination Outlet pipe combination group Water pump combination Tensioner and belt combination Engine oil filter combination Oil filter combination Fuel filter combination Fine filter Low-pressure fuel pipe assembly Electrical control harness and sensor combination group Generator combination Intake pipe combination Intake pipe assembly Exhaust pipe combination group Supercharger combination group Turbocharger lube oil pipe combination Compressor pipeline combination group Compressor combination Hydraulic pump combination Oil pan combination Oil pan assembly Engine bracket combination group Parts box combination Starter connector assembly Hole diagnostic interface connector Primary fuel filter water level sensor connector Vehicle 94-hole connector assembly Connector Primary fuel filter Packing box chassis parts combination group Fuel System Protector Random single shot parts combination group Engine mount system Engine exhaust system Engine cooling system and air intake system

1

2

3

4

5

Поз.	Артикул		Название детали	Кол-во
1	610800110234		Intake manifold	1;
2	612600110456		Шайба	1;
3	612600112469		Cover shield	1;
4	90003931102		Пружинная шайба	3;
5	90003802419		Винт (под угольник)	3;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
