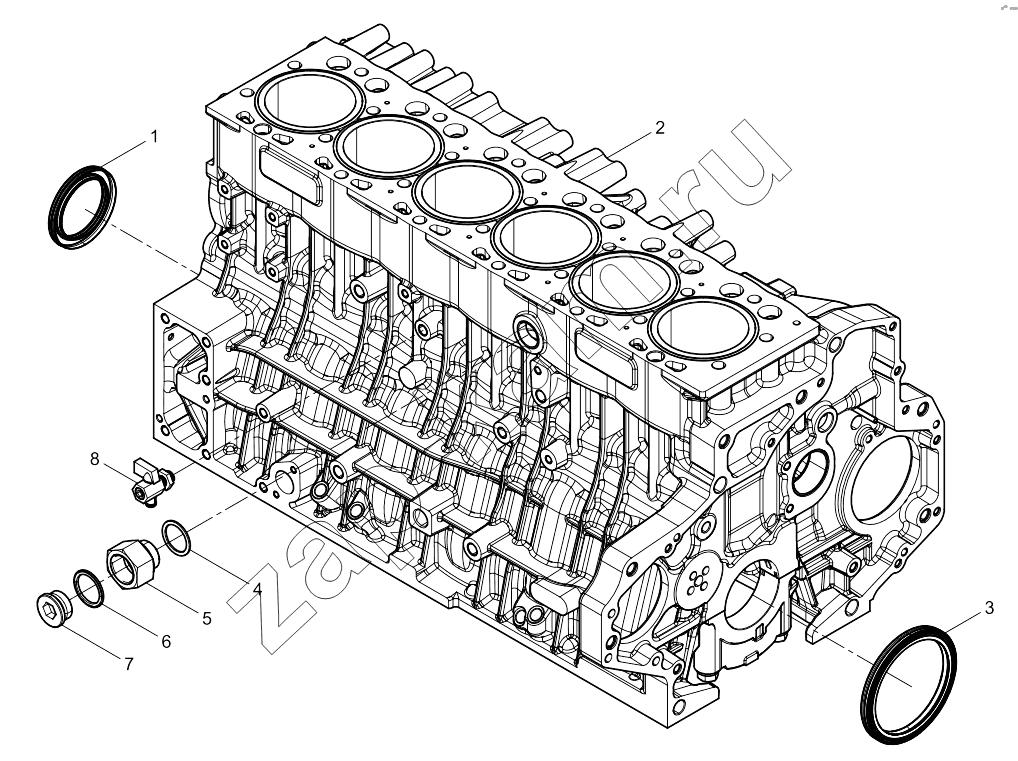

Engine Block Group
/ Weichai WP7.300E51

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Cylinder Block Preassembly Nozzle Set Flywheel Housing Group Gasket Engine Block Reinforcing Plate Group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Main Bearing Set Thrust Plate Group Thrust Plate Set Flywheel Group Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Assembly Cylinder Head Subassembly Engine Hanger Plate Group Cylinder head cover set Oil filling port cover assembly Valve Train Group Integrated Rocker Arm Shaft Assembly Intake Rocker Arm Set Exhaust Rocker Arm Set Camshaft Assembly Gear Drive Group Idler Gear Assembly Idler Gear Set Crankshaft Pulley Group Oil Pan Group Oil Pan Assembly Dipstick Group Dipstick Assembly Oil Pump Group Oil Strainer Group Oil Cooler Group Oil Cooler Assembly Oil filter assembly Oil Filling Tube Group Oil-gas Separator Group Water Pump Group Water Outlet Pipe Group Rotating Centrifugal Lubricating Oil Filter group High Pressure Pump Group Fuel Injector Group Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Fine Filter Fuel Coarse Filter High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Common Rail Group Intake Manifold Group Intake Manifold Assembly Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Exhaust Manifold Group Air Compressor Group Air Compressor Assembly Hydraulic Pump Group Tensioner And Belt Group Starter Assembly Engine Bracket Group Separate Delivery Parts Group Attached to Engine Integrated Urea Tank Assembly Urea Tank Assembly SCR Box Assembly Parts Box Group Fuel System Protector Connector Assembly Connector Connector Assembly Connector Assembly Connector Assembly Starting relay Conneting parts Connector Vehicle Connector Electronic Control Unit Group Electronic Control System Harness Group Alternator Group

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во
1	610800010037		Oil seal	1;
2	1000531295		crankcase assembly	1;
3	610800010027		Rear oil seal	1;
4	90014400021		Sealing Washer	1;
5	1000966774		Water Pipe Connector	1;
6	612600150106		Прокладка уплотнительная	1;
7	9000000483		Hexagon Taper Screw Plug	1;
8	13039332		Water Draining Valve	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
