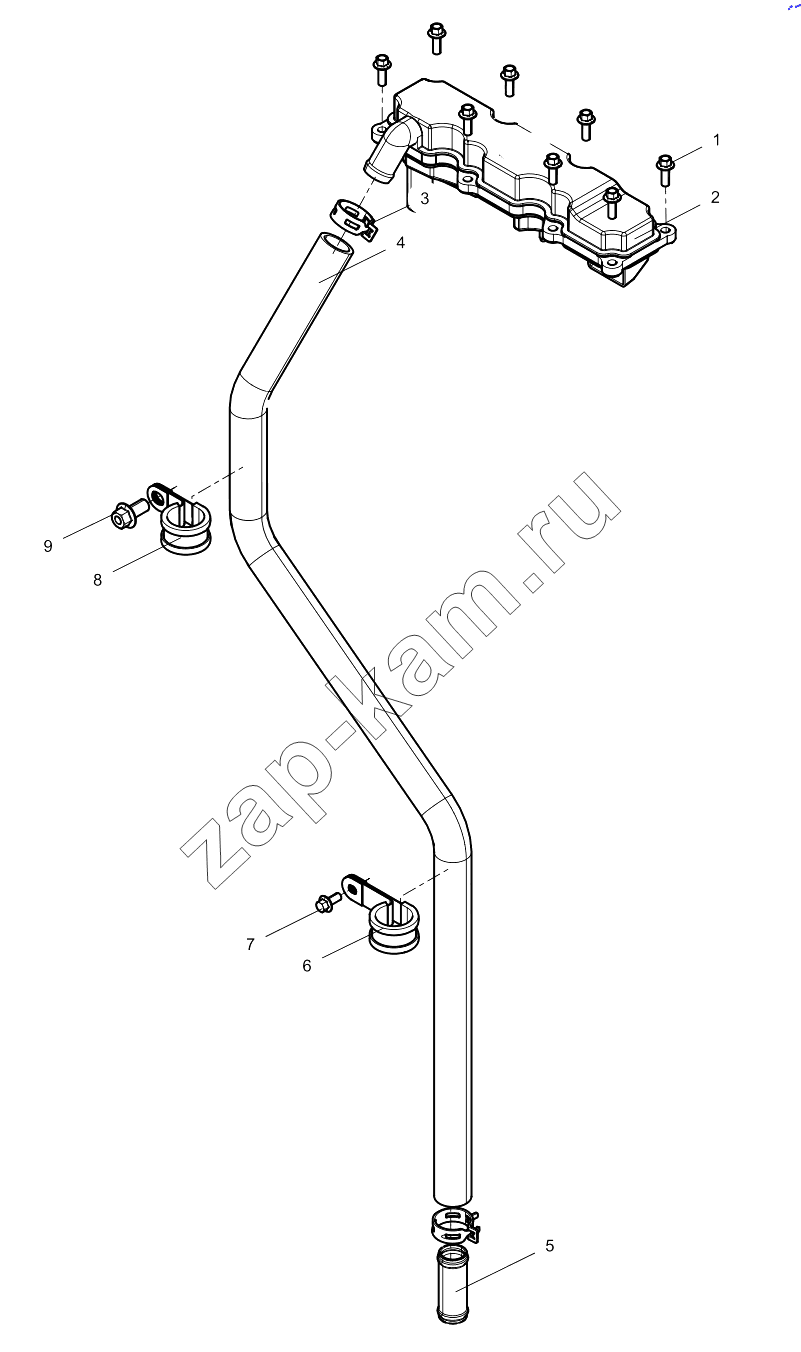

Oil-gas Separator Group
/ Weichai WP7H DHH07G0013

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Oil Seal Group Spray Nozzle Group Piston Nozzle Assembly Flywheel Housing Group Gear Housing Group Front End Cover Group Crankshaft Group Main Bearing Group Thrust Plate Group Flywheel Group Flywheel Assembly Piston and Connecting Rod Group Connecting Rod Assembly Cylinder Head Group Cylinder Head Assembly Cylinder Head Subassembly Lift Lug Group Cylinder Head Cover Group Oil Filler Cover Assembly Oil-gas Separator Group Valve Train Group Gear Drive Group Idler Gear Assembly Idler Gear Assembly Idler Gear Assembly Camshaft Timing Gear Set Idler Gear Assembly Crankshaft Pulley Group Water Pump Tensioner and Belt Group Alternator Tensioner and Belt Group Air Conditioning Compressor Tensioner and Belt Group Oil Pan Group Oil Dipstick Group Oil Pump Group Oil Strainer Group Suction Strainer Set Oil Filling Tube Group Water Pump Group Water Pump Inlet Pipe Group Water Pipe Connector Group Venting Pipe Group Thermostat Group Fan Bracket Group Fan Flange Group Fuel Injection Pump Group Fuel Injection Pump Oil Pipe Group Fuel Injector Group Fuel Injector Low Pressure Fuel Pipe Group High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Common Rail Group Common Rail Electronic Control Unit Group Intake Manifold Group Intake Connecting Pipe Group Intake Heating Relay Group Turbocharger Group Turbocharger Oil Pipe Group Turbocharger Compressor Air-Outlet Pipe Group Exhaust Manifold Group Exhaust Manifold Heat Shield Assembly Exhaust Manifold Heat Shield Assembly Exhaust pipe liner assembly (exhaust pipe liner assembly) Exhaust Tail Pipe Group Exhaust Connecting Pipe Heat Shield Assembly Silencer Group Silencer Bracket Group Air Conditioning Compressor Bracket Group Packing Box Chassis Parts Group Fuel Filter Group Fuel Filter Assembly Parts Kit Group Electronic Control System Harness Group Alternator Group Alternator Bracket Group Starter Motor Group Oil Filter Group Oil Filter Oil Cooler Group Oil Cooler Assembly Oil Cooler Heat Shield Group

1

2

3

4

5

6

7

8

9

Поз.	Артикул		Название детали	Кол-во
1	9000000328		Hexagon Flange Bolt	8;
2	1009083513		Oil-gas Separator Assembly	1;
3	9000000307		Hoses Clamp	2;
4	1007839596		Oil-gas Separator Air-outlet Pipe	1;
5	1007096429		Pipe	1;
6	1006635732		Pipe Clamp Assembly	1;
7	9000000112		Hexagon Flange Bolt	1;
8	1006635432		Pipe Clamp Assembly	1;
9	9000000734		Hexagon Flange Bolt	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
