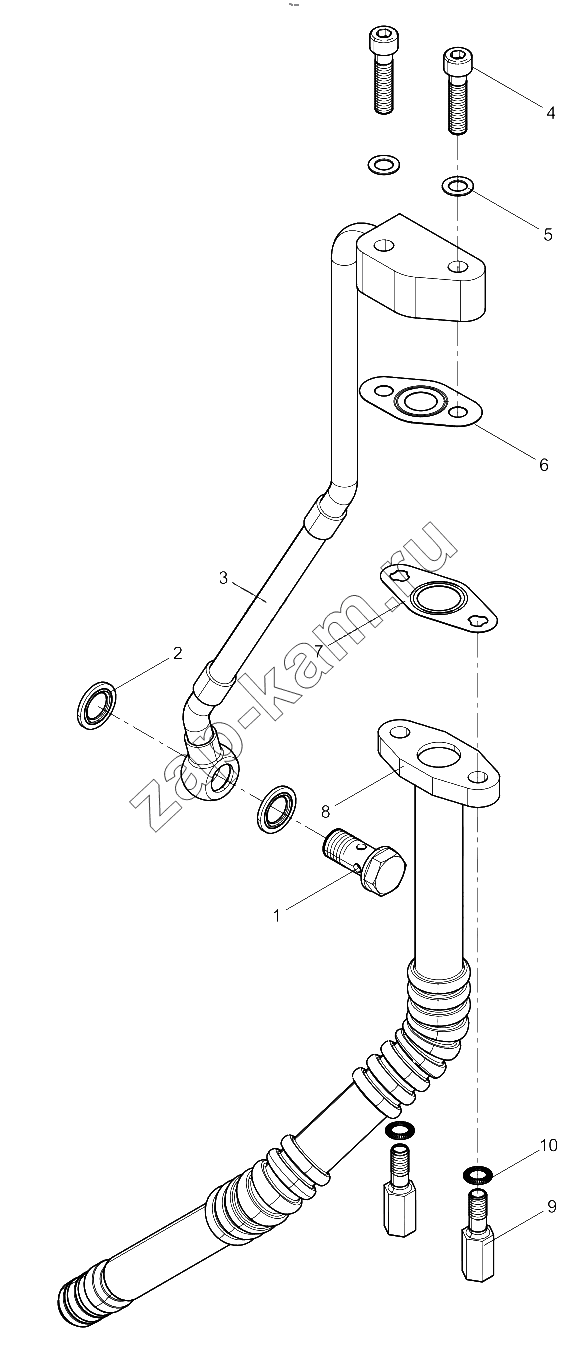

Turbocharger Oil Pipe Group
/ Weichai WP8 DHP08Q0162

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Oil Seal Group Spray Nozzle Group Piston Nozzle Assembly Flywheel Housing Group Flywheel Group Engine Block Reinforcing Plate Group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Main Bearing Group Thrust Plate Group Thrust Plate Set Piston and Connecting Rod Group Connecting Rod Assembly Piston Ring Set Cylinder Head Group Cylinder Head Assembly Cylinder Head Subassembly Lift Lug Group Cylinder Head Cover Group Oil Filler Cover Assembly Oil-gas Separator Group Valve Train Group Integrated Rocker Arm Shaft Assembly Exhaust Rocker Arm Set Intake Rocker Arm Set Camshaft Assembly Gear Drive Group Idler Gear Set Crankshaft Pulley Group Oil Pan Group Oil Pan Assembly Oil Dipstick Group Dipstick Assembly Dipstick Set Oil Pump Group Oil Strainer Group Lubricating Oil Suction Strainer Oil Cooler Group Oil Cooler and Filter Assembly Pressure-limiting Valve Group Water Pump Group Water Pump Inlet Pipe Group Water Outlet Pipe Group Ferrule Straight Through Connector Venting Pipe Group Thermostat Group Fan Bracket Group Fan and Hub Group Fuel Injection Pump Group Fuel Injection Pump Oil Pipe Group Fuel Injector Group Fuel Injector Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Filter Assembly High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Common Rail Group Common Rail Intake Manifold Group Intake Manifold Assembly Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Exhaust Manifold Group Exhaust Manifold Heat Shield Assembly Exhaust Manifold Heat Shield Assembly Exhaust Manifold Heat Shield Assembly Rear Exhaust Manifold Group Air Compressor Group Air Compressor Assembly Hydraulic Pump Group Tensioner And Belt Group Starter Motor Group Engine Bracket Group Packing Box Chassis Parts Group Fuel System Protector Separate Delivery Parts Group Attached to Engine SCR Box Assembly Urea Nozzle Integrated Urea Tank Assembly Urea Tank Assembly Urea Tank Sensor Urea Pump Cooling Water Solenoid Valve Direct Delivery Parts Group Air Filter Air Filter Body Parts Kit Group Parts Kit Group Connector Connector Assembly Connector Assembly Electronic Control Unit Group Electronic Control System Harness Group Alternator Group Alternator Bracket Group

1

2

3

4

5

6

7

8

9

10

Поз.	Артикул		Название детали	Кол-во
1	01119243		Пустотелый болт	1;
2	1001063342		Assembled Sealing Washer	2;
3	1002109664		Turbocharger Oil Pipe Assembly	1;
4	90013550001		Inner hexagon screw	2;
5	90003932023		Шайба пружинная	2;
6	612600115573		Turbocharger Oil Pipe Gasket	1;
7	1003412924		Turbocharger Oil Pipe Gasket	1;
8	1002109666		Turbocharger Oil Pipe Assembly	1;
9	61460070014		Болт	2;
10	188250083		Шайба	2;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
