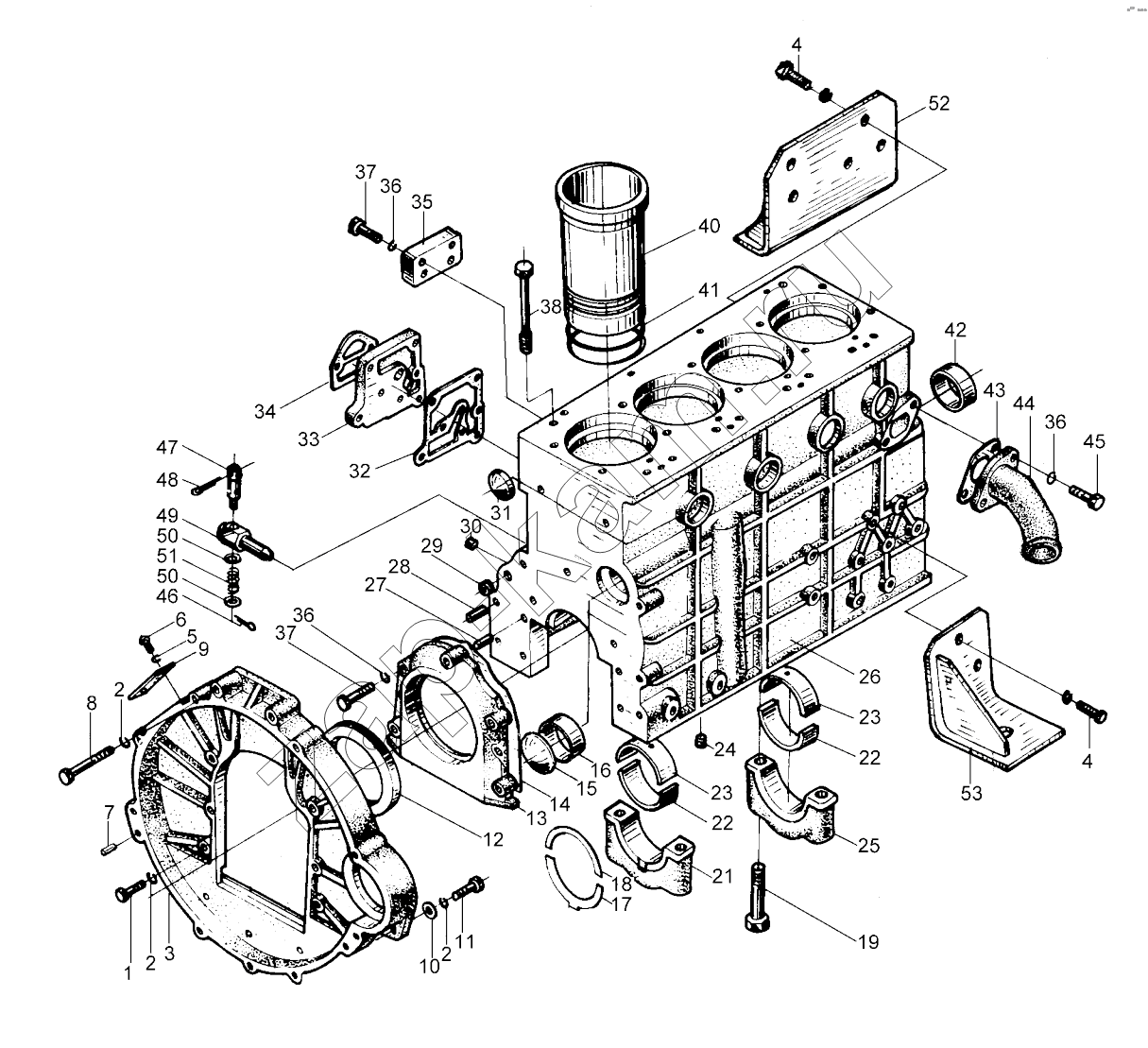

Cylinder block flywheel housing assembly
/ XINCHAI 490BPG
1
2
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
36
37
37
38
38
38
38
40
41
42
43
44
45
46
47
48
49
50
50
51
52
53
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | GB/T5782-2000 | Bolt | 8; | |
| 2 | GB/T93-1987 | Spring washer | 10; | |
| 3 | 490В-13001А | Flywheel housing | 1; | |
| 4 | GB/T5783-2000 | Bolt | 8; | |
| 5 | GB/T93-1987 | Spring washer | 2; | |
| 6 | GB/T67-2000 | Screw | 2; | |
| 7 | GB/T120-2000 | Pin | 2; | |
| 8 | GB/T5782-2000 | Bolt | 2; | |
| 9 | 490В-13003 | Cover, inspection hole | 1; | |
| 10 | GB/T848-1985 | Washer | 8; | |
| 11 | GB/T5782-2000 | Bolt | 2; | |
| 12 | Oil seal 100x125x12 | Oil seal | 1; | |
| 13 | 490В-01024А | Oil seal seat | 1; | |
| 14 | 490В-01025 | Gasket | 1; | |
| 15 | 490В-01009 | Plug | 1; | |
| 16 | 490В-01008 | Bushing | 1; | |
| 17 | 490В-01022 | Lower thrust bushing | 2; | |
| 18 | 490В-01026 | Upper thrust bushing | 2; | |
| 19 | 490В-01019А | Bolt | 10; | |
| 21 | 490В-01023 | Rear main bearing cover | 1; | |
| 22 | 490В-01033 | Lower half, ain bearing | 5; | |
| 23 | 490В-01034 | Upper half, main bearing | 5; | |
| 24 | 490В-01027 | Plug | 1; | |
| 25 | 490B-01032 | Main bearing cover | 4; | |
| 26 | 490B-01001 | Cylinder body | 1; | |
| 27 | GB/T119-2-2000 | Pin | 2; | |
| 28 | GB/T119-2-2000 | Pin | 2; | |
| 29 | 490B-01080 | Plug | 2; | |
| 30 | 490B-01029 | Plug | 4; | |
| 31 | 490B-01079 | Plug | 4; | |
| 32 | 490B-01071 | Gasket | 1; | |
| 33 | 490B-01072 | Oil filter back plate | 1; | |
| 34 | 490B-01073 | Gasket | 1; | |
| 35 | 490B-01076B | Fuel filter back plate | 1; | |
| 36 | GB/T93-1987 | Spring washer | 15; | |
| 37 | GB/T5783-2000 | Bolt | 2; | |
| 38 | 490B-01002A | Bolt | 14; | |
| 38 | 490B-01003A | Bolt | 4; | |
| 40 | 490B-01005 | Cylinder liner | 4; | |
| 41 | 490B-01006 | Water seal ring | 8; | |
| 42 | 490B-01007 | Camshaft bushing | 2; | |
| 43 | 490B-01012 | Gasket | 1; | |
| 44 | 490B-01011 | Water pipe | 1; | |
| 45 | GB/T5783-2000 | Bolt | 1; | |
| 46 | GB/T91-2000 | Pin 1x12 | 1; | |
| 47 | 485-01103 | Drain cock core | 1; | |
| 48 | 485-01101 | Drain cock handle | 1; | |
| 49 | 485-01102 | Cock body | 1; | |
| 50 | GB/T97-1-1985 | Washer | 2; | |
| 51 | 485-01104 | Spring | 1; | |
| 52 | 490BPG-15200 | Front bracket | 1; | |
| 53 | 490BPG-15100A | Front bracket | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
