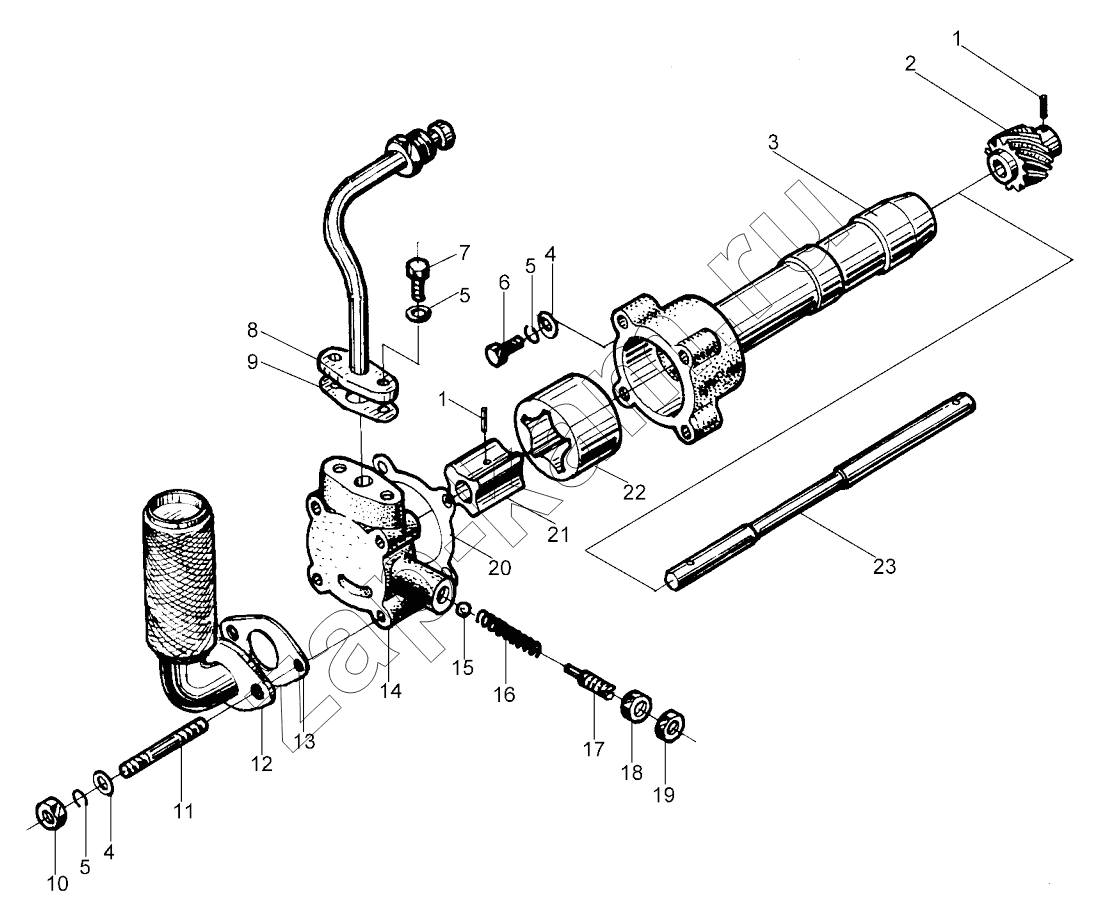

Oil pump and oil pipe assembly
/ XINCHAI 490BPG
1
1
2
3
4
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 490B-31203 | Pin | 2; | - | |
| 2 | 490B-31001 | Oil pump driving gear | 1; | - | |
| 3 | 490B-31004 | Oil pump housing | 1; | - | |
| 4 | GB/T97-1-1985 | Washer | 5; | - | |
| 5 | GB/T93-1987 | Spring washer | 5; | - | |
| 6 | GB/T5783-2000 | Bolt | 1; | - | |
| 7 | GB/T5783-2000 | Bolt | 2; | - | |
| 8 | 490B-33000 | Piping assembly | 1; | - | |
| 9 | 490B-33005 | Gasket | 1; | - | |
| 10 | GB/T6170-2000 | Nut | 2; | - | |
| 11 | GB/T5782-2000 | Bolt | 4; | - | |
| 12 | 490B-31100A | Screen filter | 1; | - | |
| 13 | 490B-31006 | Oil filter gasket | 1; | - | |
| 14 | 490B-31005 | Cover, oil pump | 1; | - | |
| 15 | GB/T308-1989 | Steel ball | 1; | - | |
| 16 | 490B-31003 | Spring | 1; | - | |
| 17 | 490B-31002 | Screw | 1; | - | |
| 18 | GB/T6171-2000 | Nut | 1; | - | |
| 19 | GB/T6173-2000 | Nut | 1; | - | |
| 20 | 490B-31007 | Cover, oil pump gasket | 1; | - | |
| 21 | 490B-31202 | Inner rotor | 1; | - | |
| 22 | 490B-31008 | Outer rotor | 1; | - | |
| 23 | 490B-31201 | Shaft of oil pump | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
