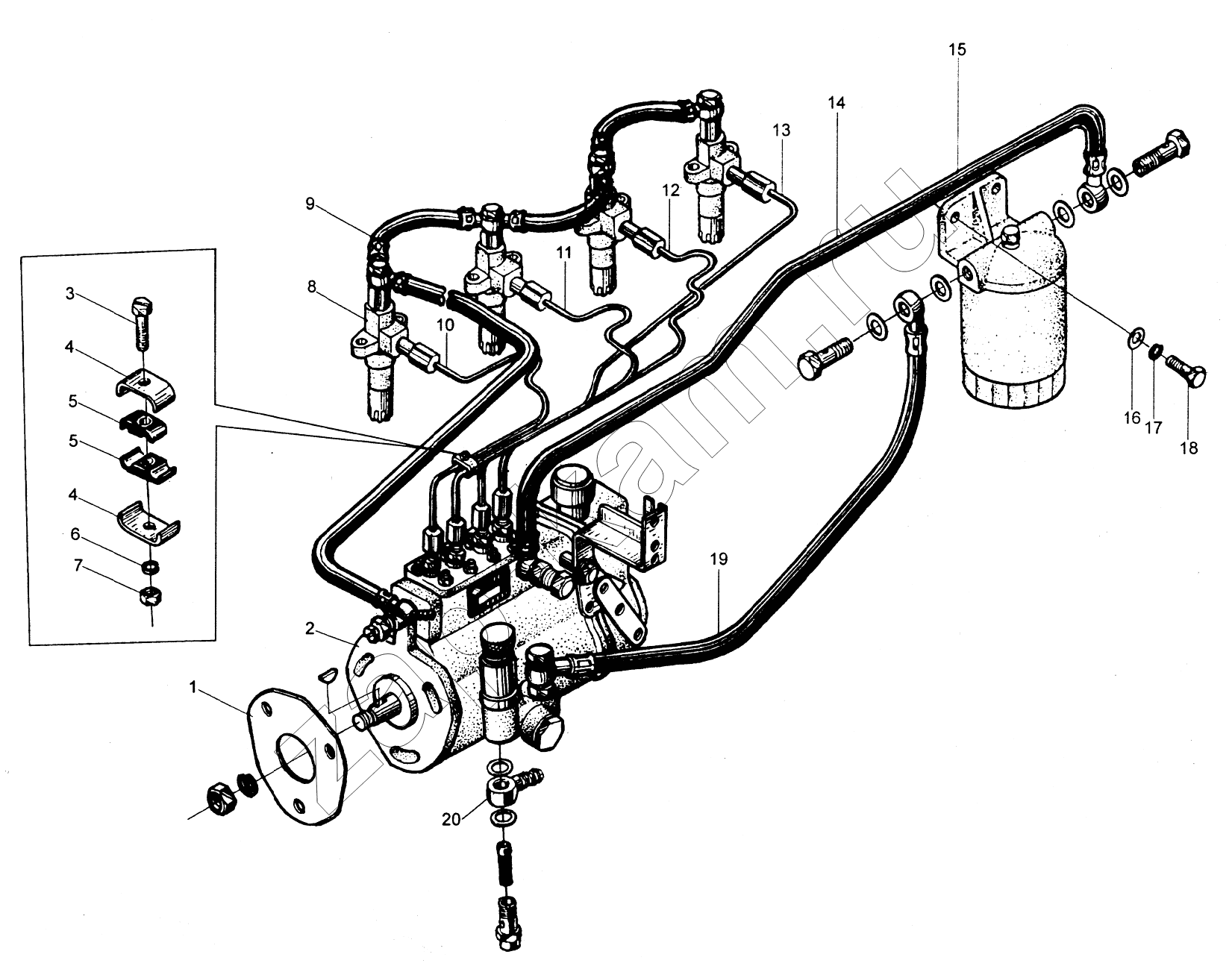

Fuel supply system assembly
/ XINCHAI 498BPG
1
2
3
4
4
5
5
6
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 490В-21002-1 | Gasket | 1; | |
| 2 | А498В-21000 | Fuel injection pump | 1; | |
| 3 | GB/T29.1-1988 | Bolt М6x25 | 3; | |
| 4 | 490В-23501 | Clamp | 6; | |
| 5 | 490В-23502 | Rubber gasket | 6; | |
| 6 | GB/T93-1987 | Spring washer | 3; | |
| 7 | GB/T6172-2000 | Nut | 3; | |
| 8 | 495В-22000А | Fuel injector | 4; | |
| 9 | 490В-25100 | Injector leak-off pipe | 1; | |
| 9 | 490ВТ-25100 | Injector leak-off pipe | 1; | |
| 10 | 490В-23100 | 1st cylinder high pressure fuel tube | 1; | |
| 10 | 490В-23100-1 | 1st cylinder high pressure fuel tube | 1; | |
| 11 | 490В-23200-1 | 2nd cylinder high pressure fuel tube | 1; | |
| 11 | 490В-23200 | 2nd cylinder high pressure fuel tube | 1; | |
| 12 | 490В-23300 | 3rd cylinder high pressure fuel tube | 1; | |
| 12 | 490В-23300-1 | 3rd cylinder high pressure fuel tube | 1; | |
| 13 | 490В-23400 | 4 th cylinder high pressure fuel tube | 1; | |
| 13 | 490В-23400-1 | 4 th cylinder high pressure fuel tube | 1; | |
| 14 | 490В-25200 | Fuel supply tube from fuel filter to injection pump | 1; | |
| 15 | 490В-24000 | Fuel filter | 1; | |
| 16 | GB/T97.1-1985 | Washer 12 | 2; | |
| 17 | GB/T93-1987 | Spring washer | 2; | |
| 18 | GB/T5783-2000 | Bolt | 2; | |
| 19 | 490В-25300 | Fuel supply tube from supply pump to fuel filter | 1; | |
| 20 | 490В-25401 | Fuel supply pump connector | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
