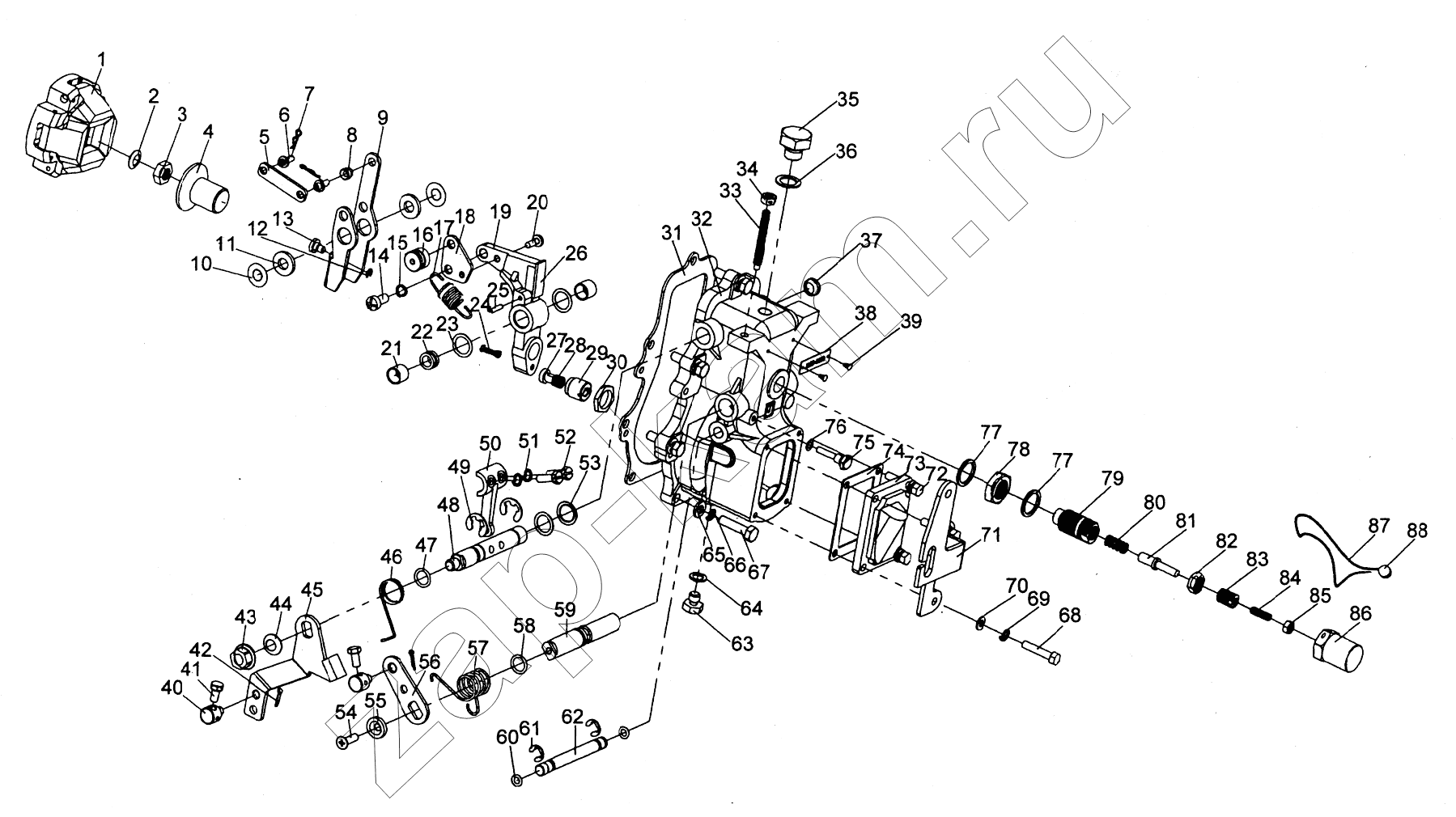

Governor
/ XINCHAI 498BPG
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
77
78
79
80
81
82
83
84
85
86
87
88
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | TQF001.1 | Fly shaft parts | 1; | - | |
| 2 | TQ001-02 | Washer | 1; | - | |
| 3 | GB6172-86 | Screw M12x1.25 | 1; | - | |
| 4 | TQ001-03 | Governor case | 1; | - | |
| 5 | TQ001.3.1.1-02 | Connect shaft | 1; | - | |
| 6 | TQ001.3.1.1-01 | Connect pin | 2; | - | |
| 7 | TQ001.3.1-02 | Pin | 2; | - | |
| 8 | TQ001.3.1.3-01 | Connection housing | 1; | - | |
| 9 | TQ001.3.1.3-02 | Adjustable level | 1; | - | |
| 10 | TQ001.3-19 | Adjustable washer | 2; | - | |
| 11 | TQ001.3-18 | Washer | 2; | - | |
| 12 | GB896-86 | Ring 3.5 | 1; | - | |
| 13 | TQ001.3.1.3-03 | Supporting parts | 1; | - | |
| 14 | GB818-85 | Screw M6x10 | 1; | - | |
| 15 | GB859-76-Zn.D | Washer 6 | 1; | - | |
| 16 | TQ001.3.1.2.1-01 | Hook for spring | 1; | - | |
| 17 | TQ001.3-01 | Spring | 1; | - | |
| 18 | TQ001.3.1.2.1-02 | Spring | 1; | - | |
| 19 | TQ002.1.1.1-01 | Governor shaft | 1; | - | |
| 20 | GB109-86 | Rivet | 1; | - | |
| 21 | GB290-89 | Bearing | 2; | - | |
| 22 | TQ001.3.1-03 | Diaphragm | 1; | - | |
| 23 | TQ001.3.1-04 | Governor lever | 2; | - | |
| 24 | TQ002.1.1-01 | Spring | 1; | - | |
| 25 | GB879-76 | Pin A3x16 | 1; | - | |
| 26 | TQ001.3.1.2-02 | Shaft | 1; | - | |
| 27 | TQ002.1.1.2-01 | Lever | 1; | - | |
| 28 | TQ002.1.1.2-02 | Spring | 1; | - | |
| 29 | TQ002.1.1.2-03 | Binder bolt case | 1; | - | |
| 30 | GB808-88 | Screw | 1; | - | |
| 31 | TQ001-01 | Seal | 1; | - | |
| 32 | TQ001.3-03 | Back plate | 1; | - | |
| 33 | TQ001.3-12 | Fixing pin | 1; | - | |
| 34 | TQ001.3-13 | Fixing screw | 1; | - | |
| 35 | TQ001.2a | Seal | 1; | - | |
| 36 | TQ001-04 | Washer | 1; | - | |
| 37 | TQ001.3-06 | Plug | 1; | - | |
| 38 | TQ001.3-04 | Label | 1; | - | |
| 39 | GB827-86 | Заклепка | 2; | - | |
| 40 | TQ001.3-09 | Shaft | 2; | - | |
| 41 | GB29.1-88 | Bolt M5x10 | 2; | - | |
| 42 | GB91-86 | Pin 2x10 | 2; | - | |
| 43 | GB6177-86 | Screw M8 | 1; | - | |
| 44 | GB860-87 | Washer 8 | 1; | - | |
| 45 | TQ001.3-10b | Governor shaft | 1; | - | |
| 46 | TQ001.3-11 | Spring | 1; | - | |
| 47 | GB3452.1-92 | Seal 9x1.8 | 1; | - | |
| 48 | TQ001.3-07 | Governer cam | 1; | - | |
| 49 | GB896-86 | Ring 3.5 | 2; | - | |
| 50 | TQ001.3-02 | Spring shaft | 1; | - | |
| 51 | GB93-87 | Washer 5 | 2; | - | |
| 52 | GB29.1-88 | Bolt M5x15 | 2; | - | |
| 53 | TQ001.3-08 | Washer | 2; | - | |
| 54 | GB819-85 | Screw M6x14 | 1; | - | |
| 55 | TQ001.3.3-02 | Washer | 1; | - | |
| 56 | TQ002.1.2-01 | Connection plate | 1; | - | |
| 57 | TQ001.3-16 | Spring | 1; | - | |
| 58 | GB3452.1-92 | Seal 10x1.8 | 1; | - | |
| 59 | TQ001.3.3-03 | Stop shaft | 1; | - | |
| 60 | GB3452.1-92 | Seal 5x1.8 | 2; | - | |
| 61 | GB896-86 | Ring 3.5 | 2; | - | |
| 62 | TQ001.3-17 | Middle shaft | 1; | - | |
| 63 | TQ001.3-21 | Fule output pin | 1; | - | |
| 64 | TQ001.3-20 | Washer | 1; | - | |
| 65 | GB95-85 | Washer 6 | 7; | - | |
| 66 | GB93-87 | Washer 6 | 7; | - | |
| 67 | GB5783-86 | Bolt M6x25 | 7; | - | |
| 68 | GB5783-86 | Bolt M5x16 | 2; | - | |
| 69 | GB859-87 | Washer 5 | 4; | - | |
| 70 | GB95-85 | Washer 5 | 4; | - | |
| 71 | TQ002.2-01c | Stop trestle | 1; | - | |
| 72 | GB5783-86 | Bolt M5x14 | 2; | - | |
| 73 | TQ001.5-02a | Back plate | 1; | - | |
| 74 | TQ001-05 | Washer | 1; | - | |
| 75 | TQ001.3-15 | Fixing position screw | 1; | - | |
| 76 | TQ001.3-14 | Washer | 1; | - | |
| 77 | TQ001.3-05 | Washer | 2; | - | |
| 78 | TQ001.3.2-03 | Screw M16x1 | 1; | - | |
| 79 | TQ001.3.2-02 | Rectify bolt case | 1; | - | |
| 80 | TQ001.3.2-07 | Rectify spring | 1; | - | |
| 81 | TQ001.3.2-01 | Rectify lever | 1; | - | |
| 82 | TQ001.3.2-06 | Screw M10x1 | 1; | - | |
| 83 | TQ001.3.2-04 | Adjustble bolt case | 1; | - | |
| 84 | GB73-85 | Screw M5x15 | 1; | - | |
| 85 | GB6172-86 | Screw M12x1.25 | 1; | - | |
| 86 | TQ001.3.2-05 | Protection cap | 1; | - | |
| 87 | GB3081-82 | Lead seal wire | 1; | - | |
| 88 | R001-01 | Lead seal | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
