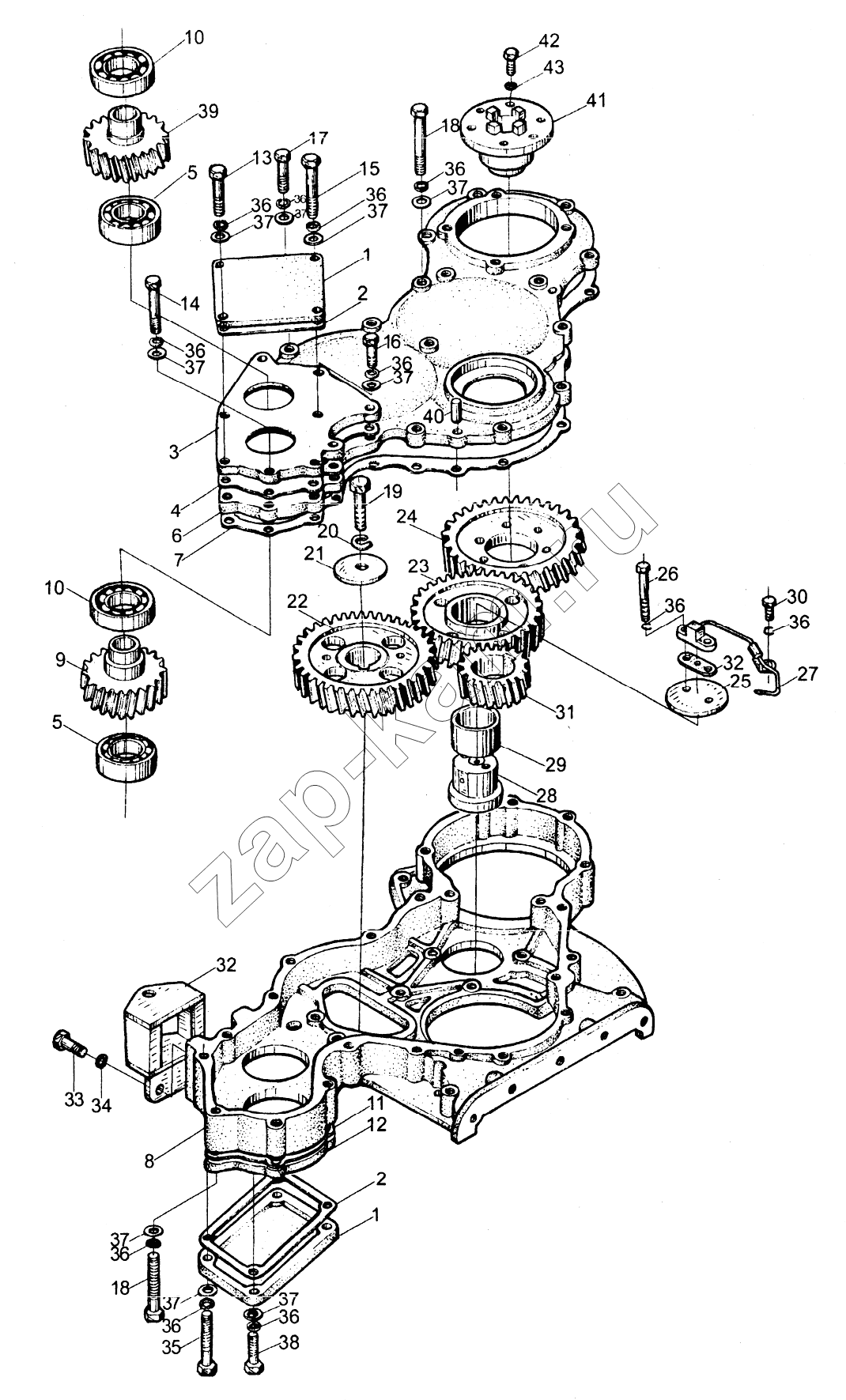

498BT Timing gear train assembly
/ XINCHAI 498BT
1
1
2
2
3
4
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
36
36
36
36
36
36
36
36
36
36
37
37
37
37
37
37
37
37
37
38
39
40
41
42
43
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 490ВТ-16014 | Hydraulic pump end cap | 2; | |
| 2 | 490ВТ-16013 | Hydraulic pump end cap gasket | 2; | |
| 3 | 495ВТ-16016 | Front hydraulic pump gusset plate | 1; | |
| 4 | 495ВТ-16017 | Front hydraulic pump gusset plate gasket | 1; | |
| 5 | GB/T276-1994 | Bearing | 2; | |
| 6 | 495ВТ-16001А | Timing gear cover | 1; | |
| 7 | 495ВТ-16002 | Timing gear cover gasket | 1; | |
| 8 | 495ВТ-16003 | Timing gear | 1; | |
| 9 | 495ВТ-02011 | Front hydraulic pump gear | 1; | |
| 10 | GB/T292-1994 | Подшипник | 2; | |
| 11 | 495ВТ-16019 | Rear hydraulic pump gusset plate gasket | 1; | |
| 12 | 495ВТ-16018 | Rear hydraulic pump gusset plate | 1; | |
| 13 | GB/T5782-2000 | Bolt | 2; | |
| 14 | GB/T5782-2000 | Bolt | 4; | |
| 15 | GB/T5782-2000 | Bolt | 4; | |
| 16 | GB/T5783-2000 | Bolt | 1; | |
| 17 | GB/T5782-2000 | Bolt | 4; | |
| 18 | GB/T5783-2000 | Bolt | 10; | |
| 19 | GB/T5782-2000 | Bolt | 1; | |
| 20 | GB/T93-1987 | Spring washer | 1; | |
| 21 | 490В-02011 | Camshaft timing gear plate | 1; | |
| 22 | 490ВТ-02009 | Camshaft timing gear | 1; | |
| 23 | 490ВТ-02006 | Timing idler gear | 1; | |
| 24 | 490В-02015 | Timing gear | 1; | |
| 25 | 490В-02012 | Plate | 1; | |
| 26 | GB/T5782-2000 | Bolt | 2; | |
| 27 | 490ВТ-02100 | Fuel injection pipe welding unit | 1; | |
| 28 | 490В-02004 | Timing idle gear shaft | 1; | |
| 29 | 490В-02005 | Timing idle gear bush | 1; | |
| 30 | GB/T5783-2000 | Bolt | 1; | |
| 31 | 490ВТ-02007 | Crankshaft timing gear | 1; | |
| 32 | 490ВТ-53002 | Bracket | 1; | |
| 33 | GB/T5783-2000 | Bolt | 2; | |
| 34 | GB/T93-1987 | Spring washer | 2; | |
| 35 | GB/T5782-2000 | Bolt | 3; | |
| 36 | GB/T93-1987 | Spring washer | 34; | |
| 37 | GB/T97.1-1985 | Washer 12 | 34; | |
| 38 | GB/T5783-2000 | Bolt | 1; | |
| 39 | 495ВТ-02010 | Rear hydraulic pump gear | 1; | |
| 40 | GB1192-2000 | Pin | 1; | |
| 41 | 490ВТ-02015 | Bushing | 1; | |
| 42 | GB/T5783-2000 | Bolt | 6; | |
| 43 | GB/T93-1987 | Spring washer | 6; |
