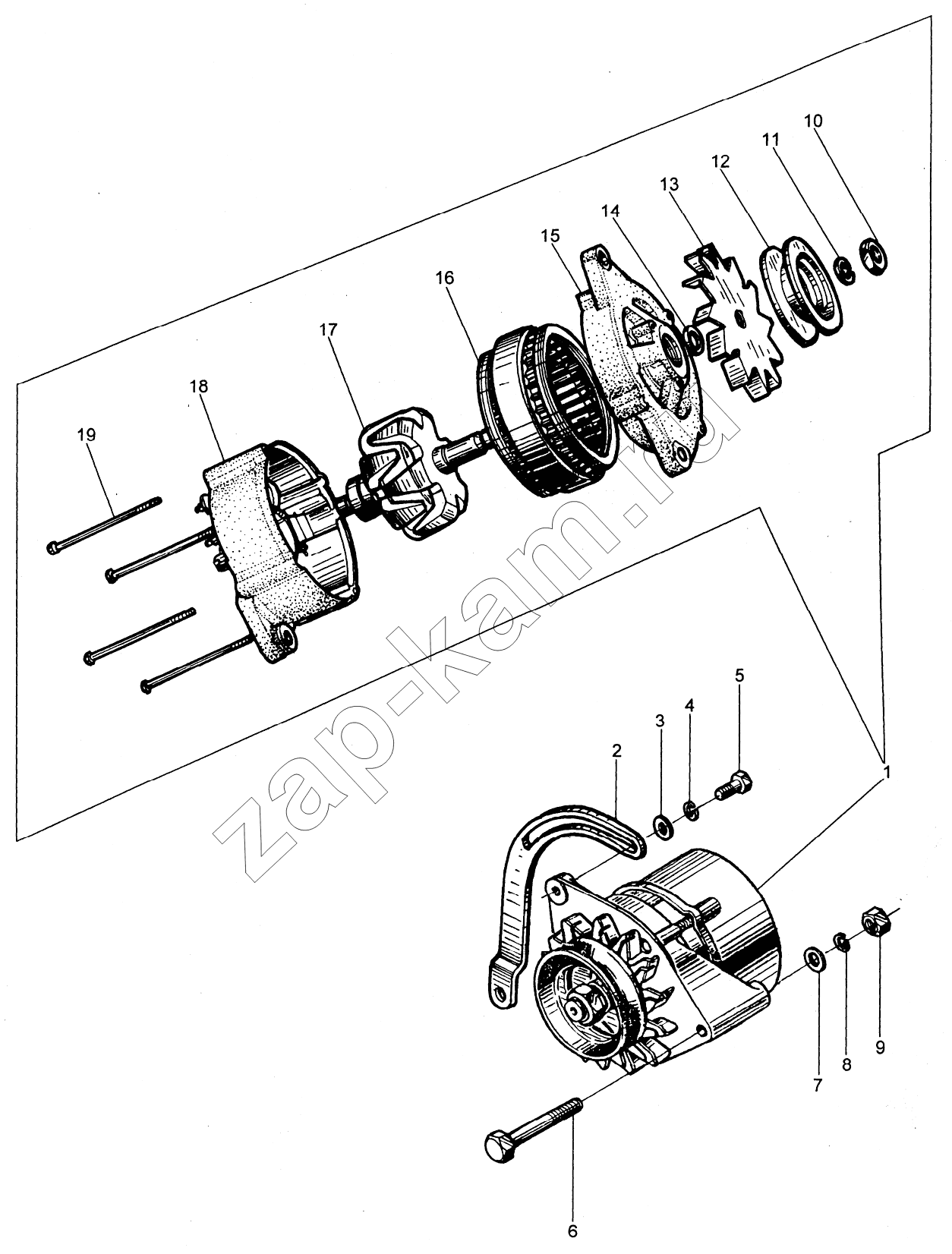

Charging generator assembly
/ XINCHAI 498BT
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 490В-52000 | Charging generator | 1; | |
| 2 | 495В-53001 | Adjusting lever for generator | 1; | |
| 2 | 495ВТ-53001-1 | Adjusting lever for generator | 1; | |
| 3 | GB/T97.1-1985 | Washer 12 | 1; | |
| 4 | GB/T93-1987 | Spring washer | 1; | |
| 5 | GB/T5783-2000 | Bolt | 1; | |
| 6 | GB/T5782-2000 | Bolt | 1; | |
| 7 | GB/T97.1-1985 | Washer 12 | 1; | |
| 8 | GB/T93-1987 | Spring washer | 1; | |
| 9 | GB/T6170-2000 | Nut | 1; | |
| 10 | NutM16 | Nut M16 | 1; | |
| 11 | Gasket16 | Gasket 16 | 1; | |
| 12 | Pulley | Pulley | 1; | |
| 13 | Fan | Fan | 1; | |
| 14 | Insidespacer | Inside spacer | 1; | |
| 15 | Drivehousingassembly | Drive housing assembly | 1; | |
| 16 | Statorassembly | Stator assembly | 1; | |
| 17 | Rotorassembly | Rotor assembly | 1; | |
| 18 | Driveendassembly | Drive end assembly | 1; | |
| 19 | TighteningBolt M5 | Tightening bolt M5 | 4; |
