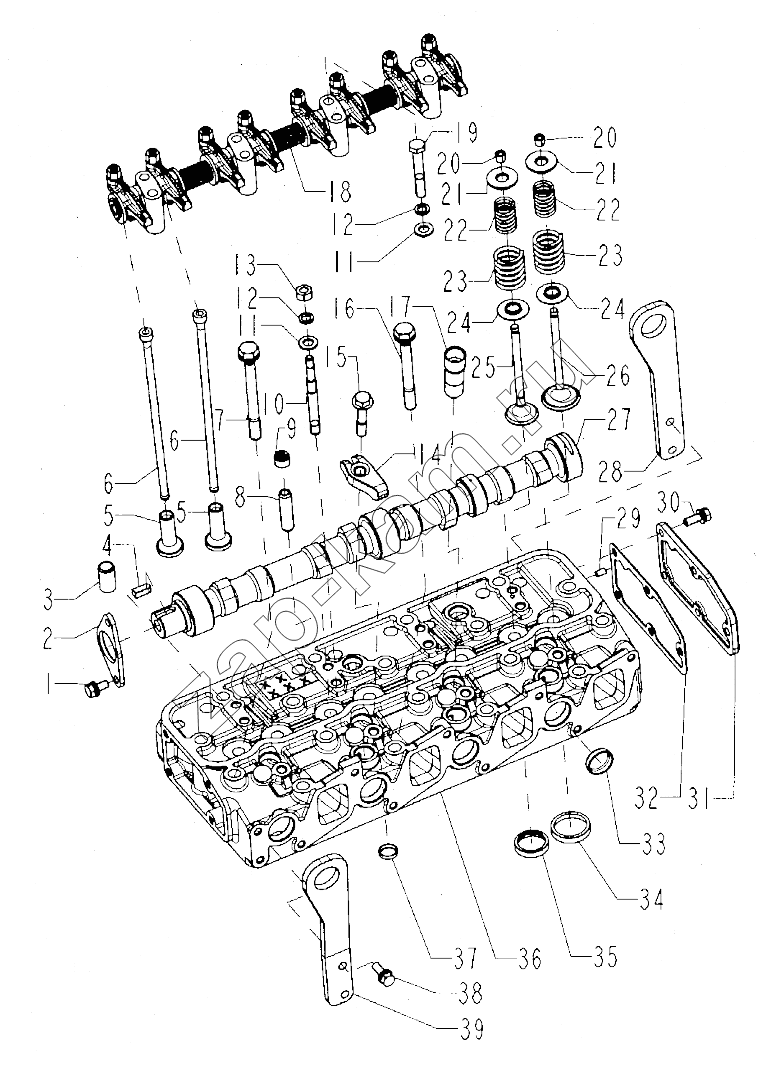

Cylinder head and gas exchanging system assembly
/ XINCHAI 4D32ZT31
1
2
3
4
5
5
6
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | GB/T9074.17-M8x18 | Bolt M8x18 | 2; | - | |
| 2 | 490B-02008 | Thrust plate for camshaft | 1; | - | |
| 3 | 4D27G31-03110 | Block set | 4; | - | |
| 4 | GB/T1096-C8x7x22 | Key | 1; | - | |
| 5 | 490B-06002 | Push tappet | 8; | - | |
| 6 | 495B-06003 | Push rod | 8; | - | |
| 7 | 490B-01002A | Bolt | 14; | - | |
| 8 | A490BZL-03102A | Valve guide | 8; | - | |
| 9 | A490BZL-03016 | Oil seal | 8; | - | |
| 10 | 490B-03001 | Stud | 4; | - | |
| 11 | GB/T97.1-10 | Washer 10 | 8; | - | |
| 12 | GB 93-10 | Washer 10 | 8; | - | |
| 13 | GB/T6170-M10 | Nut | 4; | - | |
| 14 | A490B-03016A | Pressure plate | 4; | - | |
| 15 | A490B-03019 | Bolt | 4; | - | |
| 16 | 490B-01003A | Bolt | 4; | - | |
| 17 | A490B-03109 | Sleeve tube | 4; | - | |
| 18 | 490B-03200 | Valve rocker arm part | 1; | - | |
| 19 | GB/T5782-M 10x65 | Bolt M10x65 | 4; | - | |
| 20 | 490B-030061 | Split valve retainer | 16; | - | |
| 21 | 490B-03007 | Valve spring seat, upper | 8; | - | |
| 22 | 490B-03005 | Valve spring, inner | 8; | - | |
| 23 | 490В-03004 | Valve spring, outer | 8; | - | |
| 24 | 490В-03011 | Lower seat, valve spring | 8; | - | |
| 25 | 495В-03015 | Exhaust valve | 4; | - | |
| 26 | A498BZ-03014 | Intake valve | 4; | - | |
| 27 | 495В-06001-2 | Camshaft | 1; | - | |
| 28 | 490В-03009-11 | Hoisting bracket | 1; | - | |
| 29 | 4D27G31-03111 | Block | 1; | - | |
| 30 | GB/T9074.17-M8x22 | Bolt M8x22 | 5; | - | |
| 31 | 490В-03012 | Rear cover | 1; | - | |
| 32 | 490В-03013А | Gasket | 1; | - | |
| 33 | 490В-01078 | Plug 30 | 4; | - | |
| 34 | 4D35ZT31-03107 | Intake valve seat | 4; | - | |
| 35 | 4D35ZT31-03108 | Exhaust valve seat | 4; | - | |
| 36 | A498B-03101 | Cylinder head | 1; | - | |
| 37 | 490B-03017 | Pulg 20 | 7; | - | |
| 38 | 4906-03009-13 | Hoisting bracket | 1; | - | |
| 39 | GBA9074.17-M8X25 | Bolt M8x25 | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
