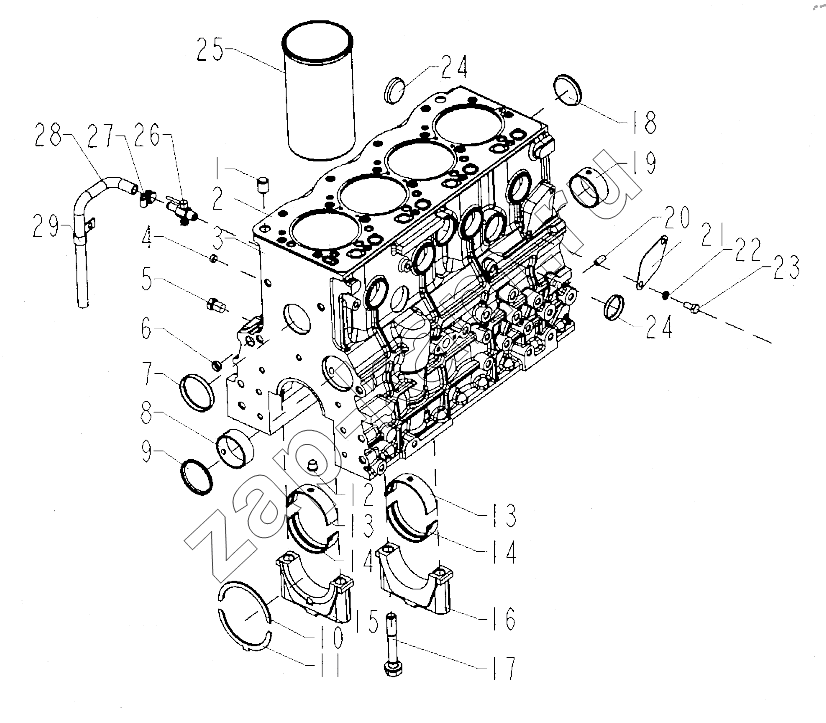

Engine block assembly and accessory
/ XINCHAI 4D32ZT31
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | GB/T119.1-16h8x20 | Pin 16h8x20 | 2; | - | |
| 2 | A498B-01004 | Cylinder head gasket | 1; | - | |
| 3 | A498BZ-01001 | Engine block | 1; | - | |
| 4 | 490B-01029 | Plug | 4; | - | |
| 5 | 490B-01081-1 | Plug screw NPT1/4 | 1; | - | |
| 6 | 490B-01080 | Plug | 2; | - | |
| 7 | 495B-01050 | Bowl-shaped plug 60 | 1; | - | |
| 8 | 495B-01008A | Rear camshaft bush | 1; | - | |
| 9 | 490B-01009 | Bowl-shaped plug 58 | 1; | - | |
| 10 | 495B-01026A | Upper crankshaft thrust plate | 2; | - | |
| 11 | 495B-01022A | Lower crankshaft thrust plate | 2; | - | |
| 12 | 490B-01027 | Middle blocking | 1; | - | |
| 13 | 495B-01034A | Upper main bearing shell | 5; | - | |
| 14 | 495B-01033A | Lower main bearing shell | 5; | - | |
| 15 | A498B-01023 | Rear main bearing cover | 1; | - | |
| 16 | A498B-01032 | Main bearing cover | 4; | - | |
| 17 | А498В-01019А | Main bearing bolt | 10; | - | |
| 18 | 495В-01047 | Bowl-shaped plug 50 | 1; | - | |
| 19 | 495В-01007А | Camshaft bush | 2; | - | |
| 20 | GB/T119.2-8x20-B | Pin 8x20-B | 1; | - | |
| 21 | A498BZL-01082-1 | Water inlet cover | 1; | - | |
| 22 | GB93-8 I | Washer 8 | 2; | - | |
| 23 | GB/T5783-M8x16 | Воlt M8х16 | 2; | - | |
| 24 | 490B-01079 | Plug | 10; | - | |
| 25 | A498B-01005 | Cylinder liner | 4; | - | |
| 26 | 490BT-01100 | Drain valve unit | 1; | - | |
| 27 | JB/T8870-d16 | Hose clamp d16 | 1; | - | |
| 28 | 490BT-01075 | Drain valve hose | 1; | - | |
| 29 | 490BT-01105 | Drain valve hose bracket | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
