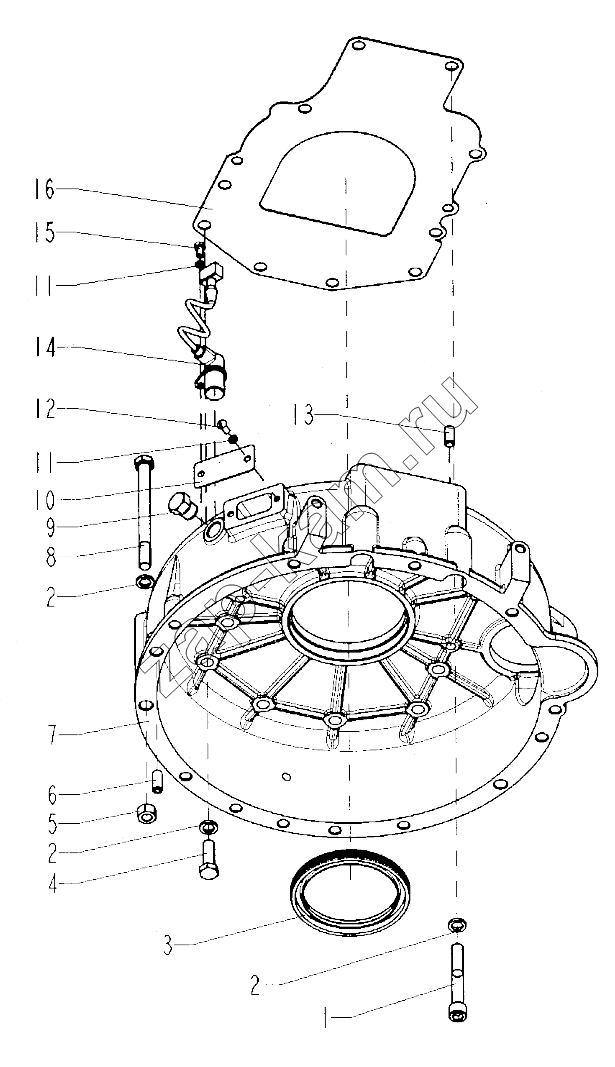

Flywheel housing assembly
/ XINCHAI 4D32ZT31
1
2
2
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | GB/T70.1-М12х85 | Bolt М12x85 | 2; | |
| 2 | GB93-12 | Washer 12 | 11; | |
| 3 | 490В-01036 | Rear oil seal | 1; | |
| 4 | GB/T5782-M12X35 | Bolt M12x35 | '8; | |
| 5 | GB/T6170-M12 | Nut M12 | 1; | |
| 6 | GB/T119.2-12x20 | Pin 12x20 | 2; | |
| 7 | 4D32ZT31-13001-3 | Flywheel housing | 1; | |
| 8 | 490ВТ-13008 | Flywheel housing plug screw | 2; | |
| 9 | GB/T5782-M12x140 | Bolt M12x140 | 1; | |
| 10 | 490В-13003 | Cover, inspection hole | 1; | |
| 11 | GB93-6 | Washer 6 | 3; | |
| 12 | GB/T67-M6x12 | Screw M6x12 | 2; | |
| 13 | GB/T119.2-10х24-В | Pin 10x24-B | 2; | |
| 14 | 4D35ZT31-37030 | Revolution speed sensor | 1; | |
| 15 | GB/T5783-M6x12 | Bolt M6x12 | 1; | |
| 16 | 490ВТ-13002 | Flywheel housing gasket | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
