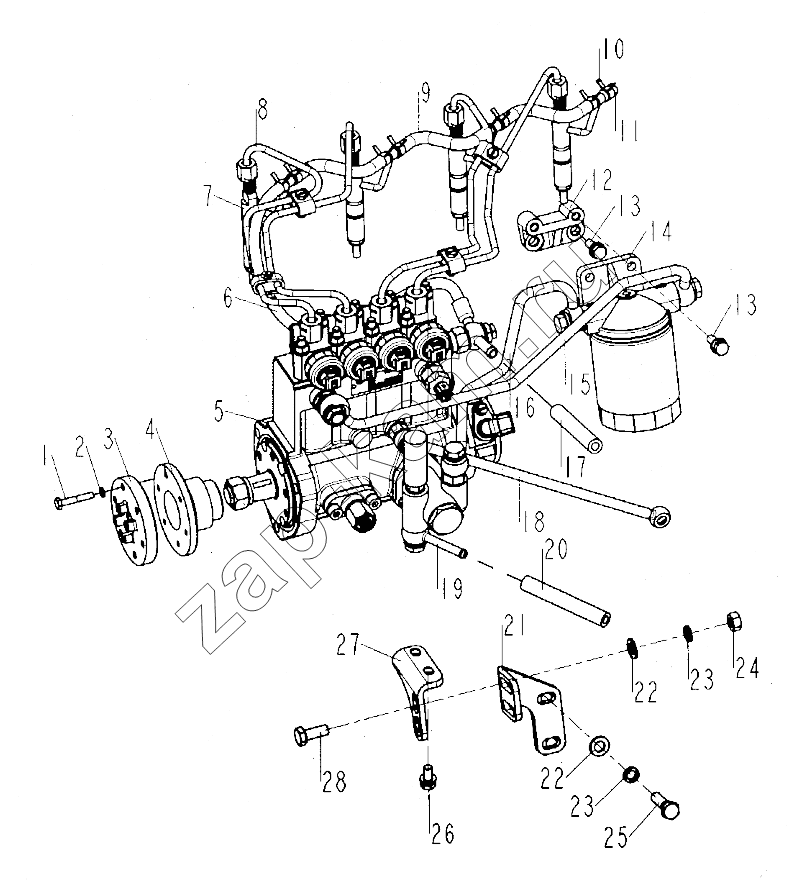

Fuel supply system assembly
/ XINCHAI 4D32ZT31
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
28
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | GB/T5783- M6x35 | Bolt М6х35 | 6; | |
| 2 | GB93-6 | Washer 6 | 6; | |
| 3 | 4D32ZT31-02019 | Pump sleeve | 1; | |
| 4 | 4D32ZT31-G2015 | Fuel injection pump timing gear shaft sleeve | 1; | |
| 5 | 4D27ZG31-21100 | Fuel injection pump | 1; | |
| 6 | 4D27ZG31-25100-1 | Injector leak-off pipe | 1; | |
| 7 | 4D32ZT31-22000 | Fuel injector | 4; | |
| 8 | 4D32ZT31-23000-1 | High pressure fuel tube assembly | 1; | |
| 9 | 498B-25002 | Injector leak-off pipe | 3; | |
| 10 | 498B-25004 | Hose clamp | 8; | |
| 11 | 498B-25001 | Fuel injector oil cap | 1; | |
| 12 | 490B-01076B | Fuel filter back plate | 1; | |
| 13 | GB/T9074.17-M8x25 | Bolt | 4; | |
| 14 | 490B-24000A | Fuel filter | 1; | |
| 15 | 4D32ZT31-25200 | Fuel supply tube from fuel filter to injection pump | 1; | |
| 16 | 4D32ZT31-25300 | Fuel supply tube from supply pump to fuel filter | 1; | |
| 17 | 4D32ZT31-25600 | Oil return hose | 1; | |
| 18 | 4K39T-21100-1 | Oil pump forced lubricating oil tube parts | 1; | |
| 19 | 490B-25401-1 | Fuel supply pump connector | 1; | |
| 20 | 4D32ZT31-25500 | Suction hose | 1; | |
| 21 | 4D32ZT31-01077 | Pump lower bracket | 1; | |
| 22 | GB/T97.1-10 | Washer 10 | 3; | |
| 23 | GB93-10 | Washer 10 | 3; | |
| 24 | GB/T6170-М10 | Nut M10 | 1; | |
| 25 | GB/T5783-M10x25 | Bolt M10x25 | 2; | |
| 26 | GB/T9074.17-M8x18 | Bolt M8x18 | 2; | |
| 27 | 4D32ZT31-01076 | Pump upper bracket | 1; | |
| 28 | GB/T5783-M10X30 | Nut М10х30 | 1; |
