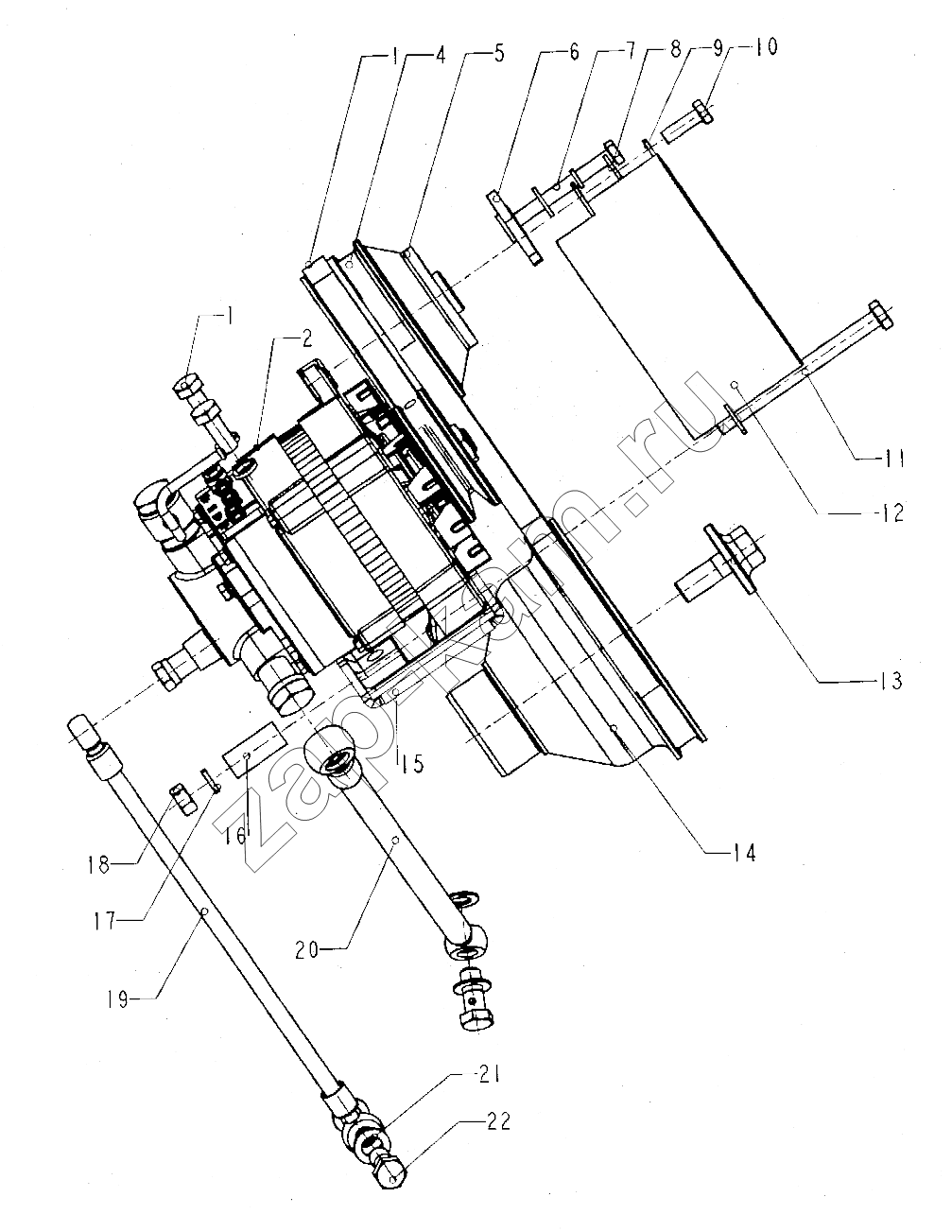

Generator and belt assembly
/ XINCHAI 4D32ZT31
1
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | GB/T5783-М 10x25 | Bolt M10x25 | 2; | - | |
| 2 | 4D27T-52000 | Charging generator | 1; | - | |
| 3 | AV15x680Le | Fan belt AV15x680Le | 1; | - | |
| 4 | AV15x930Le | Fan belt AV15x930Le | 1; | - | |
| 5 | 490BT-41002-3 | Fan pulley | 1; | - | |
| 6 | 495BT-53001-3 | Adjusting lever for generator | 1; | - | |
| 7 | GB/T5782-M8x70 | Bolt M8x70 | 1; | - | |
| 8 | GB/T97.1-8 | Washer 8 | 2; | - | |
| 9 | GB93-8 | Washer 8 | 2; | - | |
| 10 | GB/T5783-M8x25 | Bolt M8x25 | 1; | - | |
| 11 | GB/T5782-M10x115 | Bolt М10x115 | 1; | - | |
| 12 | 4K39T-53005-2 | Generator protective cover | 1; | - | |
| 13 | 490B-05008 | Starting pawl | 1; | - | |
| 14 | 490BT-05006-1 | Crankshaft V-belt | 1; | - | |
| 15 | 490BT-53002-4 | Generator bracket | 1; | - | |
| 16 | 490BT-53003 | Generator bracket liner pipe | 1; | - | |
| 17 | GB93-10 | Washer 10 | 3; | - | |
| 18 | GB/T6170-М 10 9 | Nut M10 | 1; | - | |
| 19 | 490В-52100-2А | Vacuum pump oil inlet unit | 1; | - | |
| 20 | 490В-52200-2А | Vacuum pump oil return unit | 1; | - | |
| 21 | NC485BZL-19008 | Copper washer | 4; | - | |
| 22 | NC485BZL-19002 | Fuel pipe connector screw | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
