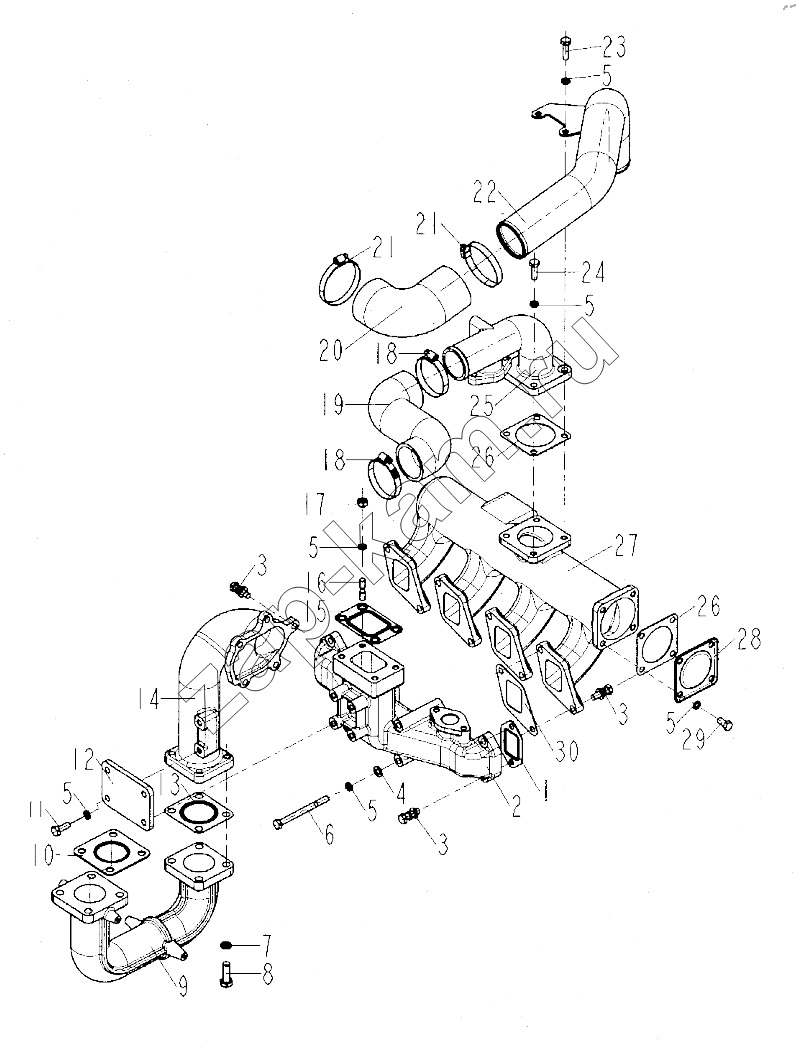

Intake, exhaust assembly
/ XINCHAI 4D32ZT31
1
2
3
3
3
4
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
25
26
26
27
28
29
30
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 490В-03003 | Gasket | 4; | |
| 2 | A4D32ZLT-08001-1 | Exhaust pipe | 1; | |
| 3 | G89074.17-M8X28 | Bolt M8x28 | 17; | |
| 4 | GB97.1-8 | Washer 8 | 4; | |
| 5 | GB93-8 | Washer 8 | 20; | |
| 6 | GBA5782-M8x95 | Nut M8x95 | 4; | |
| 7 | GB93-10 | Washer 10 | 4; | |
| 8 | GB/T5783-M10X30 | Nut М10х30 | 4; | |
| 9 | 4D322T31-08003-1 | Exhaust connecting pipe | 1; | |
| 10 | 495BT-08004-1 | Muffler elbow gasket | 1; | |
| 11 | GB/T5783-M8X22 | Bolt M8x22 | 4; | |
| 12 | A4D32ZLT-08005 | Reinforcing plate | 1; | |
| 13 | 490BT-Q8004-4 | Exhaust connecting pipe gasket | 1; | |
| 14 | A4D32ZLT-08002 | Exhaust connecting pipe | 1; | |
| 15 | A490BZL-08003 | Turbocharger gasket | 1; | |
| 16 | GB899-GM8x20 | StudGM8x20 | 4; | |
| 17 | GBA6170-M8 | Nut M8 | 4; | |
| 18 | JB/T8870-D60 | Hose clamp D60 | 2; | |
| 19 | 4D32ZT31-09007 | Rubber pipe with fiber interiayer | 1; | |
| 20 | 4D322T31-09011 | Turbocharger intake rubber pipe | 1; | |
| 21 | JB/T8870-D70 | Hose clamp D70 | 2; | |
| 22 | 4D32ZT31-09010-1 | Turbocharger intake connecting pipe | 1; | |
| 23 | GB/T5783-M8x28 | Bolt M8x28 | 2; | |
| 24 | GBA5783-M8x25 | Bolt M8x25 | 2; | |
| 25 | 4D32ZT31-09003 | Intake connecting pipe | 1; | |
| 26 | 490B-09004 | Intake connecting pipe gasket | 2; | |
| 27 | 4D32ZT31-09002-1 | Intake pipe | 1; | |
| 28 | 490B-09005 | Intake pipe end cover | 1; | |
| 29 | GB/T5783-M8x16 | Воlt M8х16 | 4; | |
| 30 | 490B-09001 | Intake pipe gasket | 4; |
