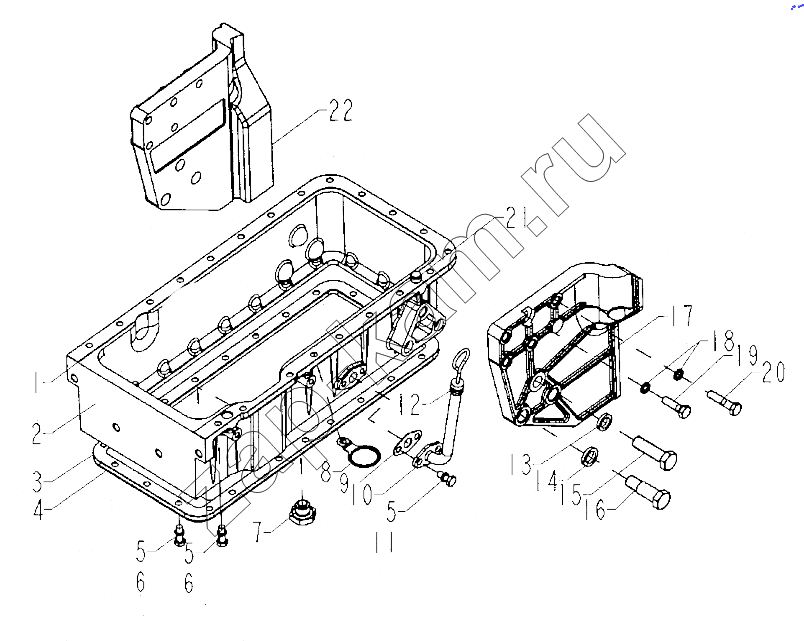

Oil pan and engine bracket assembly
/ XINCHAI 4D32ZT31
1
2
3
4
5
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 490ВТ-07002 | Oil pan gasket | 1; | |
| 2 | 495ВТ-07106 | Main oil pan | 1; | |
| 3 | 490ВТ-07004 | Oil pan cover gasket | 1; | |
| 4 | 490ВТ-07003-2 | Oil pan cover | 1; | |
| 5 | GB93-8 | Washer 8 | 45; | |
| 6 | GB/T5783-M8x25 | Bolt M8x25 | 43; | |
| 7 | 490B-07600 | Magnetic plug screw unit | 1; | |
| 8 | 495B-34015 | Hold hoop | 1; | |
| 9 | 490BT-07303A | Oil dipstick cannula gasket | 1; | |
| 10 | 490BT-07300-1 | Oil dipstick cannula unit | 1; | |
| 11 | GBn-5783-M8x20 | Bolt M8x20 | 2; | |
| 12 | 490ВТ-07200-2 | Oil dipstick unit | 1; | |
| 13 | GB93-16 | Washer 16 | 2; | |
| 14 | GB93-18 | Washer 18 | 4; | |
| 15 | GB/T5783-M16x55 | Bolt M 16x55 | 2; | |
| 16 | 490ВТ-07800 | Engine bracket bolt | 4; | |
| 17 | 4D32ZT31-15001R | Right engine bracket I | 1; | |
| 18 | GB93-10 | Washer 10 | 10; | |
| 19 | GB/T5782-M10x35 | Bolt M10x35 | 1; | |
| 20 | GB/T5782-M10x45 | Bolt M10x45 | 9; | |
| 21 | 490BT-07008 | Pin | 2; | |
| 22 | 4D32ZT31-15001L | Left engine bracket | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
