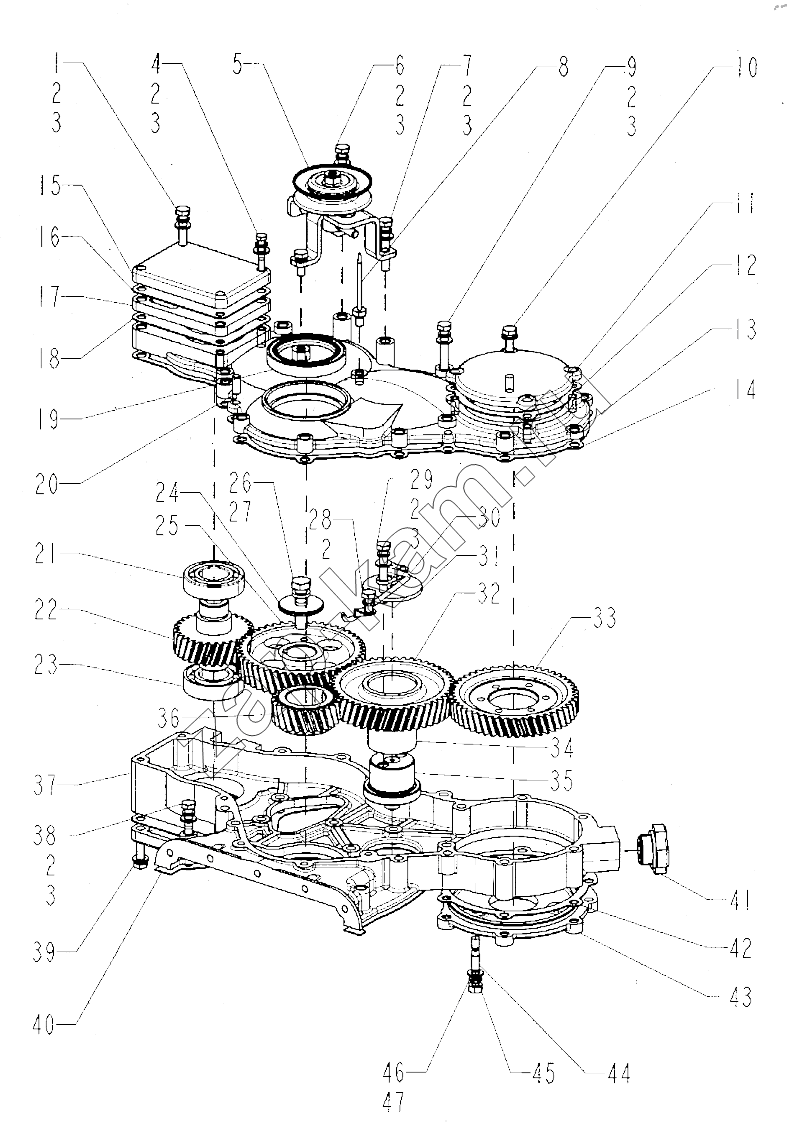

Timing gear train assembly
/ XINCHAI 4D32ZT31
1
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | GB/T5782-M8x65 | Bolt M8x65 | 3; | |
| 2 | GB93-8 | Washer 8 | 23; | |
| 3 | GB/T97.1-8 | Washer 8 | 22; | |
| 4 | GB/T5782-M8x40 | BoltM8x40 | 2; | |
| 5 | 490BT-16200-1 | Tensioning pulley assembly | 1; | |
| 6 | GB/T5782-M8X92 | Bolt M8x92 | 1; | |
| 7 | GB/T5782-M8x50 | Bolt M8x50 | 1; | |
| 8 | 490BT-16012 | Timing pointer | 1; | |
| 9 | GB/T5782-M8x70 | Bolt M8x70 | 6; | |
| 10 | GB/T9074.17-M8X25 | Bolt M8x25 | 11; | |
| 11 | 490BT-16016 | Air compressor plate | 1; | |
| 12 | 490ВТ-16005 | Air compressor plate gasket | 1; | |
| 13 | 490ВТ-16001-1 | Timing gear housing cover | 1; | |
| 14 | 490ВТ-16002-1 | Timing gear housing cover gasket | 1; | |
| 15 | 490ВТ-16014А | Hydraulic pump end cover | 2; | |
| 16 | 490ВТ-16013-1 | Hydraulic pump end cover gasket | 2; | |
| 17 | 490ВТ-16021 | Front hydraulic pump connecting plate | 1; | |
| 18 | 490ВТ-16017 | Front hydraulic pump connecting plate gasket | 1; | |
| 19 | 490В-16035 | Front oil seal | 1; | |
| 20 | GB/T119.2-8X20-B | Pin 8x20-B | 2; | |
| 21 | GB/T276-6206 | Rolling bearing 6206 | 1; | |
| 22 | 490ВТ-02010-1 | Hydraulic pump gear | 1; | |
| 23 | GB/T292-7206AC | Rolling bearing 7206AC | 1; | |
| 24 | 490В-02011 | Camshaft timing gear plate | 1; | |
| 25 | 490ВТ-02009 | Camshaft timing gear | 1; | |
| 26 | GB/T5782-M12x45 | Bolt M12x45 | 1; | |
| 27 | GB93-12 | Washer 12 | 1; | |
| 28 | GB/T5783-M8X16 | BoltM8x16 | 1; | |
| 29 | GB/T5782-М8х60 | Bolt M8x60 | 4; | |
| 30 | 490ВТ-02100 | Fuel injection pipe welding unit | 1; | |
| 31 | 490В-02012-1 | Idler gear shaft plate | 4; | |
| 32 | 490ВТ-02006 | Timing idler gear | 1; | |
| 33 | 4D27ZT31-02003 | Fuel injection pump timing gear | 1; | |
| 34 | 490В-02005 | Timing idle gear bush | 1; | |
| 35 | 490В-02004 | Timing idle gear shaft | 1; | |
| 36 | 490ВТ-02007 | Crankshaft timing gear | 1; | |
| 37 | 490ВТ-16003-1 | Timing gear housing | 1; | |
| 38 | GB/T5782-M8x45 | Bolt М8х45 | 2; | |
| 39 | GB/T9074.17-M8x30 | Bolt М8х30 | 8; | |
| 40 | 490BT-16009 | Timing gear housing gasket | 1; | |
| 41 | 495BT-16100 | Timing gear housing oil filter cap assembly | 1; | |
| 42 | 490B-16008 | Fuel injection pump connecting flange gasket | 1; | |
| 43 | 4D27ZG31-16004 | Fuel injection pump connecting flange | 1; | |
| 44 | GB898-GM 10x30 | Stud AM10x30 | 3; | |
| 45 | GB/T6170-M10 | Nut | 3; | |
| 46 | GB93-10 | Washer 10 | 3; | |
| 47 | GB/T97.1-10 | Washer 10 | 3; |
