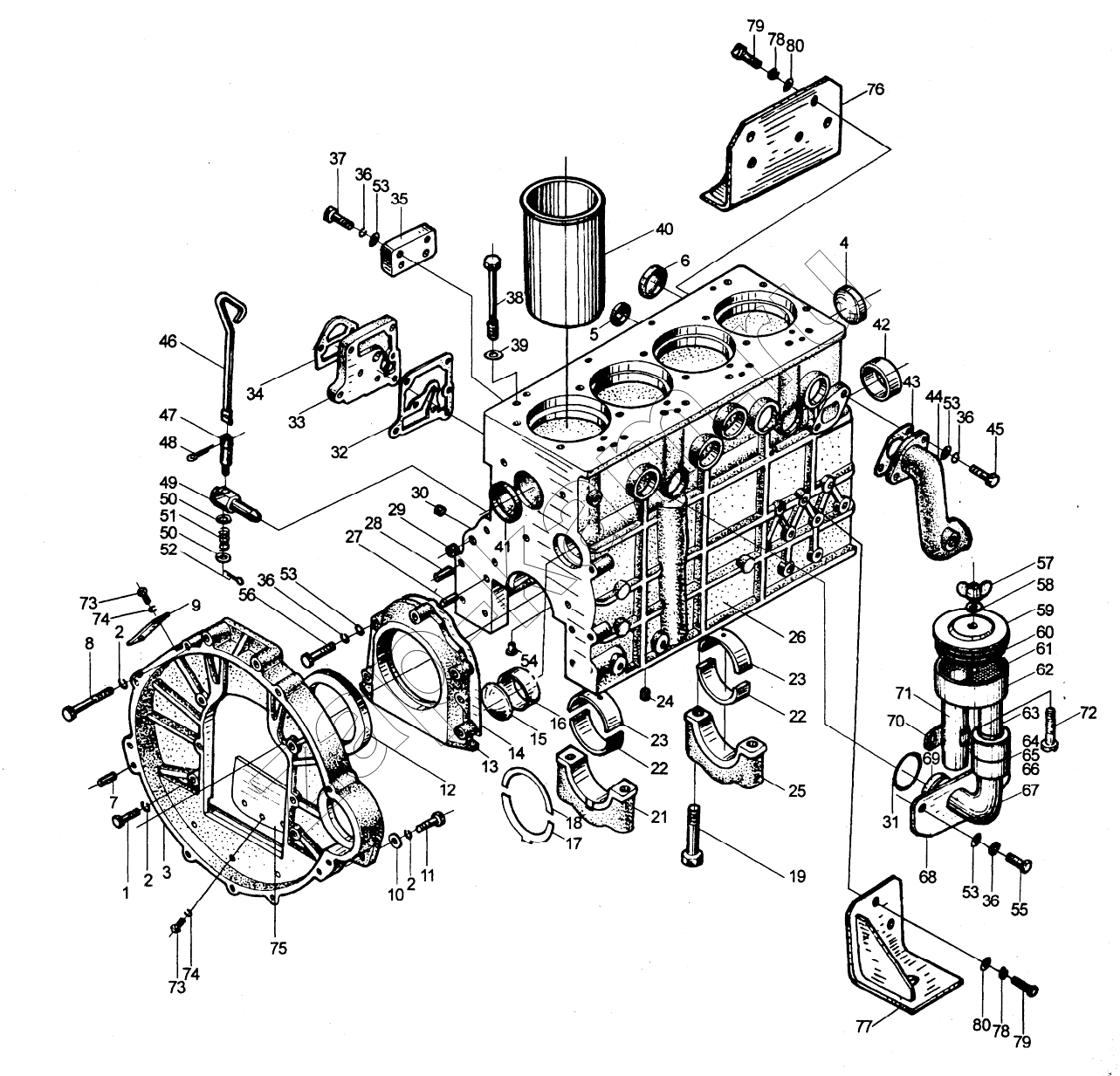

498BPG Body assembly and accessory
/ XINCHAI A498BPG
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
36
36
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
52
53
53
53
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
73
74
74
75
76
77
78
78
79
79
80
80
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | GB/T5783-2000 | Bolt | 4; | |
| 2 | GB/T93-1987 | Spring washer | 8; | |
| 3 | 490В-13001А | Flywheel housing | 1; | |
| 4 | 495В-01047 | Bowl-shaped plug 50 | 1; | |
| 5 | 490В-03017 | Plug 20 | 3; | |
| 6 | 490В-01079 | Plug 40 | 10; | |
| 7 | GB/T120.1-2000 | Pin A10x25 | 2; | |
| 8 | GB/T5782-2000 | Bolt | 2; | |
| 9 | 490В-13003 | Cover, inspection hole | 1; | |
| 10 | GB/T97.1-1985 | Washer 12 | 6; | |
| 11 | GB/T5783-2000 | Bolt | 2; | |
| 12 | Oil seal 100x125x12 | Oil seal | 1; | |
| 13 | 490В-01024А | Oil seal seat | 1; | |
| 14 | 490В-01025 | Gasket | 1; | |
| 15 | 490В-01009 | Plug | 1; | |
| 16 | 495В-01008 | Rear camshaft bushing | 1; | |
| 17 | 495В-01022А | Lower thrust bearing | 2; | |
| 18 | 495В-01026А | Upper thrust bearing | 2; | |
| 19 | А498В-01019А | Main bearing bolt | 10; | |
| 21 | А498В-01023 | Rear bearing cap | 1; | |
| 22 | 495В-01033А | Main bearing, lower half | 5; | |
| 23 | 495В-01034А | Main bearing, upper half | 5; | |
| 24 | 490В-01027 | Plug | 1; | |
| 25 | А498В-01032 | Main bearing cover | 4; | |
| 26 | А498В-01001 | Cylinder block | 1; | |
| 27 | GB/T119.2-2000 | Pin B8x20 | 2; | |
| 28 | GB/T119.2-2000 | Pin B10x25 | 2; | |
| 29 | 490В-01080 | Bowl-shaped plug 15 | 2; | |
| 30 | 490В-01029 | Plug R1/8 | 6; | |
| 31 | 490В-34009 | O-ring | 1; | |
| 32 | 490В.-01071 | Oil filter gasket | 1; | |
| 33 | 490В-01072 | Oil filter back plate | 1; | |
| 34 | 490В-01073 | Gasket | 1; | |
| 35 | 490В-01076В | Fuel filter back plate | 1; | |
| 36 | GB/T93-1987 | Spring washer | 11; | |
| 37 | GB/T5783-2000 | Bolt | 5; | |
| 38 | 490В-01002 | Bolt | 14; | |
| 38 | 490В-01003 | Bolt | 4; | |
| 39 | 490В-01044 | Washer for cylinder head bolt | ; | |
| 40 | А498В-01005 | Cylinder liner | 4; | |
| 41 | 495В-01050 | Plug 60 | 1; | |
| 42 | 495В-01007 | Camshaft bushing | 2; | |
| 43 | 490В-01012 | Gasket | 1; | |
| 44 | 490В-01011-8 | Water pipe | 1; | |
| 45 | GB/T5783-2000 | Bolt | 2; | |
| 46 | 490В-01101 | Drain cock handle | 1; | |
| 47 | 490В-01103 | Drain cock core | 1; | |
| 48 | GB/T91-2000 | Pin 1x12 | 1; | |
| 49 | 495В-01102 | Valve body | 1; | |
| 50 | GB/T848-1985 | Washer | 2; | |
| 51 | 490В-01104 | Spring | 1; | |
| 52 | GB/T91-2000 | Pin 1x12 | 1; | |
| 53 | GB/T97.1-1985 | Washer 12 | 2; | |
| 54 | 495В-01015 | Oil injector | 4; | |
| 55 | GB/T5783-2000 | Bolt | 2; | |
| 56 | GB/T5783-2000 | Bolt | 5; | |
| 57 | GB/T62-1988 | Гайка | 1; | |
| 58 | GB/T97.1-1985 | Washer 12 | 1; | |
| 59 | 490В-34005 | Upper cover, air intake device | 1; | |
| 60 | 490В-34008 | Seal ring | 1; | |
| 61 | Filter(I) | Filter (I) | 1; | |
| 62 | 490В-34006 | Lower parts of breath adapter | 1; | |
| 63 | 490В-34013 | Air vent (II) | 1; | |
| 64 | 490В-34010 | Transition pipe | 2; | |
| 65 | 490В-34011 | Strut | 1; | |
| 66 | Filter(II) | Filter (II) | 1; | |
| 67 | 490В-34012 | Air vent (III) | 1; | |
| 68 | 495В-34003 | Plate | 1; | |
| 69 | 495В-34004 | Inlet drivepipe | 1; | |
| 70 | 490В-34002А | Fixed plate | 1; | |
| 71 | 495В-34007 | Air vent (I) | 1; | |
| 72 | GB/T67-2000 | Screw | 1; | |
| 73 | GB/T67-2000 | Screw | 5; | |
| 74 | GB/T93-1987 | Spring washer | 5; | |
| 75 | 490В-13002 | Plate | 1; | |
| 76 | 495BPG-15200 | Engine front bracket | 1; | |
| 77 | 495BPG-15100 | Engine front bracket | 1; | |
| 78 | GB/T93-1987 | Spring washer | 8; | |
| 79 | GB/T5783-2000 | Bolt | 8; | |
| 80 | GB/T97.1-1985 | Washer 12 | 8; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
