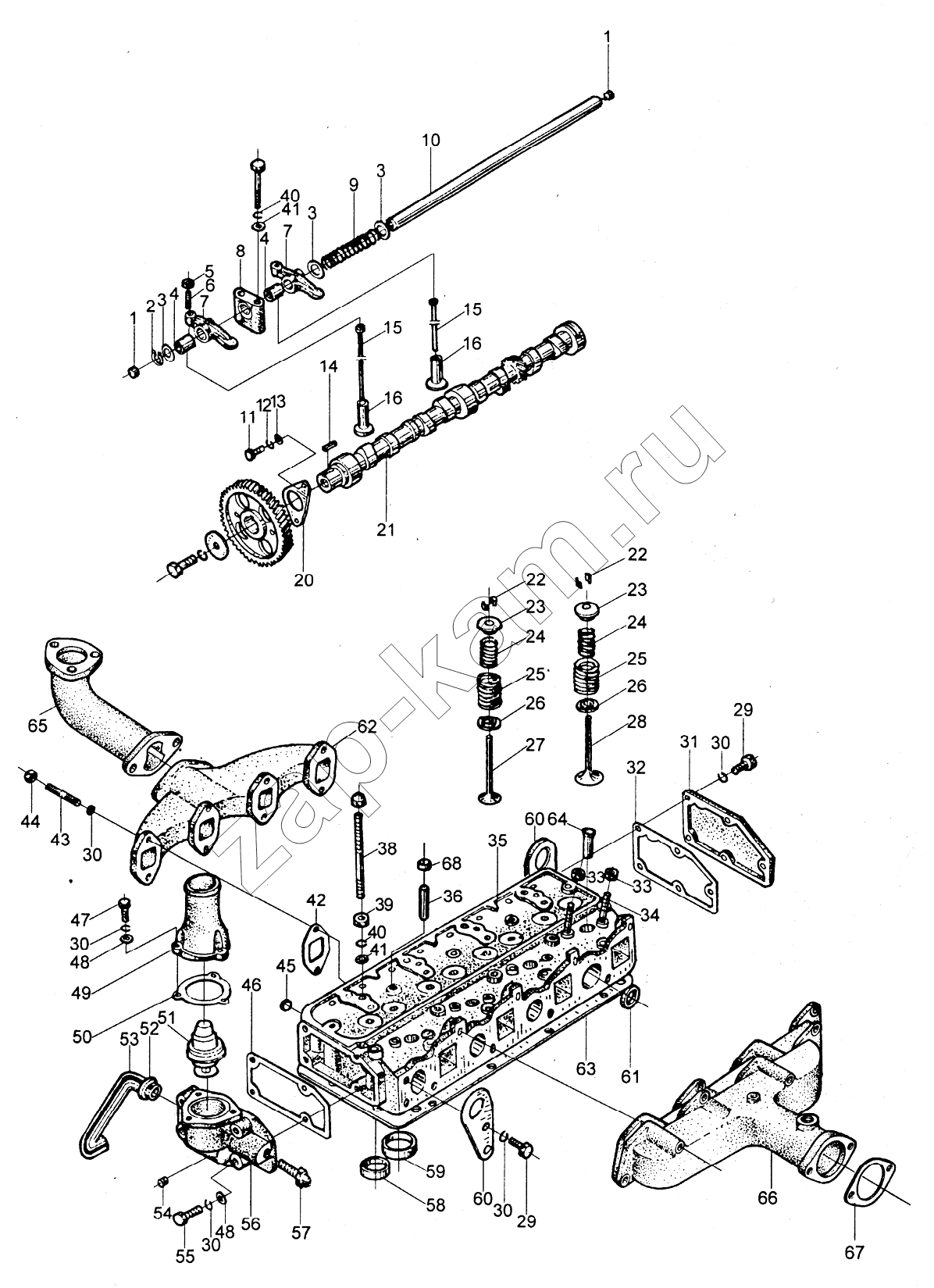

498ВТ Cylinder head and gas exchanging system assembly
/ XINCHAI A498BPG
1
1
2
3
3
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
15
16
16
20
21
22
22
23
23
24
24
25
25
26
26
27
28
29
29
30
30
30
30
30
31
32
33
33
34
35
36
38
39
40
40
41
41
42
43
44
45
46
47
48
48
49
50
51
52
53
54
55
56
57
58
59
60
60
61
62
63
64
65
66
66
67
68
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 490В-03018 | Plug 12 | 2; | - | |
| 2 | GB/T894.1-1986 | Snap ring 20 | 2; | - | |
| 3 | GB/T848-1985 | Washer | 8; | - | |
| 4 | 490В-03212А | Valve rocker arm bushing | 8; | - | |
| 5 | GB/T6171-2000 | Nut | 8; | - | |
| 6 | 490В-03201 | Adjusting screw for valve clearance | 8; | - | |
| 7 | 490В-03211А | Valve rocker arm | 8; | - | |
| 8 | 490В-03202 | Seat | 4; | - | |
| 9 | 490В-03203 | Spring | 3; | - | |
| 10 | 490В-03204 | Shaft | 1; | - | |
| 11 | GB/T5783-2000 | Bolt | 6; | - | |
| 12 | GB/T93-1987 | Spring washer | 17; | - | |
| 13 | GB/T97.1-1985 | Washer 12 | 2; | - | |
| 14 | GB/T1096-1979 | Key | 1; | - | |
| 15 | 495В-06003 | Push rod | 8; | - | |
| 16 | 490В-06002 | Push tappet | 8; | - | |
| 20 | 490В-02008 | Thrust plate for camshaft | 1; | - | |
| 21 | 495В-06001 | Camshaft | 1; | - | |
| 22 | 490В-03006 | Split valve retainer | 16; | - | |
| 23 | 490В-03007 | Valve spring seat,upper | 8; | - | |
| 24 | 490В-03005 | Valve spring,inner | 8; | - | |
| 25 | 490В-03004 | Valve spring, outer | 8; | - | |
| 26 | 490В-03011 | Lower seat, valve spring | 8; | - | |
| 27 | 495В-03015 | Exhaust valve | 4; | - | |
| 28 | А498В-03014 | Intake valve | 4; | - | |
| 29 | GB/T5783-2000 | Bolt | 4; | - | |
| 30 | GB/T93-1987 | Spring washer | 17; | - | |
| 31 | 490В-03012 | Rear cover | 1; | - | |
| 32 | 490В-03013 | Gasket | 1; | - | |
| 33 | GB/T56-1988 | Nut | 8; | - | |
| 34 | GB/T899-1988 | Stud | 8; | - | |
| 35 | 498В-03101 | Cylinder head | 1; | - | |
| 36 | 490В-03102 | Valve guide | 8; | - | |
| 38 | 490В-03001А | Bolt | 4; | - | |
| 39 | GB/T6170-2000 | Nut | 4; | - | |
| 40 | GB/T93-1987 | Spring washer | 8; | - | |
| 41 | GB/T97.1-1985 | Washer 12 | 8; | - | |
| 42 | 495В-03003 | Gasket | 4; | - | |
| 43 | GB/T899-1988 | Stud | 8; | - | |
| 44 | GB/T6170-2000 | Nut | 8; | - | |
| 45 | 490В-03103 | Plug | 1; | - | |
| 46 | 490В-43005 | Thermostat gasket | 1; | - | |
| 47 | GB/T5783-2000 | Bolt | 3; | - | |
| 48 | GB/T97.1-1985 | Washer 12 | 7; | - | |
| 49 | 490ВТ-43001 | Thermostat cover | 1; | - | |
| 50 | 490В-43003 | Thermostat cover gasket | 1; | - | |
| 51 | 490В-43002 | Thermostat | 1; | - | |
| 52 | 490В-01074 | Connecting pipe | 1; | - | |
| 53 | 495В-43007 | Water pipe | 1; | - | |
| 54 | 490В-43008 | Plug NPT3/8 | 1; | - | |
| 55 | GB/T5782-2000 | Bolt | 4; | - | |
| 56 | 490В-43101 | Thermostat housing | 1; | - | |
| 57 | 490В-43009 | Water temperature sensor | 1; | - | |
| 58 | 495В-03108 | Exhaust valve seat | 4; | - | |
| 59 | А498В-03107 | Intake valve seat | 4; | - | |
| 60 | 490В-03009А | Hoisting bracket | 1; | - | |
| 61 | 490В-01078 | Plug 30 | 4; | - | |
| 62 | 485-08001 | Exhaust pipe | 1; | - | |
| 63 | А498В-01004 | Gasket | 1; | - | |
| 64 | 490В-03109 | Sleeve tube | 4; | - | |
| 65 | 490 ВТ-08003 | Exhaust adapter | 1; | - | |
| 66 | 490 ВТ-09002 | Intake pipe | 1; | - | |
| 66 | 490В - 09002 | Intake pipe | 1; | - | |
| 67 | 490 ВТ-09004 | Paper gasket | 1; | - | |
| 68 | 498-03016 | Oil seal | 8; | - | |
| 69 | 490 В-54000 | Air ealorifier | 1; | - | |
| 70 | 490 В-09003 -7 | Intake adapter | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
