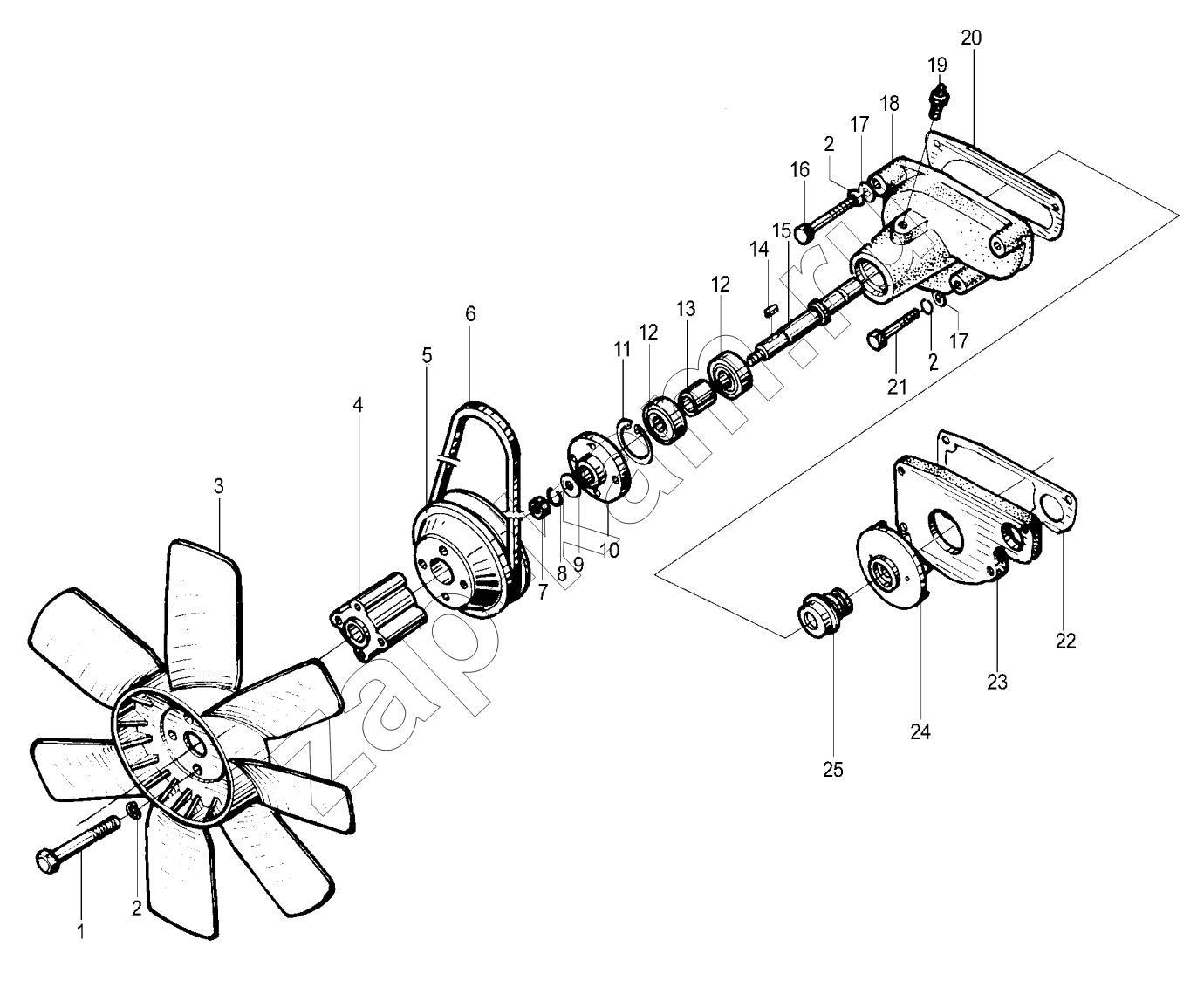

Cooling water pump and fan assembly
/ XINCHAI C490BPG
1
2
2
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | GB/T5782-2000 | Bolt | 4; | |
| 2 | GB/T93-1987 | Spring washer | 4; | |
| 3 | 490В-41100-1 | Fan | 1; | |
| 4 | 490В-41003-3 | Gasket | 1; | |
| 5 | 490В-41002 | Fan pulley | 1; | |
| 6 | 490В-41001 | Fan belt | 1; | |
| 7 | GB/T6178-2000 | Nut | 1; | |
| 8 | GB/T93-1987 | Spring washer | 1; | |
| 9 | GB/T97-1-2002 | Washer | 1; | |
| 10 | 490В-42001 | Fan pulley hub | 1; | |
| 11 | 490В-42011 | Snap ring 40 | 1; | |
| 12 | GB/T278-1989 | Bearing | 2; | |
| 13 | 490В-42003 | Sleeve spacer | 1; | |
| 14 | GB/T1099-1979 | Key | 1; | |
| 15 | 490В-42002 | Water pump shaft | 1; | |
| 16 | GB/T5782-2000 | Bolt | 1; | |
| 17 | GB/T97-1-2002 | Washer | 4; | |
| 18 | 490В-42004 | Water pump housing | 1; | |
| 19 | GB1152-1989 | Oil cup | 1; | |
| 20 | 490В-42005 | Gasket | 1; | |
| 21 | GB/T5782-2000 | Bolt | 3; | |
| 22 | 490В-42011 | Gasket | 1; | |
| 23 | 490В-42006 | Water pump clapboard | 1; | |
| 24 | 490В-42008 | Water pump impeller | 1; | |
| 25 | 490В-42009 | Water seal | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
