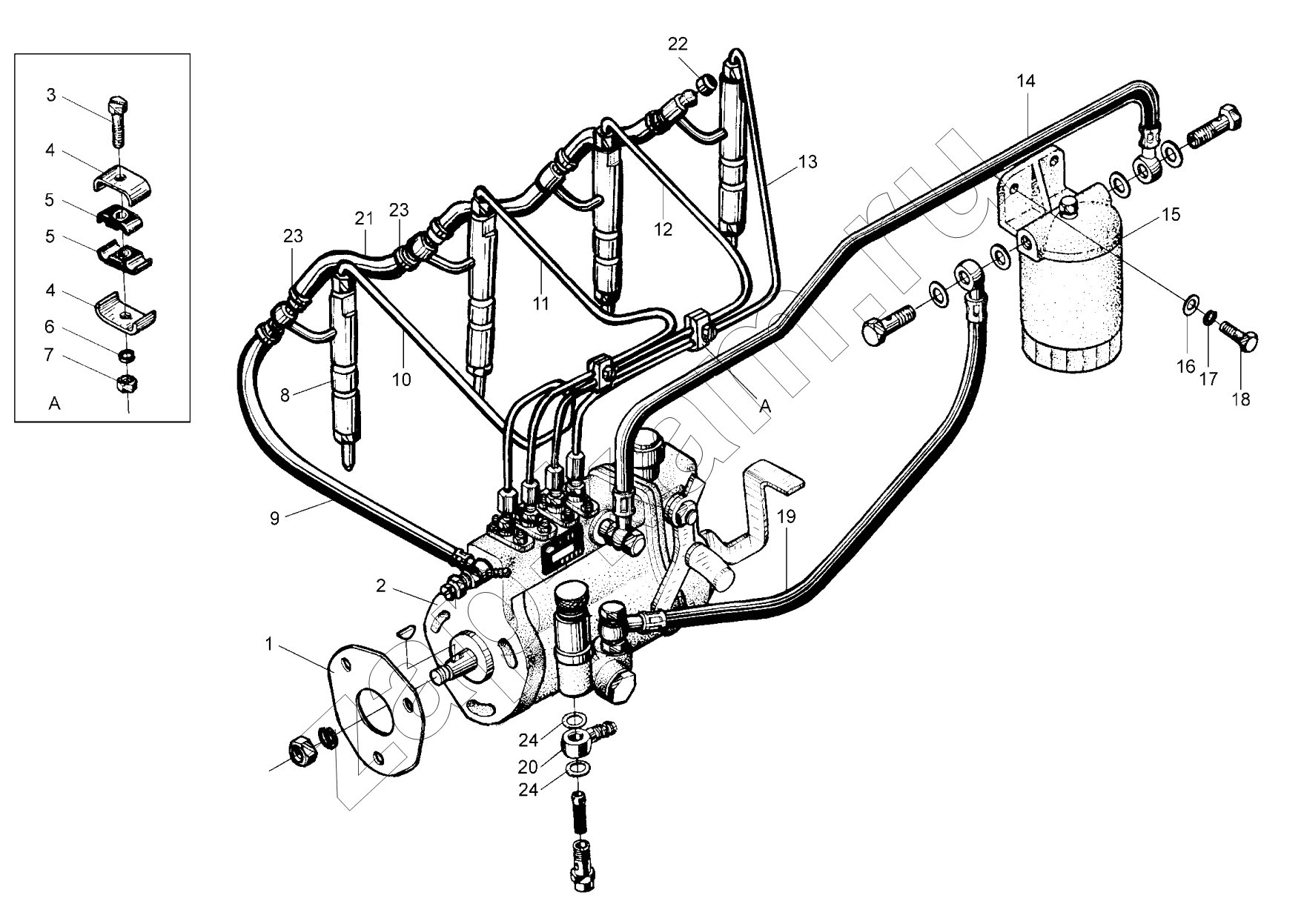

Fuel supply system assembly
/ XINCHAI C490BPG
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 490В-16011-1 | Gasket | 1; | |
| 2 | 490В-21000 | Fuel injection pump | 1; | |
| 3 | GB/T29-1-1988 | Bolt | 3; | |
| 4 | 490В-23501 | Clamp | 6; | |
| 5 | 490В-23502 | Rubber gasket | 6; | |
| 6 | GB/T93-1987 | Spring washer | 3; | |
| 7 | GB/T6172-2000 | Nut | 3; | |
| 8 | А490В-22000 | Fuel injector | 4; | |
| 9 | А490В-25100-1 | Injector leak-off pipe | 1; | |
| 10 | А490В-23101 | 1st cylinder high pressure fuel tube | 1; | |
| 11 | А490В-23201 | 2nd cylinder high pressure fuel tube | 1; | |
| 12 | А490В-23301 | 3rd cylinder high pressure fuel tube | 1; | |
| 13 | А490В-23401 | 4th cylinder high pressure fuel tube | 1; | |
| 14 | 490В-25200 | Fuel supply tube from fuel filter to injection pump | 1; | |
| 15 | 490В-24000А | Fuel filter | 1; | |
| 16 | GB/T97-1-2002 | Washer | 2; | |
| 17 | GB/T93-1987 | Spring washer | 2; | |
| 18 | GB/T5783-2000 | Bolt | 2; | |
| 19 | 490В-25300 | Fuel supply tube from supply pump to fuel filter | 1; | |
| 20 | 490В-25401-4 | Fuel supply pump connector | 1; | |
| 21 | 498В-25002 | Sebific duct | 3; | |
| 22 | 498В-25001 | Leakproof cap | 1; | |
| 23 | 498В-25004 | Clamp | 10; | |
| 24 | JB/T982-1977 | Springle Washer | 2; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
