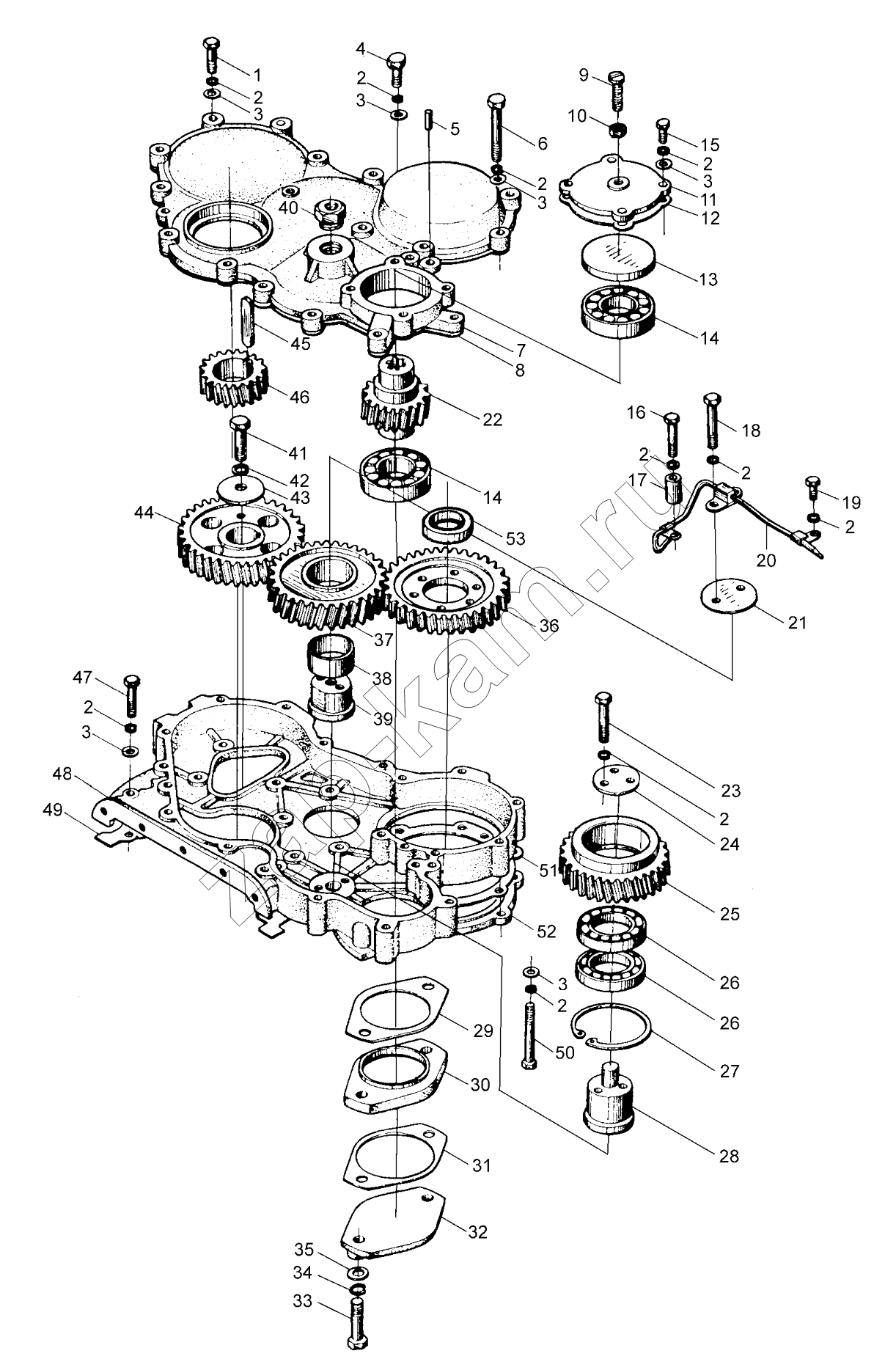

Timing gear train assembly
/ XINCHAI C490BPG
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | GB/T5782-2000 | Bolt | 2; | - | |
| 2 | GB/T859-1987 | Washer | 33; | - | |
| 3 | GB/T849-1987 | Washer | 36; | - | |
| 4 | GB/T5782-2000 | Bolt | 8; | - | |
| 5 | GB1192-2000 | Pin | 2; | - | |
| 6 | GB/T5782-2000 | Bolt | 8; | - | |
| 7 | 490BPG-160001 | Cover | 1; | - | |
| 8 | 490BPG-160002 | Gasket | 1; | - | |
| 9 | 490BPG-82014 | Adjusting screw | 1; | - | |
| 10 | GB/T6171-2000 | Nut | 1; | - | |
| 11 | 490BPG-82008 | Bearing cover | 1; | - | |
| 12 | 490BPG-82009 | Gasket | 1; | - | |
| 13 | 490BPG-82001 | End plate | 1; | - | |
| 14 | GB/T297-1994 | Bearing | 2; | - | |
| 15 | GB/T5782-2000 | Bolt | 4; | - | |
| 16 | GB/T5782-2000 | Bolt | 2; | - | |
| 17 | 490BPG-82003 | Washer | 1; | - | |
| 18 | GB/T5782-2000 | Bolt | 2; | - | |
| 19 | GB/T5782-2000 | Bolt | 1; | - | |
| 20 | 490BPG-02100 | Oil pipe | 1; | - | |
| 21 | 490В-02012-1 | Idler gear shaft plate | 1; | - | |
| 22 | 490BPG-82007 | Hydraulic pump gear | 1; | - | |
| 23 | GB/T5782-2000 | Bolt | 3; | - | |
| 24 | 490BPG-82006 | Snap plate | 1; | - | |
| 25 | 490BPG-82004 | Bridge gear | 1; | - | |
| 26 | GB/T276-1994 | Bearing | 2; | - | |
| 27 | GB/T893-1-1986 | Snap ring | 1; | - | |
| 28 | 490BPG-82005 | Gear shaft | 1; | - | |
| 29 | 490BPG-82010 | Gasket | 1; | - | |
| 30 | 490BPG-82011 | Connecting plate | 1; | - | |
| 31 | 490BPG-82012 | Gasket | 1; | - | |
| 32 | 490BPG-82013 | End cover | 1; | - | |
| 33 | GB21-76 | Bolt | 2; | - | |
| 34 | GB/T859-1987 | Washer | 8; | - | |
| 35 | GB/T849-1987 | Washer | 8; | - | |
| 36 | 490BPG-02003 | Pump timing gear | 1; | - | |
| 37 | 490BPG-02006 | Timing idle gear | 1; | - | |
| 38 | 490В-02005 | Timing idle gear bush | 1; | - | |
| 39 | 490В-02004 | Timing idle gear shaft | 1; | - | |
| 40 | 490BPG-82002 | Screw | 1; | - | |
| 41 | GB/T5782-2000 | Bolt | 1; | - | |
| 42 | GB/T859-1987 | Washer | 1; | - | |
| 43 | 490В-02011 | Camshaft timing gear plate | 1; | - | |
| 44 | 490BPG-02009 | Camshaft timing gear | 1; | - | |
| 45 | GB/T1096-1979 | Key | 1; | - | |
| 46 | 490BPG-02007 | Crankshaft timing gear | 1; | - | |
| 47 | GB/T5782-2000 | Bolt | 1; | - | |
| 48 | 490BPG-16003 | Timing gear housing | 1; | - | |
| 49 | 490BPG-16009-1 | Gasket | 1; | - | |
| 50 | GB/T5782-2000 | Bolt | 2; | - | |
| 51 | 490В-16008 | Gasket | 1; | - | |
| 52 | 490В-16004-1 | Connecting flange | 1; | - | |
| 53 | 495В-02105 | Axle sleeve | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
