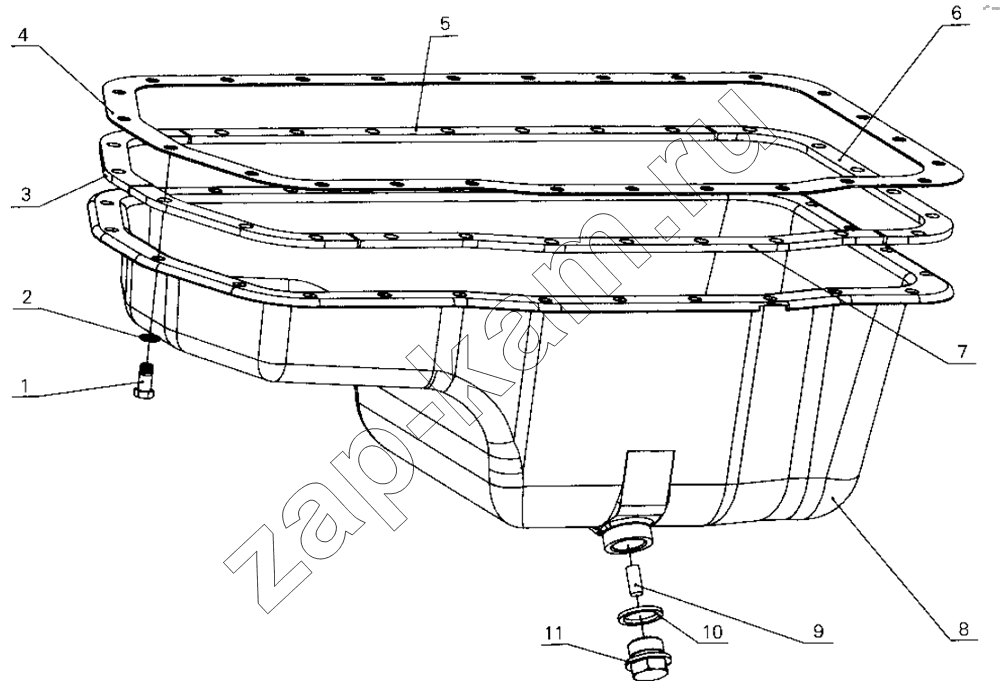

G0100-1009000B Oil sump assembly
/ Yuchai YC4112ZQ (ZLQ)

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано G0100-1002000 Cylinder block assembly G0100-1002030 Timing gear chamber parts B30-1003000 Cylinder head and cylinder head cover G0100-1004000 Piston and connecting rod assembly B30-1005000 Crankshaft and flywheel assembly B30-1006000 Camshaft assembly B30-1007000 Valve train B30-1008000 Intake manifold parts B30-1008020 Exhaust manifold parts G0100-1009000B Oil sump assembly G0100-1010000 Oil strainer assembly B30-1011000 Oil pump assembly G0100-1012000 Oil filter assembly 530-1013000C Oil cooler assembly E0200-1014000 Breather assembly G0100-1104000 Fuel line assembly G0100-1105000 Fuel filter assembly B30-1111000 Fuel injection pump assembly G0100-1112000 Fuel injector assembly G0100-1118000 Turbocharger assembly 530-1305000 Water drain cock assembly G0100-1307000 Warm pump assembly G0100-1308000 Fan assembly G0100-1600000 Clutch assembly G0100-3407000 Steering pump components B30-3509000 Air compressor assembly B30-3701000 Generator assembly B30-3708000 Starter assembly G0100-3800000 Gauge parts

1

2

3

4

5

6

7

8

9

10

11

Поз.	Артикул		Название детали	Кол-во
1	Q150B1025		Болт M10x25	26;
2	Q40310		Шайба 10	26;
3	E0100-1009011		Oil pan gasket III	2;
4	530-1009011		Прокладка масляного поддона	1;
5	E0100-1009031		Oil pan gasket I	4;
6	E0100-1009034		Oil pan gasket IV	2;
7	E0100-1009032		Oil pan gasket II	1;
8	E0100-1009020		Oil pan welded unit	1;
9	6105Q-1009032A		Магнит	1;
10	JB/T9822		Compound seal washer 27	1;
11	6105Q-1009031A		Drain oil screw plug	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
