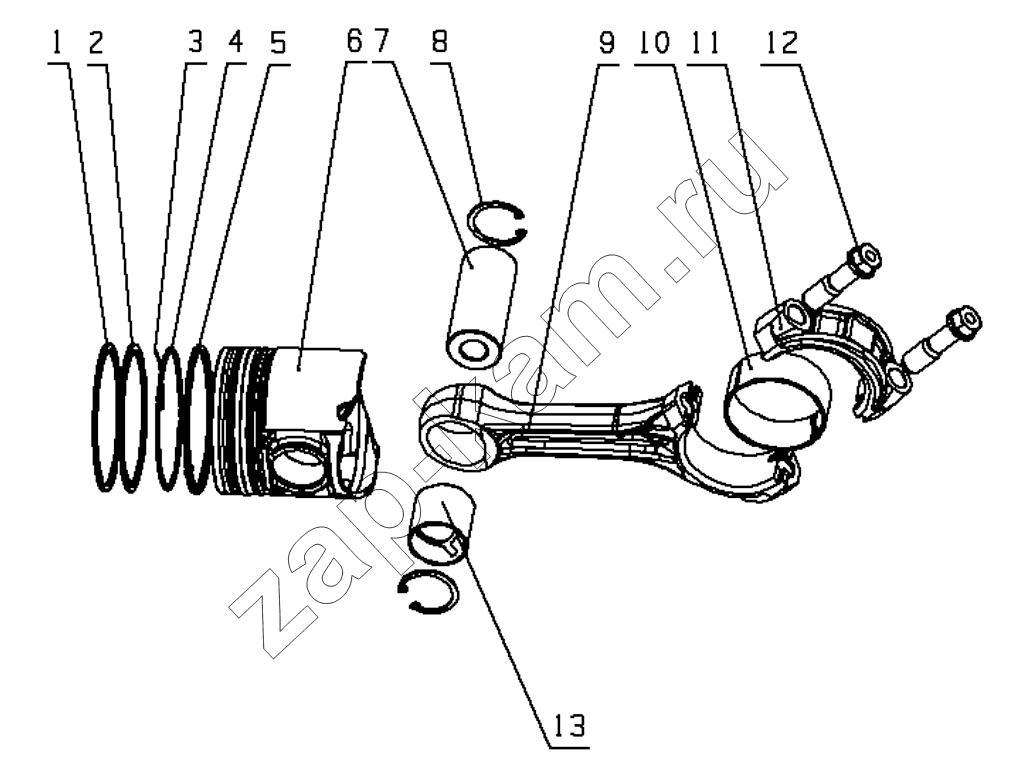

A8600-1004000/09 Piston Connecting Rod Assembly
/ Yuchai YC4A115Z-T20

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано A8601-1002000/05 Cylinder Block Assembly A8601-1002200/10 Gear Housing Parts A9L00-1003000/01 Cylinder Head and Cylinder Head Cover Assembly A8600-1004000/09 Piston Connecting Rod Assembly A8601-1005000/03 Crankshaft Vibration Damper Assembly A8600-1006000/03 Camshaft Assembly B8800-1007000/04 Valve Train Mechanism Assembly B9900-1009000/04 Oil Sump Assembly A8601-1028000/05 Dipstick Assembly A8601-1010100/03 Оil Strainer Assembly B8800-1011000/07 Oil Pump Subassembly B8800-1012000/03 Oil Filter Assembly A93S0-1013000/01 Oil Cooler Assembly B9V04-1008100/02 and D7E01-1008500/03 Intake Pipe and Intake Connecting Pipe Part D0200-1008200/10 Exhaust Manifold Parts B9900-1104000/07 Fuel Supply Pipeline Assembly A8FW0-1105000/04 Fuel Filter Assembly B7616-1109000/03 Air filter A8Q00-1111000/01 Fuel Injection Pump Assembly 330-1112000/02 Injector Assembly B9903-1113000/02 Injection pump accessory Assembly A8FW1-1118000/02 Turbocharger Assembly A8FW1-1303000/01 Radiator Water Pipe and hose Assembly B8860-1306000/09 Thermostat Assembly 631-1305000/06 Water Drain Cock Assembly A8C03-1307000/05 Water Pump Assembly B7A00-1308000/05 Fan Assembly B9905-1600000/02 Power Takeoff Assembly A8C03-3509000/07 Pneumatic Air Compressor Assembly A8601-3701000/04 Generator Assembly D36G3-3708000/01 Starter Assembly A8601-3407000/02 Steering pump assembly B0000-3904000/01 Data Plate

1

2

3

4

5

6

7

8

9

10

11

12

13

Поз.	Артикул		Название детали	Кол-во
1	A6000-1004002		Gas ring	1;
2	A6000-1004003		Oil scraper ring	1;
3	B3000-1004033		Latch	1;
4	B3000-1004032		Support spring	1;
5	A6000-1004100		Oil ring parts	1;
6	A8600-1004001SF6		Piston	1;
7	430-1004019		Штифт поршня	1;
8	Q43040		Стопорное кольцо 40	2;
9	A8300-1004201		Connecting rod body	1;
10	A8600-1004005		Вкладыш шатуна	2;
11	A8300-1004203		Крышка шатуна	1;
12	6105Q-1004054		Болт шатуна	2;
13	A3000-1004202		Втулка головки шатуна	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
