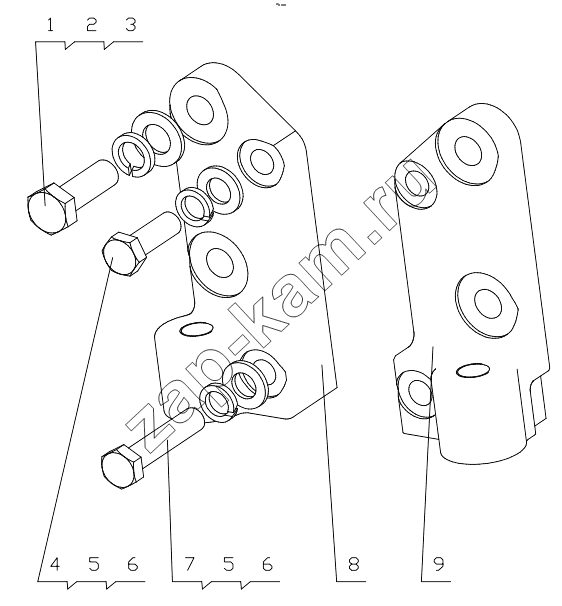

B8800-1001000/01 Engine Suspension Assembly
/ Yuchai YC4B105Z-T20

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано B8800-1001000/01 Engine Suspension Assembly 2B9XT0-1002000/01 Cylinder Block Assembly 3B9XT0-1002200/05 Gear Housing Parts B8802-1003000/06 Cylinder Head & Cylinder Head Cover Assembly 5B8E00-1004000/04 Piston Connecting Rod Assembly 6B9200-1005000/14 Crankshaft and flywheel Assembly 7D30-1006000A/06 Camshaft Assembly 8B8800-1007000/04 Valve Train Mechanism Assembly 9B9200-1008010/07 Intake Pipe Assembly 10B7NT0-1008200/03 Exhaust Pipe Parts 11B7NT0-1009000/02 Oil Sump Assembly 12B8800-1028000/01 Oil Dipstick Assembly 13B8800-1010000/06 Oil Strainer Assembly 14B8800-1011000/07 Oil Pump Subassembly 15B8805-1012000/02 Oil Filter Assembly 16B9200-1013000/07 Oil Cooler Assembly B8800-1104000/16 Fuel Supply Pipeline Assembly B8800-1105000/12 Fuel Filter Assembly 19B7NT0-1111000/01 Fuel Injection Pump Assembly 20J3200-1112000/05 Injector Assembly 21B9210-1118000/05 Turbocharger Assembly 22A8ET0-1303000/03 & A8ET0-1306000/03 Radiator Water Pipe & Hose Assembly & Thermostat Assembly 23631-1305000/06 Water Drain Cock Assembly 24B8805-1307000/08 Water Pump Assembly 25A8ET0-1308000/01 Fan Assembly 26B8801-1600400/20 Flywheel Case 27B9XT0-3509000/01 Pneumatic Air Compressor Assembly 28B8800-3701000A/13 Generator Assembly 29A8300-3708000/02 Starter Assembly 30B7N00-3904000/01 Data Plate

1

2

3

4

5

5

6

6

7

8

9

Поз.	Артикул		Название детали	Кол-во
1	Q150B1440		Болт M14X40	4;
2	Q40314		Шайба 14	4;
3	Q40114		Шайба 14	4;
4	Q150B1235		Болт М12х35	2;
5	Q40312		Шайба 12	4;
6	Q40112		Шайба 12	4;
7	Q150B1255TF2		Болт M12x55	2;
8	B8800-1001501C		Left bracket	1;
9	B8800-1001601C		Right bracket	1;
