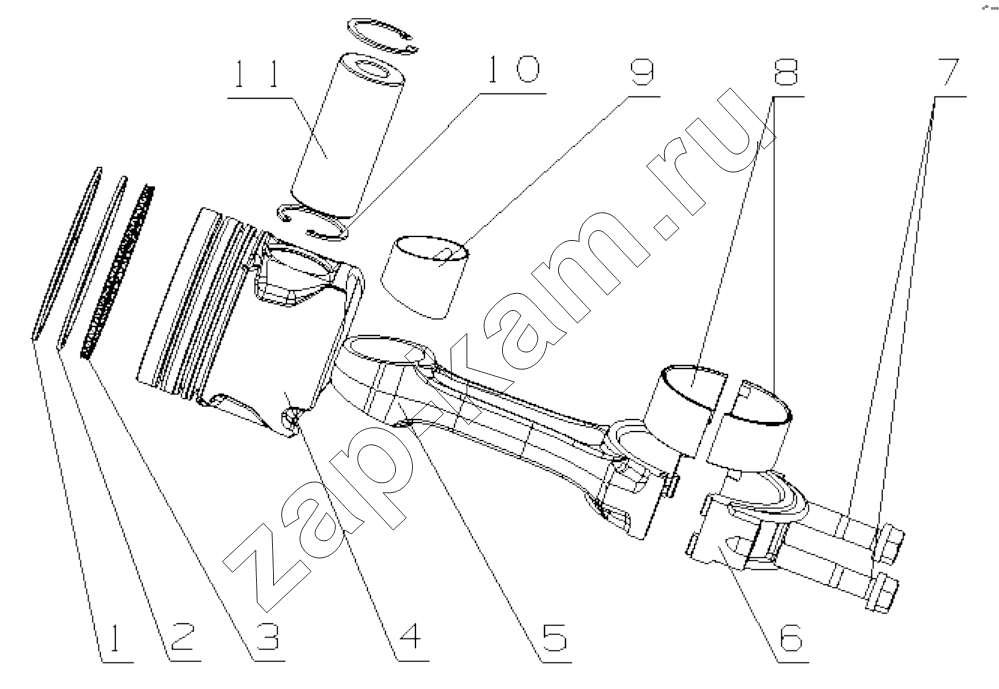

D4A00-1004000 Piston and con-rod Assembly
/ Yuchai YC4D140N-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано D4300-1002000 Cylinder block assembly D4300-1002200 Gear Housing Parts D4A00-1003000 Cylinder head and Cylinder head cover assembly D4A00-1004000 Piston and con-rod Assembly D43Y1-1005000 Crankshaft damper assembly D4300-1006000 Camshaft Assembly D4000-1007000 Valve Train Assembly D4G02-1008000 Exhaust manifold parts D1010-1009000 Oil Sump Assembly D5000-1010000 Oil Strainer Assembly D30-1011000A Oil Pump Assembly D5611-1012000D Oil-filter Assembly D4300-1013000A Oil Cool Assembly D0303-1014000A Crankcase ventilation device assembly D4AS4-1028000 Oil Dipstick Assembly D4AD1-1107000 Gas Filter Assembly G2K00-1107000 Gas Filter Assembly D4G02-1113000 Gas supply system D4G02-1118000 Turbocharger Assembly CT-GC04RLLN5-D4C1 Catalytic converting system D4G02-1303000 Radiator water pipe and hose assemblies 631-1305000 Water drain tap Assembly 530-1306004A Thermostat D4G01-1307000 Water Pump Assembly D4G02-1308000 Air Fan Assembly D4G02-1600000 Power Takeoff Assembly D08VK-3407000 Vacuum system Assembly D5J51-3701000 Alternator Assembly D4AD1-3705000 Ignition system Assembly E36S2-3708000 Starter Assembly D08VK-3407000 Steering Pump Assembly D4G02-3823000 Controlling System Assembly D4AD8-3800000 Instrument sensor Assembly D4A00-3904000 Nameplate Assembly D10F3-8104000 Nameplate Assembly

1

2

3

4

5

6

7

8

8

10

11

11

Поз.	Артикул		Название детали	Кол-во
1	D4300-1004002		1st ring	4;
2	D4300-1004003		2nd ring	4;
3	D4300-1004100		Oil ring assembly	4;
4	D4A00-1004001A		Piston	4;
5	E5000-1004201		Con-rod body	4;
6	E5000-1004202		Con-rod sleeve	4;
7	530-1004054		Болт шатуна	8;
8	530-1004019		Корпус шатуна	4;
8	D4A00-1004007		Tile	;
10	Q43040		Стопорное кольцо 40	8;
11	430-1004019		Штифт поршня	4;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
