F3000-1011000/05 Oil Pump Assembly
/ Yuchai YC4F90-30

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано F50D1-1002000/05 Cylinder Block Assembly F6000-1002100/04 Cylinder Block Parts F50D1-1002200/08 Gear Housing Parts F5001-1003000/01 Cylinder Head and Cylinder Head Cover Assembly F5000-1004000/03 Piston and Connecting Rod Assembly F51J1-1005000/01 Crankshaft Vibration Damper Assembly F3700-1006000/05 Camshaft Assembly F3000-1007000/11 Valve Train System Assembly F31L1-1009000/03 Oil Sump Assembly F39L1-1028000/01 Oil Dipstick Assembly F3000-1010000A/05 Strainer Assembly F3000-1011000/05 Oil Pump Assembly 186-1012000/04 Oil Filter F50J1-1013000/04 Oil Cooler Assembly F50D1-1014000/05 Crankcase Ventilation Device Assembly F5000-1015000/06 Engine Start Assist Equipment Assembly F30J1-1001000/01 Engine Suspension Assembly F50J1-1104000/05 Supply System Pipeline Assembly F50J1-1105000/09 Fuel Filter Assembly F5000-1111000/09 Injection Pump Assembly F5000-1112000/03 Injector Assembly F51J1-1118000/01 Turbocharger Assembly F50D1-1008100/05 and F50J1-1008500/03 Intake Pipe Parts and Intake Connecting Pipe Parts F30J1-1008200/06 F3000-1008400/05 Exhaust Pipe Parts and Exhaust Pipe Cover Parts 231-1305000/06 Water Drain Switch F50J1-1306000/07 Thermostat Assembly F31D1-1307000/04 Water Pump Assembly F30D3-1308000/03 Fan Assembly F51J2-1600000/01 Power Output Assembly F50J1-3407000/01 Steering Pump Assembly F50D1-3509000/03 Pneumatic Air Compressor Assembly F50J1-3701000/01 Alternator Assembly F7200-3708000/04 Starter Assembly F51J1-3823000/06 Control System Assembly F50J1-3800000/02 Instrument and Sensor Assembly F5100-3904000A/01 Nameplate Assembly

1

2

3

4

5

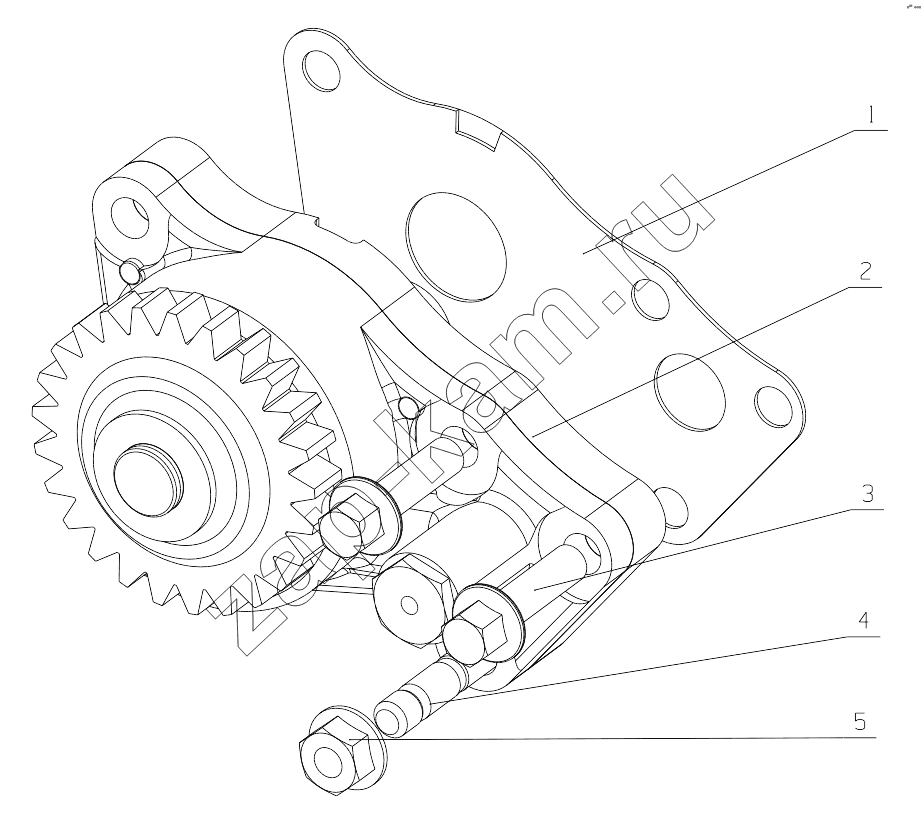

Поз.	Артикул		Название детали	Кол-во
1	F3000-1011007		Прокладка масляного насоса	1;
2	F3000-1011100		Часть масляного насоса	1;
3	Q/YC207-0830		Болт	4;
4	Q1200830TF2		Шпилька M8x30	1;
5	Q32008		Гайка M8	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
