G4700-1004000 Piston and connecting rod
/ Yuchai YC4G180-20

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано G0219-1001000 Engine mounting assembly G05LA-1002000 Cylinder block assembly G06CA-1002200 Gear housing assembly G0803-1003000 Cylinder head and cylinder cover assembly G4700-1004000 Piston and connecting rod G0829-1005000 Crankshaft Vibration Damper Assembly B30-1006000 Crankshaft sets B30-1007000 Valve train system G0401-1008100 Intake manifold assembly G0100-1008200 Exhaust manifold assembly G0404-1009000 Oil Sump Assembly G0202-1028000 Oil Dipstick Assembly G0100-1010000 Oil Strainer Assembly B30-1011000 Oil Pump Assembly A3100-1012000 Oil filter assembly G0100-1013000 Oil Cooler Assembly E0200-1014000 Breather Assembly G0228-1015000 Engine starting accessory device assembly G0408-1104000 Fuel Supply Lines Assembly G0803-1105000 Fuel filter assembly G0800-1111000A Injection Pump Assembly G02CA-1130000 Fuel Injection Pump Accessory Assembly G0400-1112000 Injector Parts G0803-1115000 Oil Lock-off System Assembly G0405-1118000 Turbocharger Assembly G0206-1305000 Water Drain Cock Assembly G0219-1306000 Thermostat Assembly G0211-1307000 Water pump Assembly G0803-1600000 Power Output Assembly G0219-3407000 Steering Pump Assembly G0219-3509000 Pneumatic Air Compressor Assembly G0404-3701000 Alternator Assembly G0202-3708000 Starter Assembly A3536-3800000 Instrument & Sensor Assembly G0803-3904000 Nameplate

1

2

3

4

5

6

7

8

9

10

11

12

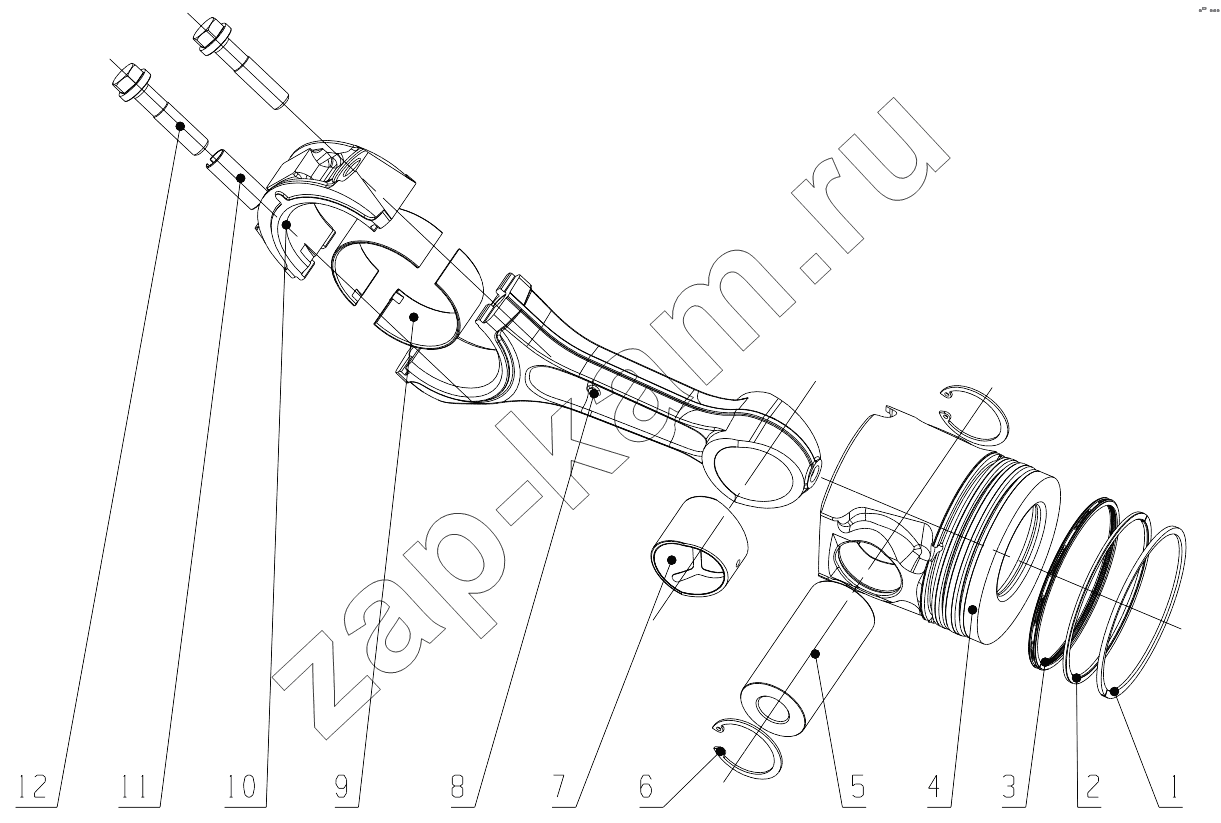

Поз.	Артикул		Название детали	Кол-во	Цена
1	G4700-1004002		Кольцо	6;	-
2	G4700-1004003		Маслосбрасывающее кольцо	6;	-
3	G4700-1004100		Части маслоудерживающего кольца	6;	-
4	G4700-1004001A		Поршень	6;	-
5	150-1004018		Штифт поршня	6;	-
6	Q43045		Стопорное кольцо 45	12;	-
7	150-1004202		Втулка шатуна	6;	-
8	150-1004032		Корпус шатуна	6;	-
9	G4700-1004019A		Корпус подшипника шатуна	12;	-
10	150-1004033		Крышка шатуна	6;	-
11	150-1004035		Установочная муфта	6;	-
12	150-1004034		Болт шатуна	12;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
