G0100-1013000/05 Oil Cooler Assembly
/ Yuchai YC4G180N-40

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано G2CLA-1002000/05 Cylinder Block Assembly G2CYA-1002200A/02 Timing Gear Housing Assembly G2BHA-1003000/03 Cylinder Head and Cylinder Head Cover Assembly G6400-1004000/08 Piston and Connecting Rod G2C0B-1005000/03 Crankshaft Vibration Damper Assembly G2J00-1006000/02 Camshaft Assembly G2C00-1007000/01 Valve Train System Assembly G2J00-1008100/07 and G2J00-1008500/03 Intake Manifold Parts and Intake Connecting Pipe Parts G2J00-1008200/05 and G2J00-1008400/01 Exhaust Manifold Parts and Exhaust Pipe Shield Parts G1200-1009000/02 Oil Sump Assembly E0817-1028000/01 Oil Dipstick Assembly G0100-1010000/08 Oil Strainer G2000-1011000/01 Oil Pump Assembly A3100-1012000/02 Oil Filter Assembly G0100-1013000/05 Oil Cooler Assembly G2B00-1014000/02 Crankcase Ventilation Assembly G040J-1001000/02 Engine Suspension Assembly G2J0D-1205000/01 Catalytic Convertor Assembly G2JFA-1113000/03 Gas Supply Device Assembly G2JFA-1118000/01 Turbocharger Assembly J5700-1107000/08 Low Pressure Gas Filter Assembly J5400-1107000/06 Gas Filter Assembly G0206-1305000/10 Water Drain Cock Assembly G2C97-1306000/03 Thermostat Assembly G2BHA-1307000/09 Water Pump Assembly G08YB-1600000/03 Power Output Assembly G2HFA-3407000/05 Steering Pump Assembly G2G0B-3509000/04 Pneumatic Air Compressor Assembly G0804-3701000/11 Alternator Assembly G2C00-3705000/21 Ignition System Assembly E24FH-3708000/01 Starter Assembly E0807-3800000/01 Instrument and Sensor Assembly G2J86-3823000/01 Control System Assembly G2J00-3904000/01 Nameplate Assembly

1

2

3

4

5

6

7

8

9

10

11

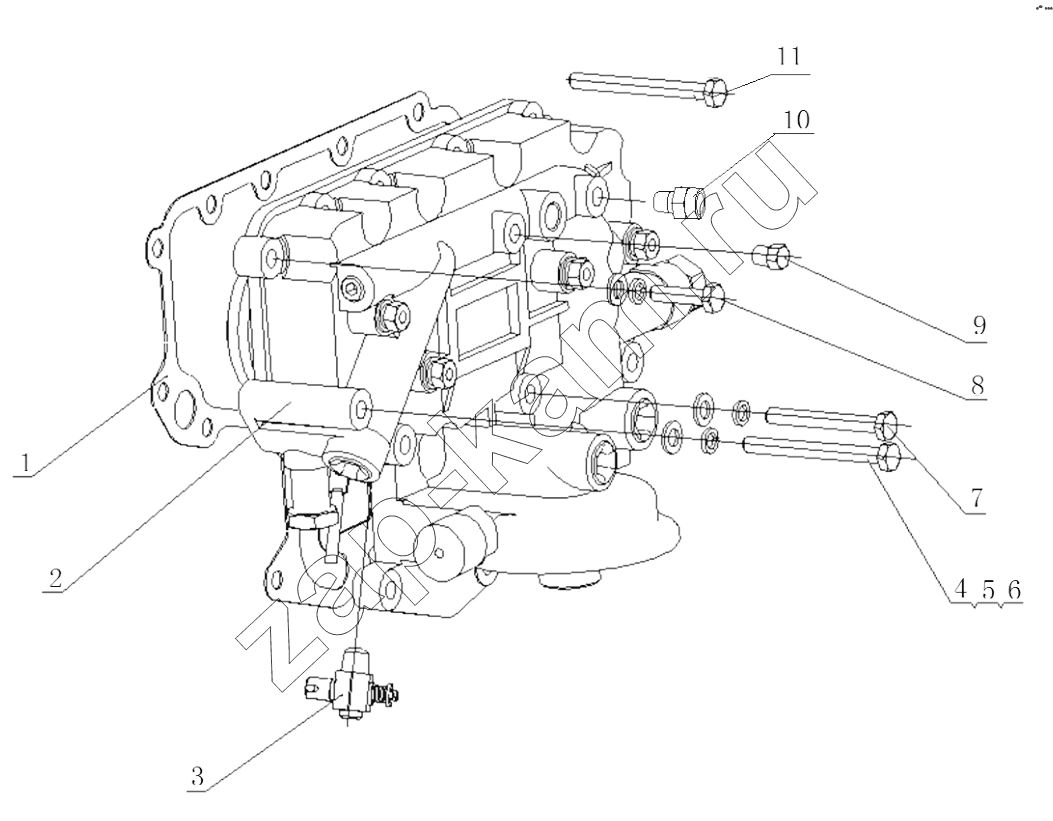

Поз.	Артикул		Название детали	Кол-во
1	530-1013012B		Oil cooler cover gasket	1;
2	G0100-1013100		Топливный охладитель	1;
3	231-1305000		Кран водоспуска	1;
4	Q150B0880		Болт M8x80	3;
5	Q40108		Шайба 8	14;
6	Q40308		Шайба 8	14;
7	Q150B0865		Болт M8x65	1;
8	Q150B0832		Болт	10;
9	Q618B01		Пробка NPT1/8	1;
10	6QA1-1002174		Соединитель труб	1;
11	Q150B0895		Болт M8x95	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
