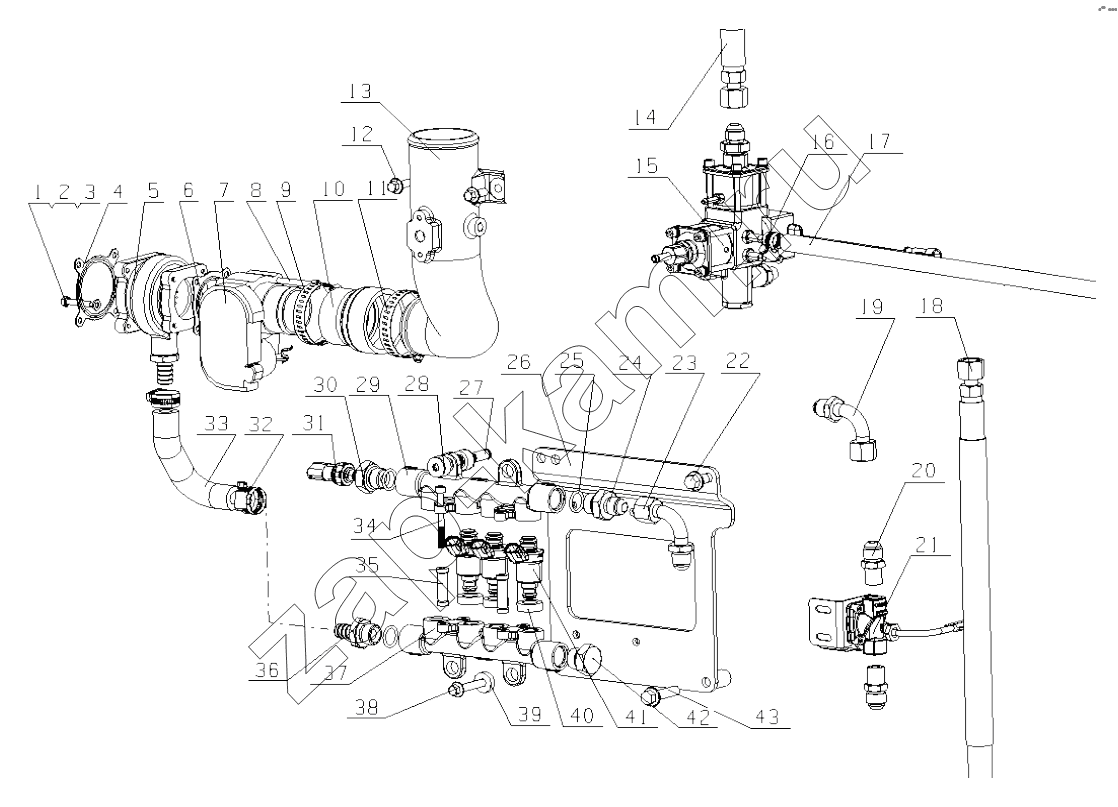

G2S0B-1113000/03 Gas Supply Device Assembly
/ Yuchai YC4G190N-50
J5700-11132B7
J5700-11132B6
J5700-11132B5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| J5700-11132B7 | J5700-11132B7 | Filter frame | 1; | |
| J5700-11132B6 | J5700-11132B6 | Solenoid valve coil | 1; | |
| J5700-11132B5 | J5700-11132B5 | High pressure regulator filter core | 1; | |
| 1 | Q150B0630 | Болт M6X30 | 4; | |
| 2 | Q40306 | Шайба 6 | 4; | |
| 3 | Q40106 | Шайба 6 | 4; | |
| 4 | D4300-1113554A | Mixer gasket I | 1; | |
| 5 | D4300-1113540 | Mixer | 1; | |
| 6 | D4300-1113555A | Mixer gasket II | 1; | |
| 7 | G2K00-1113640 | Electronic throttle | 1; | |
| 8 | Q218B0650TF2 | Винт | 4; | |
| 9 | Q67664 | Петля обруча | 1; | |
| 10 | 294-1307003 | Hose | 1; | |
| 11 | Q67670 | Кольцевой обруч 70 | 1; | |
| 12 | Q1840820TF2 | Болт M8x20 | 2; | |
| 13 | G2K00-1113601A | Air inlet connecting pipe,air throttle | 1; | |
| 14 | G6800-1113302 | Соеденительная трубка | 1; | |
| 15 | MKB00-1113240A-P64 | High pressure regulator | 1; | |
| 16 | Q67616 | Хомут обруча | 4; | |
| 17 | J5700-1113282 | Hot water filling rubber pipe | 2; | |
| 18 | G6800-1113302 | Соеденительная трубка | 1; | |
| 19 | G6600-1113C60 | Air outlet connecting pipe | 1; | |
| 20 | G6700-1113303 | Connector | 2; | |
| 21 | J57A0-1113301A | Low pressure fuel cut-off valve parts | 1; | |
| 22 | Q1841016TF2 | Болт M10x16 | 2; | |
| 23 | G6600-1113C60 | Air outlet connecting pipe | 1; | |
| 24 | J4C00-1113912 | Air intake pipe | 1; | |
| 25 | YC208-B01800F | Уплотнительное кольцо 2,65x18 | 3; | |
| 26 | G2K00-1113950C | Bracket | 1; | |
| 27 | MKB00-1113906 | Spacer sleeve | 4; | |
| 28 | MKB00-1113907 | Anti-vibration pad | 8; | |
| 29 | D4400-1113902 | Nature gas outtake common rail pipe | 1; | |
| 30 | K1A00-1113905 | Plug | 1; | |
| 31 | MKB00-38231J0 | Nature gas temperature & pressure sensor | 1; | |
| 32 | Q67627 | Кольцевой хомут 27 | 2; | |
| 33 | G2K00-1113551A | Mixer connecting pipe | 1; | |
| 34 | Q218B0660TF2 | Винт M6X60 | 4; | |
| 35 | MKB00-1113903 | Support sleeve | 4; | |
| 36 | D4400-1113913 | Gas outtake joint | 1; | |
| 37 | D4400-1113901 | Nature gas intake common rail pipe | 1; | |
| 38 | Q1840850TF2 | Болт M8x50 | 4; | |
| 39 | G2R00-1113911 | Cushion block | 4; | |
| 40 | K1A00-1113909 | Thrust gum cover | 3; | |
| 41 | K1A00-1113940SF1 | Metering valve | 3; | |
| 42 | MYB00-1113905 | Plug | 1; | |
| 43 | Q1841040 | Болт M10x40 | 2; |
