5. G3R00-1004000/03 Piston & Connecting Rod Assembly

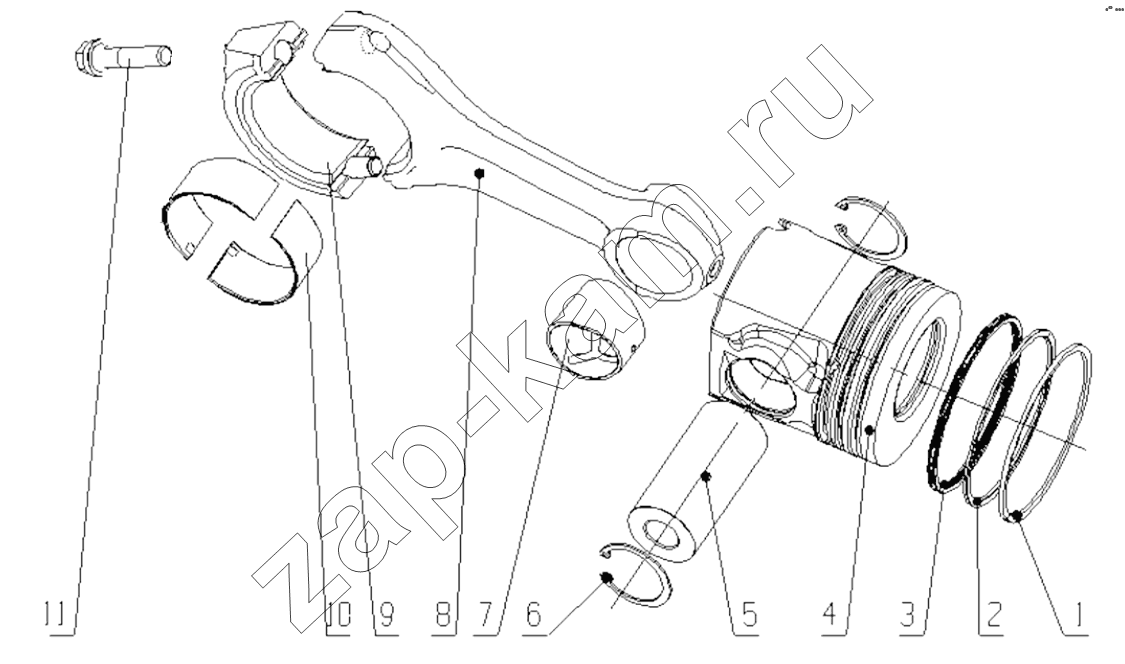

G3R00-1004000/03 Piston & Connecting Rod Assembly
/ Yuchai YC4G190N-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано G0899-1001000/02 Engine Suspension Assembly G2RJA-1002000/03 Cylinder Block Assembly G2RJA-1002200/02 Timing Gear Housing Assembly G2S0B-1003000/01 Cylinder Head & Cylinder Head Cover Assembly G3R00-1004000/03 Piston & Connecting Rod Assembly G2RYB-1005000/01 Crankshaft Vibration Damper Assembly G2K00-1006000/01 Camshaft Assembly G2R00-1007000/01 Valve Train System Assembly G2S0B-1008100/01 & G2K00-1008500/04 Intake Manifold Parts & Intake Connecting Pipe Parts E05FA-1008200/03 E05FA-1008400/03 Exhaust Manifold Parts & Exhaust Manifold Cover Parts G0226-1009000/04 Oil Sump Assembly G2JYB-1028000/02 Oil Dipstick Assembly G08S1-1010000/04 Oil Strainer Assembly G2000-1011000/01 Oil Pump Assembly G2HXB-1012000/01 Oil Filter Assembly G2JYB-1013000/02 Oil Cooler Assembly G2S0B-1014000/02 Crankcase Ventilation Device Assembly G2S0B-1107000/01 Low Pressure Gas Strainer Assembly J5700-1107000/08 Low Pressure Gas Strainer Assembly G2S0B-1113000/03 Gas Supply Device Assembly G2S0B-1118000/03 Turbocharger Assembly D4AYA-1205000/02 Catalytic Convertor Assembly G2RJA-1305000/03 Water Drain Cock Assembly G2S0B-1306000/01 Thermostat Assembly G2S0B-1307000/01 Water Pump Assembly G2S0B-1308000/01 Fan Assembly G2S0B-1600000/03 Power Output Assembly G2S0B-3407000/01 Steering Pump Assembly G2S0B-3509000/02 Pneumatic Air Compressor Assembly G2R00-3705000/03 Ignition System Assembly G2S0B-3701000/01 Alternator Assembly G2HSA-3708000/01 Starter Assembly G2S0B-3823000/02 Control System Assembly G2S0B-3800000/03 Instrument & Sensor Assembly C0000-3904000/01 Nameplate Assembly

1

2

3

3

4

5

6

7

8

9

10

11

Поз.	Артикул		Название детали	Кол-во
1	G6400-1004002C		Air ring	4;
2	G6400-1004003		Кольцо маслосъемное	4;
3	G6400-1004100		Кольцо	4;
3	G6400-1004002C		Air ring	1;
4	G3R00-1004001SF2		Piston	4;
5	G3R00-1004004		Piston pin	4;
6	Q43040		Стопорное кольцо 40	8;
7	G3R00-1004202		Connecting rod bushing	4;
8	G3R00-1004201		Connecting rod shank	4;
9	EG200-1004007		Connecting rod bearing shell	4;
10	G4700-1004019A		Корпус подшипника шатуна	8;
11	G3R00-1004204		Connecting rod bolt	8;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
