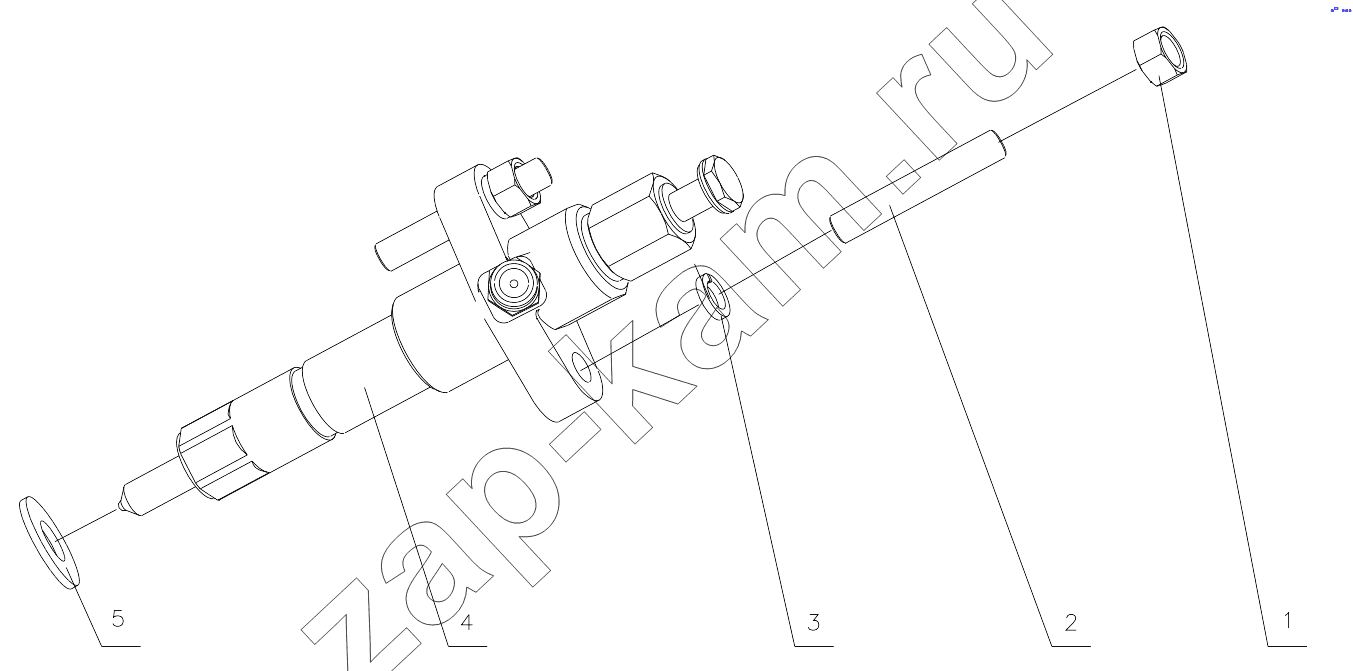

J3200-1112000/05 Injector Assembly
/ Yuchai YC6B125-T11

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано B7615-1002000/07 Cylinder Block Assembly B7615-1002200/18 Gear Housing Part B7605-1003000/09 Cylinder Head and Cylinder Head Cover Assembly 340-1004000/03 Piston Connecting Rod Assembly 1640H-1005000/15 Crankshaft and Flywheel Assembly 630-1006000A/02 Camshaft Assembly 330-1007000/08 Valve Tappet Assembly 1640H-1009000/08 Oil Sump Assembly 1640H-1010000/08 Oil Collector Assembly B3000-1011000/06 Oil Pump Subassembly 1640H-1012000/06 Oil Strainer Assembly 1640H-1013000/17 Oil Radiator Assembly 1640H-1600000/03 Flywheel Housing Assembly 311-1014000/05 Breather Parts 311-1008100/07 and B7615-1008500/07 Intake Pipe and Intake Connecting Pipe Part 640-1008200/07 Exhaust Pipe Part B7615-1201000/04 Muffler Assembly B7615-1104000/08 Fuel Pipeline Assembly B7735-1105000/06 Fuel Filter Assembly B7615-1109000/02 Air Filter Assembly B7606-1111000/08 Fuel Injection Pump Assembly J3200-1112000/05 Injector Assembly B7615-1115000/01 Fuel Shut-off Mechanism Assembly 1640H-1303000/13 Water Outlet Pipe Assembly 6105QA-1305000/08 Water Outlet Valve Assembly 340-1306000/02 Thermostat Assembly 1640H-1307000/06 Water Pump Subassembly 310-1308000/04 Fan Parts 340-3509000/12 Pneumatic Air Compressor Assembly B7615-3701000/03 Generator Assembly 340-3708000/09 Starter Assembly B7615-3800000/01 Instrument Sensor Assembly B9D00-3904000/01 Data Plate

J3200-1112030A

J3200-1112010

J3200-1112030

1

2

3

4

5

Поз.	Артикул		Название детали	Кол-во
J3200-1112030A	J3200-1112030A		Пара форсунки	6;
J3200-1112010	J3200-1112010		Форсунка	6;
J3200-1112030	J3200-1112030		Пара форсунки	6;
1	Q360B08		Гайка М8	12;
2	330-1112041		Болт-шпилька форсунки	12;
3	Q40308		Шайба 8	12;
4	J3200-1112010A		Форсунка	6;
5	630-1112001		Прокладка форсунки	;
