5. J3400-1112000/04 Injector Assembly

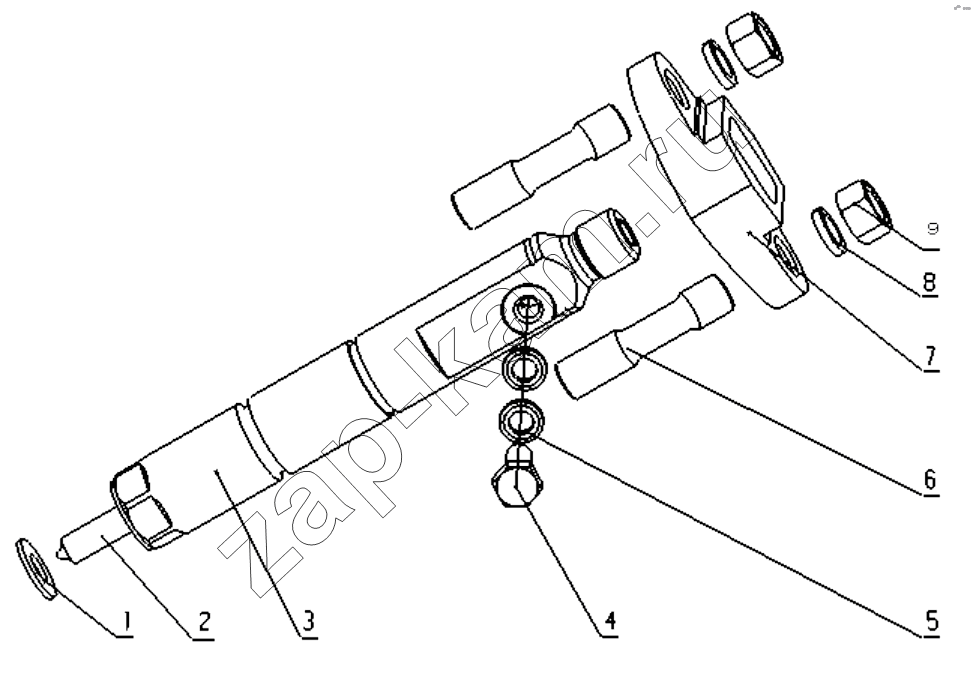

J3400-1112000/04 Injector Assembly
/ Yuchai YC6B125-T20

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано B7626-1001000/02 Engine Suspension Assembly B8600-1002000/10 Cylinder Block Assembly BB0G4-1002200/03 Gear Housing Part B7605-1003000/04 Cylinder Head & Cylinder Head Cover Assembly 340-1004000/02 Piston Connecting Rod Assembly B7637-1005000/03 Crankshaft Vibration Damper Assembly 630-1006000A/03 Camshaft Assembly 330-1007000/07 Valve Tappet Assembly 311-1008100/03 & B7615-1008500/05 Inlet pipe & inlet connecting pipe parts 640-1008200/06 Exhaust Pipe Part 340-1009000/05 Oil Sump Assembly 340-1010000/05 Oil Collector Assembly B3000-1011000/05 Oil Pump Subassembly 1640H-1012000/06 Oil Strainer Assembly B7604-1013000/11 Oil Radiator Assembly 311-1014000/05 Breather Part B7626-1104000/11 Fuel Pipeline Assembly B7735-1105000/06 Fuel Filter Assembly B7652-1109000/03 Air Filter Assembly 340-1111000/11 Fuel Injection Pump Assembly J3400-1112000/04 Injector Assembly B7626-1201000/05 Muffler Assembly B7604-1303000/12 Radiator Water Pipe & Hose Assembly 6105QA-1305000/06 Water Outlet Valve Assembly 340-1306000/03 Thermostat Assembly 311-1307000/04 Water Pump Assembly 310-1308000/05 Fan Parts 313-1600000/03 Power Output Assembly 340-3509000/12 Pneumatic Air Compressor Assembly B7641-3701000/02 Generator Assembly B7641-3708000/03 Starter Assembly BB000-3904000/01 Data Plate

1

2

3

4

5

6

7

8

9

Поз.	Артикул		Название детали	Кол-во	Цена
1	630-1112001		Прокладка форсунки	1;	-
2	J3400-1112050		Устройство наконечника	1;	-
3	J3400-1112050A		Части соответствующии наконечнику	1;	-
4	J3400-1112050B		Части соответствующии наконечнику	1;	-
5	J3400-1112010		Инжектор	1;	-
6	J3400-1112010A		Инжектор	1;	-
7	J3400-1112010B		Инжектор	1;	-
8	Q/YC901-1C0610		Hinge bolt	1;	-
9	Q/YC149-6		Соеденительная изоляционная прокладка 6	2;	-
10	Q1201035TF2		Шпилька M10x35	2;	-
11	A30-1112022A		Стопорная пластина	1;	-
12	Q40310		Шайба 10	2;	-
13	Q340B10		Гайка М10	2;	80 ₽
Шестигранная гайка типа 1 АКПП F12JZ / FastGear / Q340B10 80 ₽ в корзину

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
