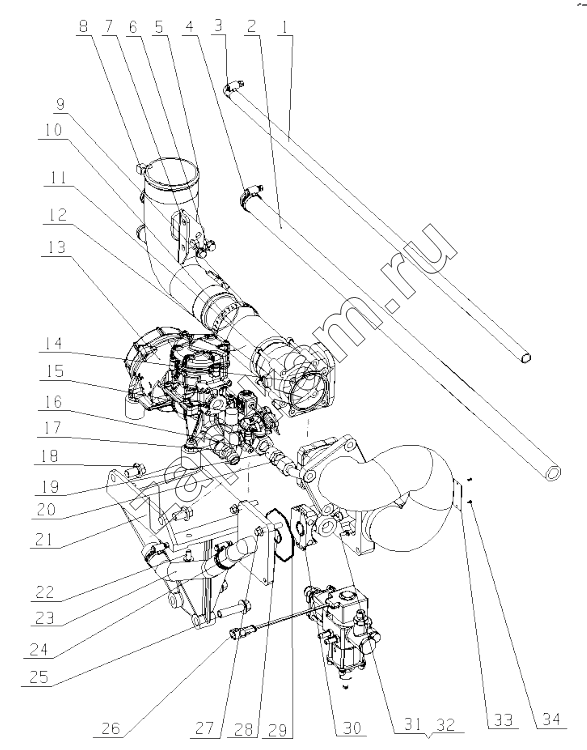

G4R00-1113000/01 Gas Supply Device Assembly
/ Yuchai YC6G260N-50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | M2BD1-1113282 | Шланг впуска горячей воды | 2; | |
| 2 | Q67616 | Хомут обруча | 4; | |
| 3 | J4S00-1113762 | Hose | 1; | |
| 4 | Q67632 | Петля обруча 32 | 3; | |
| 5 | G4R00-1113601 | Throttle valve connecting pipe | 1; | |
| 6 | Q1840815TF2 | Болт M8x15 | 4; | |
| 7 | G3K00-1008116 | Support | 1; | |
| 8 | G3900-1113031 | Компенсационный сустав регулятора давления | 1; | |
| 9 | Q67683 | Петля обруча | 2; | |
| 10 | J4R00-1113642 | Throttle valve connection pipe | 1; | |
| 11 | Q218B0650TF2 | Винт | 4; | |
| 12 | J5700-1113070 | Дроссельная заслонка с электроприводом | 1; | |
| 13 | J4R00-1113F40A | Cfv valve | 1; | |
| 14 | J4H00-1113641 | Electronic throttle gasket | 1; | |
| 15 | J4R00-1113301A | Low pressure fuel shut-off valve | 1; | |
| 16 | Q218B0612 | Винт M6X12 | 4; | |
| 17 | J4R00-1113F02 | Air outlet joint | 1; | |
| 18 | Q1841220TF2 | Bolt | 2; | |
| 19 | G6600-1113C61 | Air outlet joint | 1; | |
| 20 | G6600-1113C60 | Air outlet connecting pipe | 1; | |
| 21 | G4R00-1113F03 | Support | 1; | |
| 22 | Q1840816 | Болт M8x16 | 4; | |
| 23 | G4R00-1113551 | Mixer connecting pipe i | 1; | |
| 24 | G4R00-1113553 | Mixer connecting joint | 1; | |
| 25 | Q1841245TF2 | Болт | 2; | |
| 26 | J4R00-1113240-P64 | High-low presser | 1; | |
| 27 | Q1840840 | Болт M8x40 | 8; | |
| 28 | J4R00-1113546 | Sealing ring | 1; | |
| 29 | J4R00-1113547A | Sealing ring | 1; | |
| 30 | J4R00-1113545B | Mixer inner | 1; | |
| 31 | Q2140412 | Винт M4x12 | 4; | |
| 32 | Q40304 | Шайба 4 | 4; | |
| 33 | J4R00-1113571 | Label | 1; | |
| 34 | YC5-0206 | Bolt | 2; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
