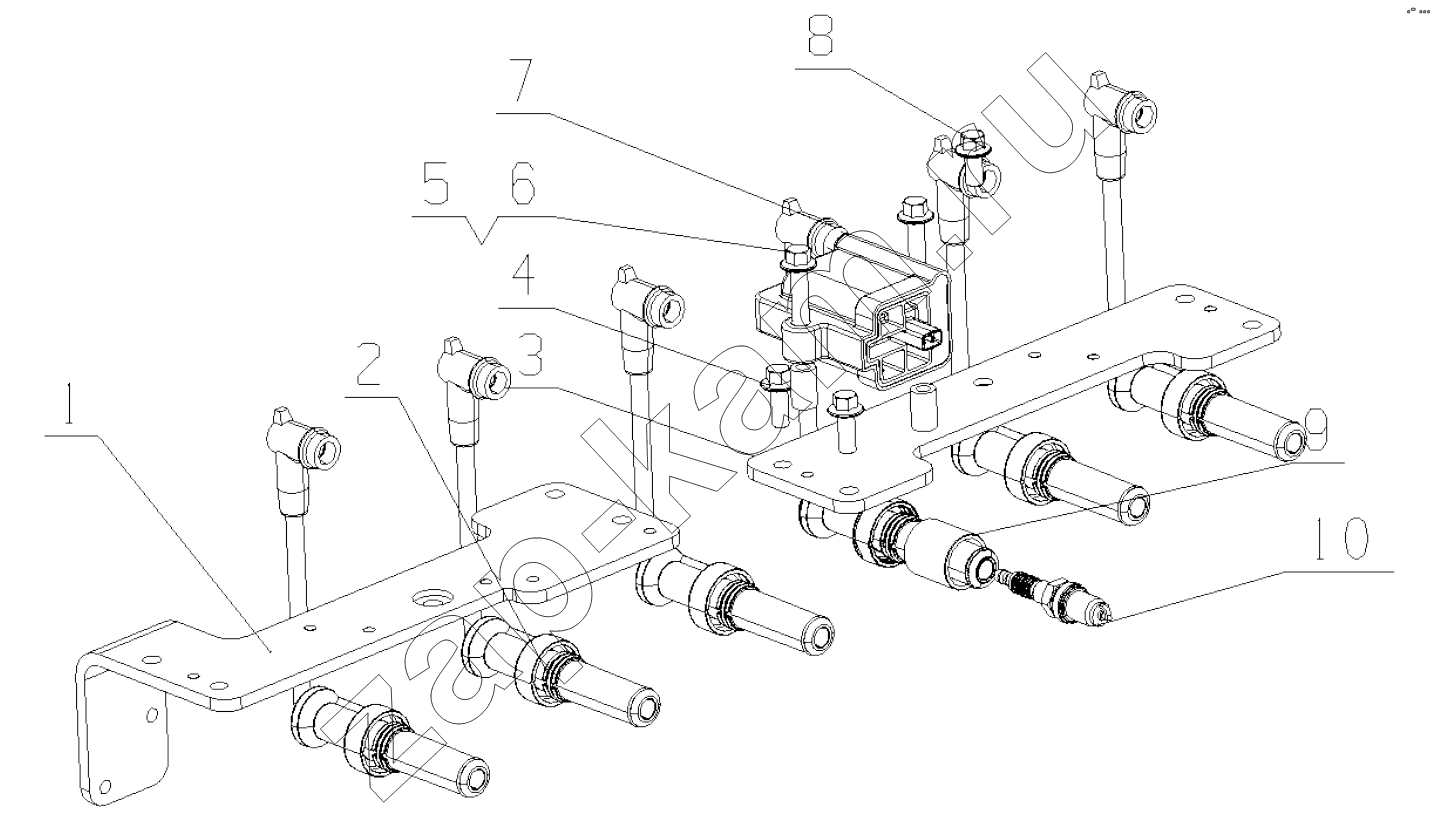

G4R00-3705000/02 Ignition System Assembly
/ Yuchai YC6G260N-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано G5B0N-1001000/02 Engine Suspension Assembly G4R0A-1002000/01 Cylinder Block Assembly G3E00-1002200/04 Timing Gear Chamber Subassembly G3Y00-1003000/02 Cylinder Head and Cylinder Head Cover G3W00-1004000/02 Piston and Connecting Rod G6899-1005000/01 Crankshaft Vibration Damper Assembly G3K00-1006000/03 Camshaft Parts G4200-1007000/05 Valve Train Mechanism Assembly G4R00-1008100/01 Intake Pipe Parts and G4R00-1008500/02 Intake Connecting Pipe Parts G3YYA-1008200/03 Exhaust Pipe Parts and G3YYA-1008400/01 Exhaust Pipe Shield Parts G3R00-1009000/04 Oil Sump Assembly 150-1010000A/05 Oil Strainer G5A00-1011000/06 Oil Pump Assembly G4606-1012000/01 Oil Filter G3R00-1013000/02 Oil Cooler G3X00-1014000/01 Crankcase Ventilator Assembly G4623-1028000/01 Oil Dipstick Subassembly G3K00-1107000/05 Low Pressure Gas Filter Assembly G4R0A-1107000/01 Low Pressure Gas Filter Assembly G4R00-1118900/01 Exhaust gas bypass control valve parts G4R00-1113000/01 Gas Supply Device Assembly G4R0A-1118000/03 Turbocharger Assembly LND00-1205000/02 Catalytic Converter Assembly 231-1305000/10 Water Drain Cock G3LFA-1306000/08 Thermostat Assembly G3RE2-1307000/02 Water Pump Assembly G4789-1600000/03 Power Take-off Mechanism Assembly G3D99-3407000/02 Steering Pump Assembly G4R0A-3509000/01 Pneumatic Air Compressor Assembly G4709-3701000/06 Alternator Assembly G4R00-3705000/02 Ignition System Assembly E24FH-3708000/01 Starter Assembly G4R0A-3823000/03 Control System Assembly E280C-3800000/01 Instruments and Sensors Assembly D4A00-3904000/02 Nameplate

1

2

3

4

5

6

7

8

9

10

Поз.	Артикул		Название детали	Кол-во	Цена
1	G4R00-3705040A		Ignition coil bracket subassembly	1;	-
2	G4R00-3705070		High pressure wire	1;	-
3	J4R00-3705040A		Ignition coil bracket subassembly	1;	-
4	Q1840820TF2		Болт M8x20	8;	-
5	J4A00-3705055		Located space sleeve	12;	-
6	Q1840645		Bolt	12;	-
7	M2D00-3705061		Ignition coil	6;	-
8	Q1840816TF2		Болт M8x16	2;	-
9	D4300-3705042A		Ignition coil sleeve pipe	6;	-
10	M2A00-3705002A		Spark plug	6;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
