J80G0-1104000/03 Supply System Pipeline Assembly
/ Yuchai YC6J125Z-T20

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано J8004-1001000/01 Engine Suspension Assembly J8004-1002000/01 Cylinder Block Assembly J8000-1002030/07 Gear Housing Parts J4000-1003000/11 Cylinder Head & Cylinder Head Cover Assembly J3200-1004000/01 Piston & Connecting Rod Assembly J8004-1005000/01 Crankshaft Vibration Damper Assembly 630-1006000A/02 Camshaft Assembly J3200-1007000/06 Valve Tappet Assembly J8000-1008100/05 Intake Pipe parts J8000-1008200/03 Exhaust Pipe Parts 340-1009000/05 Oil Sump Assembly 630-1028000/01 Oil Dipstick Assembly 340-1010000 /05 Oil Collector Assembly B3000-1011000/05 Oil Pump Assembly J8001-1012000/02 Oil Filter Assembly B8700-1013000/08 Oil Cooler Assembly 6105Q-1014000A/03 Breather Part B7648-1130000/03 Fuel Injection Pump Accessory Assembly J80G0-1104000/03 Supply System Pipeline Assembly B7640-1105000/01 Fuel Filter Assembly J8000-1109000/06 Air Cleaner Assembly J8004-1111000/01 Injection Pump Assembly B7648-1130000/03 Fuel Injection Pump Accessory Assembly J3400-1112000/03 Injector Assembly J7M00-1118000/01 Turbocharger Assembly J8000-1201000/09 Muffler Assembly J8000-1306000/05 Thermostat Assembly 631-1305000/05 Water Drain Cock Assembly J8004-1307000/03 Water Pump Assembly 396-1308000/02 Fan Assembly J8004-1303000/04 Water Pipe & Hose Assembly of Radiator B7648-1600000/04 Power Output Assembly J8000—3509000/11 Pneumatic Air Compressor Assembly J8004-3701000/02 Alternator Assembly B7641-3708000/02 Starter Assembly B7648-3800000/01 Instrument & Sensors Assembly A8C02-3904000/01 Nameplate

630-1104305

630-1104403

6105Q-1104100B

1

2

3

4

5

6

7

8

9

10

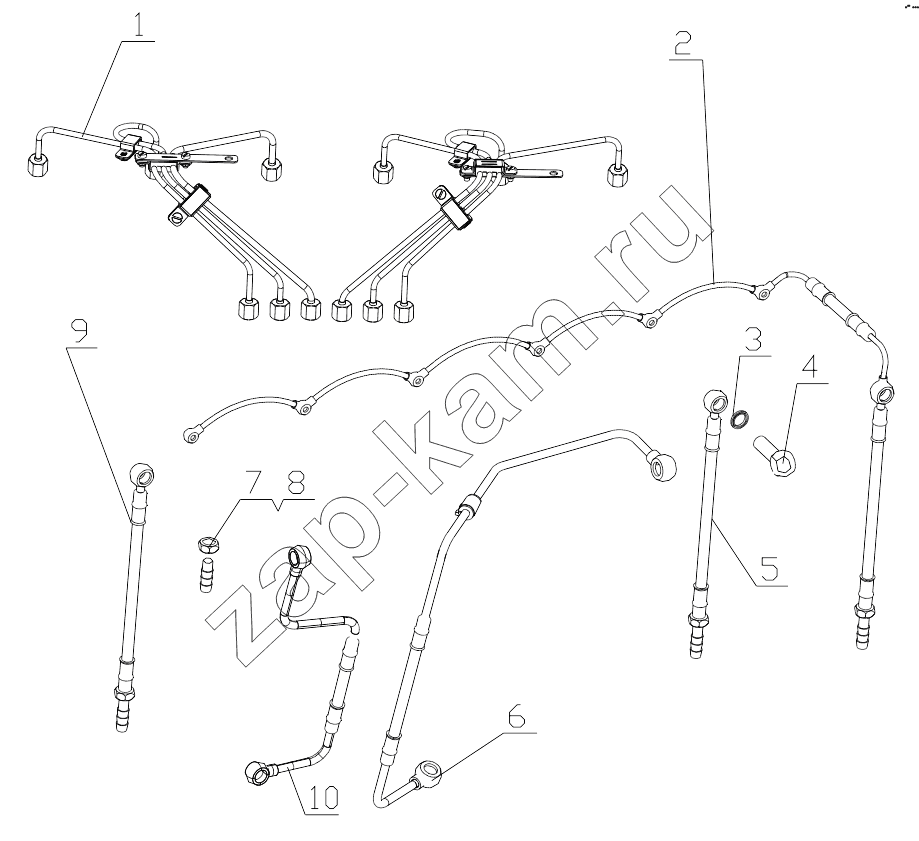

Поз.	Артикул		Название детали	Кол-во	Цена
630-1104305	630-1104305		Дизельный фильтр впускной трубки	1;	-
630-1104403	630-1104403		Топливная трубка	1;	-
6105Q-1104100B	6105Q-1104100B		Впускная трубка ТНВД в сборе	1;	-
1	J8000-1104100A		High pressure pipe parts	1;	-
2	J80G0-1104240		Fuel return pipe subassembly	1;	-
3	Q/YC149-14		Комбинированная уплотнительная шайба 14	4;	-
4	6QA6-1307017		Болт с водяной канавкой	2;	-
5	6105Q-1104090B		Трубка впуска в топливный фильтр в сборе	1;	-
6	695-1104050		Топливная трубка до топливного бака и топливного насоса	1;	-
7	E0200-1118013		Гайка M8	4;	-
8	E0800-1118011		Резьбовая шпилька	4;	-
9	J80G0-1104250		Fuel return connecting pipe subassembly	1;	-
10	B7617-1104400		Fuel pipe from fuel filter to fuel delivery pump	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
