J8AG1-1001000/02 Engine Suspension Assembly
/ Yuchai YC6J125Z-T21

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано J8AG1-1001000/02 Engine Suspension Assembly J8AG1-1002000/01 Cylinder Block Assembly J8000-1002030/10 Gear Housing Parts J80G1-1003000/02 Cylinder Head and Cylinder Head Cover Assembly J3200-1004000/01 Piston and Connecting Rod Assembly J8004-1005000/01 Crankshaft Vibration Damper Assembly 630-1006000A/02 Camshaft Assembly J3200-1007000/07 Valve Tappet Assembly J8AG1-1008100/02 Intake Pipe parts J80GM-1008200/01 Exhaust Pipe Parts 641-1009000/04 Oil Sump Assembly 1640H-1010000/05 Oil Collector Assembly B3000-1011000/05 Oil Pump Assembly J8001-1012000/03 Oil Filter Assembly J8004-1013000/08 Oil Cooler Assembly 311-1014000/05 Breather Part 630-1028000/01 Oil Dipstick Assembly J8AG1-1104000/03 Supply System Pipeline Assembly J8006-1105000/01 Fuel Filter Assembly J8000-1109000/09 Air Cleaner Assembly J8004-1111000/01 Injection Pump Assembly J3400-1112000/04 Injector Assembly J8004-1115000/01 Fuel Cut-off Institution Assembly J7M00-1118000/02 Turbocharger Assembly B7B06-1130000/02 Fuel Injection Pump Accessory Assembly J80GM-1201000/01 Muffler Assembly J8004-1303000/09 Water Pipe and Hose Assembly of Radiator 631-1305000/06 Water Drain Cock Assembly J8000-1306000/11 Thermostat Assembly J80G1-1307000/03 Water Pump Assembly 396-1308000/02 Fan Assembly J8AG1-1600000/01 Power Output Assembly J8000—3509000/12 Pneumatic Air Compressor Assembly J8004-3701000/06 Alternator Assembly B7641-3708000/03 Starter Assembly B7648-3800000/01 Instrument and Sensors Assembly J8A00-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

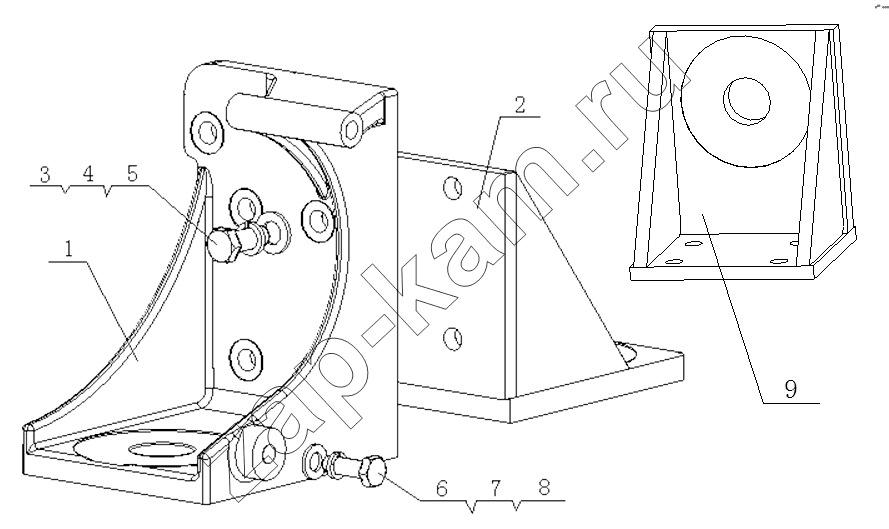

Поз.	Артикул		Название детали	Кол-во	Цена
1	J8004-1001001		Front left foot	1;	-
2	B7648-1001140A		Front right bracket subassembly	1;	-
3	Q150B1230		Болт M12x40	16;	-
4	Q40312		Шайба 12	16;	-
5	Q40112		Шайба 12	16;	-
6	Q150B1030		Болт	1;	-
7	Q40310		Шайба 10	1;	-
8	Q40110		Шайба 10	1;	-
9	B7652-1001440		Rear left bracket subassembly	2;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
