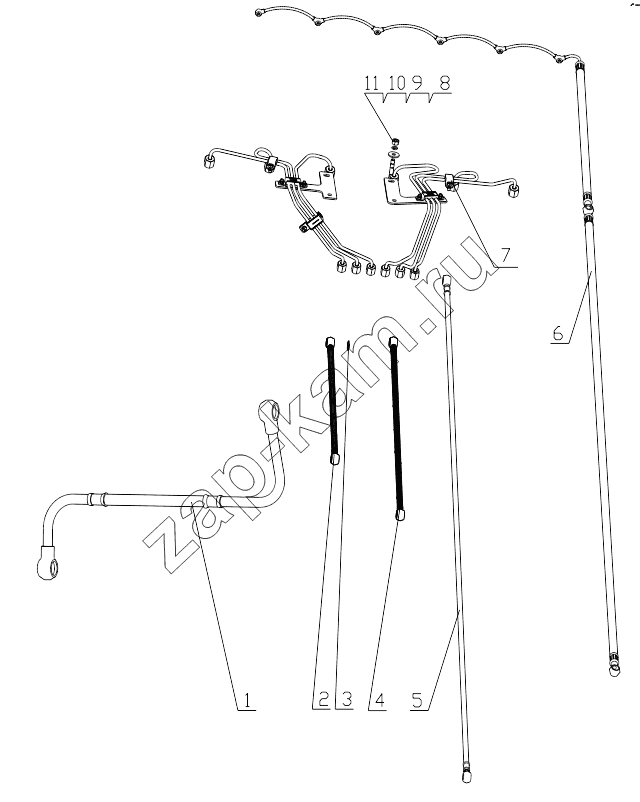

J8201-1104000/01 Fuel Supply Pipeline Assembly
/ Yuchai YC6J125Z-T22

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано J8000-1002000/11 Cylinder Block Assembly J8000-1002030/11 Gear Housing Parts J80G1-1003000/03 Cylinder Head & Cylinder Head Cover Assembly J3200-1004000/03 Piston & Connecting Rod Assembly J8200-1005000/04 Crankshaft Vibration Damper Assembly 630-1006000A/02 Camshaft Assembly J7M00-1007000/02 Allot Air Organization Assembly J8000-1008100/08 Intake Manifold Parts J8000-1008200/06 Exhaust Manifold Parts 1640H-1009000/05 Oil Sump Assembly 1640H-1010000/07 Oil Strainer Assembly B3000-1011000/05 Oil Pump Assembly J80GE-1012000/01 Oil Filter Assembly J8201-1013000/15 Oil Cooler Assembly 311-1014000/05 Breather Parts 630-1002080/02 Oil Dipstick Assembly J8201-1104000/01 Fuel Supply Pipeline Assembly J8006-1105000/01 Fuel Filter Assembly J80GN-1109000/01 Air Cleaner Assembly J8000-1111000/05 Injection Pump Assembly J3400-1112000/04 Fuel Injector Assembly B7615-1115000/01 Fuel Shut-off Mechanism Assembly J7M00-1118000/02 Turbocharger Assembly J8000-1201000/18 Muffler Assembly B7741-1303000/04 Radiator Water Pipe and Hose Assembly J5600-1305000/01 Water Drain Assembly J8200-1306000/14 Thermostat Assembly J80G7-1307000/03 Water Pump Assembly B7742-1308000/01 Fan Assembly J80G7-1600000/01 Power Output Assembly J8001-3509000/07 Pneumatic Air Compressor Assembly J8201-3701000/02 Alternator Assembly 340-3708000/10 Starter Assembly J8201-3800000/02 Instrument & Sensor Assembly B0000-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

10

11

Поз.	Артикул		Название детали	Кол-во
1	B7617-1104400		Fuel pipe from fuel filter to fuel delivery pump	1;
2	6105Q-1104100B		Впускная трубка ТНВД в сборе	1;
3	Q/YC149-14		Комбинированная уплотнительная шайба 14	12;
4	6105Q-1104090B		Трубка впуска в топливный фильтр в сборе	1;
5	B7604-1104050		Fuel pipe from fuel tank to fuel injection pump	1;
6	J8201-1104240		Oil return pipe assembly	1;
7	J8000-1104100A		High pressure pipe parts	1;
8	E0200-1118013		Гайка M8	4;
9	Q40308		Шайба 8	4;
10	Q40208		Шайба 8	4;
11	E0800-1118011		Резьбовая шпилька	4;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
