5. J3C00-1014000/04 Crankcase Ventilation Device Assembly

J3C00-1014000/04 Crankcase Ventilation Device Assembly
/ Yuchai YC6J210N-52

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано J3FSA-1002000/02 Cylinder Block Assembly J3FSA-1002200/04 Gear Housing Part J3EMA-1003000/03 Cylinder Head and Cylinder Head Cover Assembly J3D00-1004000/04 Piston Connecting Rod Assembly J3FSA-1005000/03 Crankshaft Vibration Damper Assembly J3D00-1006000/02 Camshaft Assembly J3C00-1007000/01 Valve Train System Assembly J4R00-1008100/07 and J3C00-1008500/03 Intake Manifold Part J3601-1008200/01 Exhaust Pipe Parts J3F0A-1009000/03 Oil Sump Assembly J3C9A-1028000/01 Oil Dipstick Part J3600-1010000/12 Oil Collector Assembly B78C0-1011000/01 Oil Pump Subassembly B3000-1012000/06 Oil Strainer Assembly J53AA-1013000/17 Oil Radiator Assembly J3C00-1014000/04 Crankcase Ventilation Device Assembly J3FSA-1107000/02 Low-pressure gas filter Assembly J3ESD-1113000/02 Gas Supply Device Assembly J3CSA-1118000/01 Turbocharger Assembly CT-GC06RSBN5-0036/01 Catalytic Converter Assembly J540A-1303000/08 Water Pipe and Hose of Radiator Assembly 631-1305000/08 Water Drain Cock Assembly J540D-1306000/08 Thermostat Assembly J4TLA-1307000/06 Water Pump Assembly J54SA-1600000/01 Power Output Assembly J4VSA-3407000/01 Steering Pump Assembly J3FSC-3509000/01 Pneumatic Air Compressor Assembly J6298-3708000/01 Starter Assembly J4TLA-3701000/04 Generator Assembly J3ESB-3823000/03 Control System Assembly J3C00-3705000/02 Ignition System Assembly J3601-3800000/03 Instrument and Sensor Assembly G4RYA-3904000/01 Data Plate

1

2

3

4

5

6

7

8

9

10

11

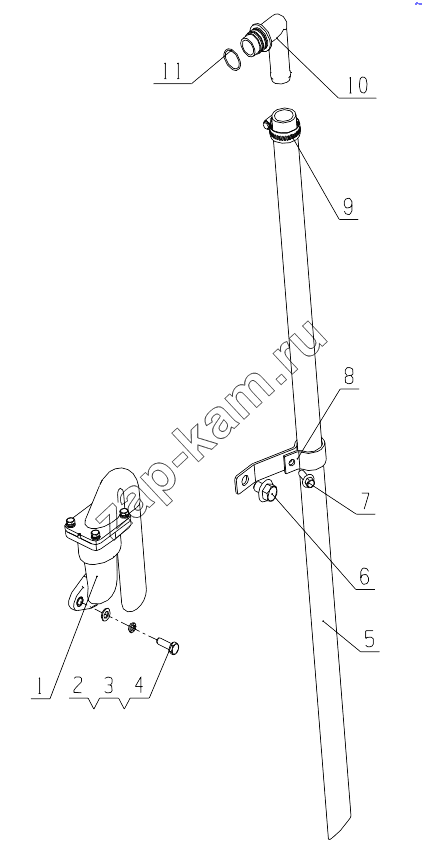

Поз.	Артикул		Название детали	Кол-во
1	6105Q-1014010A		Сапун в сборе	1;
2	Q150B0825		Болт M8x25	2;
3	Q40308		Шайба 8	2;
4	Q40108		Шайба 8	2;
5	J3C00-1014003		Ventilation pipe	1;
6	Q1841216		Болт M12x16	1;
7	Q1840815		Болт M8x15	1;
8	430-1003140		Сварной зажим трубы II	1;
9	Q67632		Петля обруча 32	1;
10	M2A00-1003244		Breathing pipe	1;
11	YC208-A02500F		O ring	2;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
