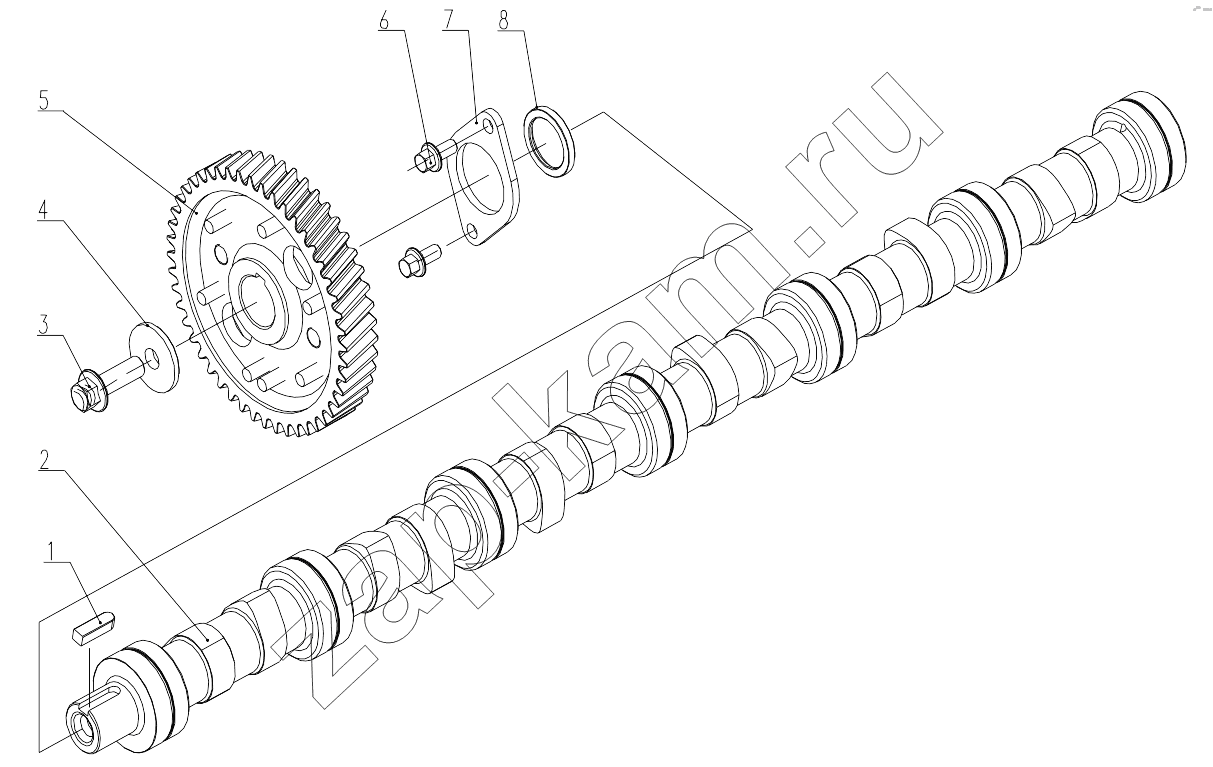

J3D00-1006000/02 Camshaft Assembly
/ Yuchai YC6J210N-52

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано J3FSA-1002000/02 Cylinder Block Assembly J3FSA-1002200/04 Gear Housing Part J3EMA-1003000/03 Cylinder Head and Cylinder Head Cover Assembly J3D00-1004000/04 Piston Connecting Rod Assembly J3FSA-1005000/03 Crankshaft Vibration Damper Assembly J3D00-1006000/02 Camshaft Assembly J3C00-1007000/01 Valve Train System Assembly J4R00-1008100/07 and J3C00-1008500/03 Intake Manifold Part J3601-1008200/01 Exhaust Pipe Parts J3F0A-1009000/03 Oil Sump Assembly J3C9A-1028000/01 Oil Dipstick Part J3600-1010000/12 Oil Collector Assembly B78C0-1011000/01 Oil Pump Subassembly B3000-1012000/06 Oil Strainer Assembly J53AA-1013000/17 Oil Radiator Assembly J3C00-1014000/04 Crankcase Ventilation Device Assembly J3FSA-1107000/02 Low-pressure gas filter Assembly J3ESD-1113000/02 Gas Supply Device Assembly J3CSA-1118000/01 Turbocharger Assembly CT-GC06RSBN5-0036/01 Catalytic Converter Assembly J540A-1303000/08 Water Pipe and Hose of Radiator Assembly 631-1305000/08 Water Drain Cock Assembly J540D-1306000/08 Thermostat Assembly J4TLA-1307000/06 Water Pump Assembly J54SA-1600000/01 Power Output Assembly J4VSA-3407000/01 Steering Pump Assembly J3FSC-3509000/01 Pneumatic Air Compressor Assembly J6298-3708000/01 Starter Assembly J4TLA-3701000/04 Generator Assembly J3ESB-3823000/03 Control System Assembly J3C00-3705000/02 Ignition System Assembly J3601-3800000/03 Instrument and Sensor Assembly G4RYA-3904000/01 Data Plate

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во	Цена
1	GB/T1096-C0828		Шпонка С8x28	1;	-
2	J3C00-1006001		Camshaft	1;	-
3	Q1841235TF2		Болт M12x35	1;	-
4	630-1006019		Шайба	1;	-
5	J4X00-1006070		Camshaft timing gear component	1;	-
6	Q/YC207-0816		Болт	2;	-
7	6105Q-1006016		Упорная прокладка кулачкового вала	1;	-
8	6105Q-1006017		Распорное кольцо ведомой шестерни	1;	-
