5. A0100-1009000/05 Oil Sump Assembly

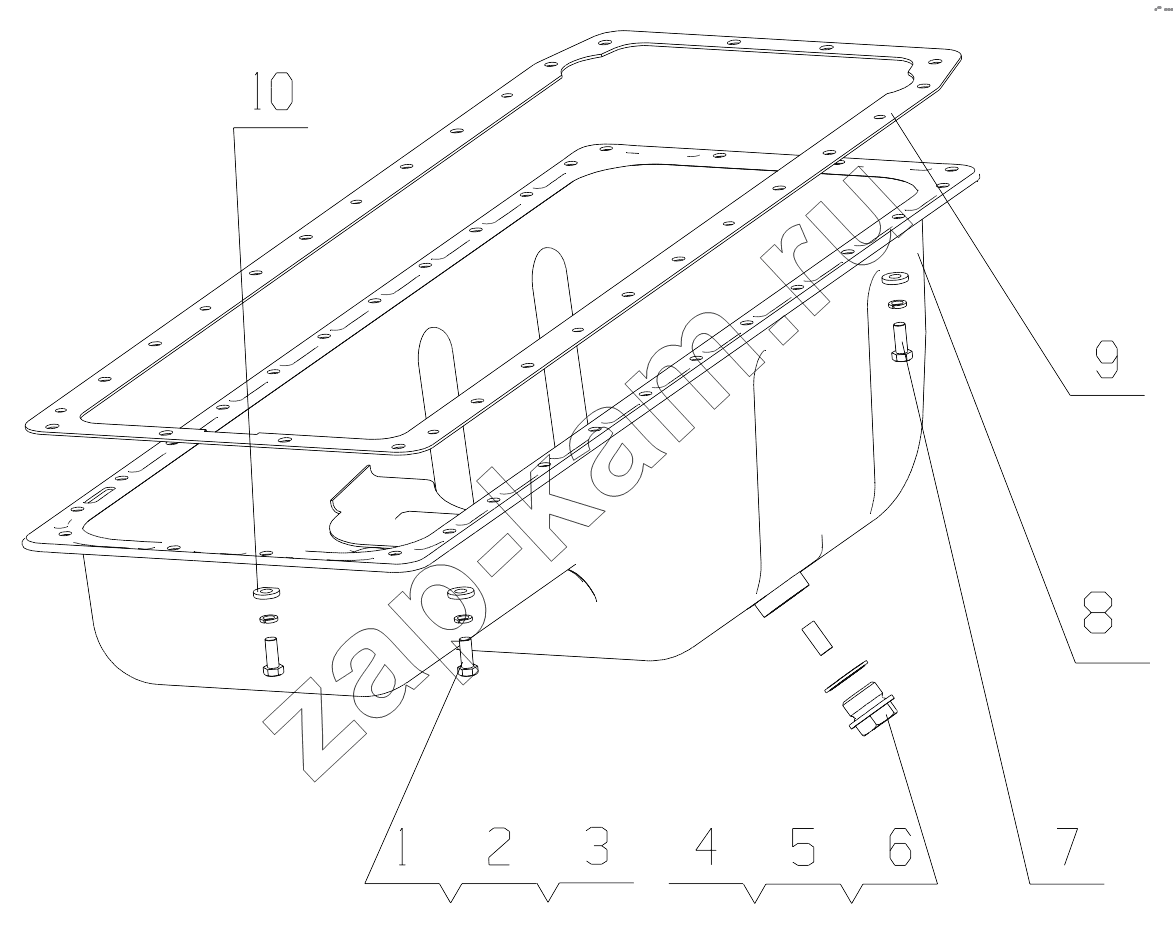

A0100-1009000/05 Oil Sump Assembly
/ Yuchai YC6J220-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано J63HA-1001000/01 Engine Suspension Assembly J01QA-1002000/02 Cylinder Block Assembly J01QA-1002200/05 Gear Housing Parts J0200-1003000/01 Cylinder Head AND Cylinder Head Cover Assembly J0100-1004000/05 Piston AND Connecting Rod Assembly J6000-1005000/02 Crankshaft Vibration Damper Assembly J5600-1006000/06 Camshaft Assembly J5600-1007000/05 Valve Train Assembly J5R00-1008100/06 Intake Manifold Parts AND J5J9A-1008500/01 Intake Connecting Pipe Parts J61SA-1008200/06 Exhaust Manifold Parts AND J61SA-1008400/01 Exhaust Pipe Shield Parts A0100-1009000/05 Oil Sump Assembly A0200-1010000/04 Oil Strainer Assembly A0200-1011000/02 Oil Pump Assembly A3100-1012000/02 Oil Filter Assembly A3519-1013000/04 Oil Cooler Assembly J6100-1014000/01 Crankcase Ventilation Device Assembly J62QA-1028000/02 Oil Dipstick Assembly J5600-1104000/32 Fuel Supply Pipeline Assembly J63SB-1105000/02 Fuel Filter Assembly J5600-1111000/06 Fuel Injection Pump Assembly J0100-1112000/03 Fuel Injector Assembly J5LSB-1118000/01 Turbocharger Assembly 631-1305000/08 Water Drain Assembly J030M-1306000/01 Thermostat Assembly A0100-1307000/02 Water Pump Assembly J40KC-1600000/04 Power Output Assembly J03SA-3407000/02 Steering Pump Assembly J01SB-3509000/04 Pneumatic Air Compressor Assembly J620C-3701000/11 Generator Assembly G6098-3708000/01 Starter Assembly J5LSD-3823000/02 Controlling System Assembly L540C-3904000/01 Data Plate LA1YA-3800000/01 Instrument and Sensor Assembly

1

2

3

4

5

6

7

8

9

10

Поз.	Артикул		Название детали	Кол-во
1	Q/YC1820820TF2		Бoлт M8x20	26;
2	Q40308		Шайба 8	30;
3	6105Q-3509013		Шайба	26;
4	6105Q-1009032A		Магнит	1;
5	Q/YC149-27		Комбинированная уплотнительная шайба 27	1;
6	6105Q-1009031C		Сливная пробка	1;
7	Q/YC1820816TF2		Bolt	4;
8	A30-1009040C		Сборочный узел поддона картера	1;
9	B7304-1009001		Oil sump gasket	1;
10	D30-1009102A		Шайба	4;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
